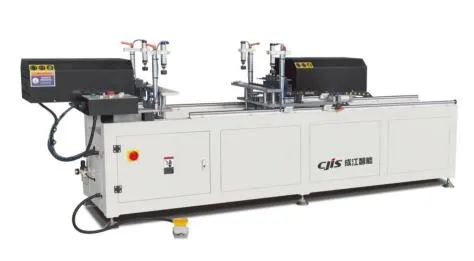

Aluminum Window High-Efficiency Intelligent Hinge Drilling Machine

Product Description

Product Description
1,Customizable eight-hole model
2,Suitable for efficient drilling of hinge installation holes, support holes, and four-link holes for aluminum doors and windows (such as outward-opening windows, top-hung windows).
3,Can simultaneously process 10 holes on both sides with one clamping, achieving high processing efficiency.
4,Both drill heads can work independently or simultaneously.
5,Utilizes high-precision multi-axis drilling packages from Taiwan, with key rotating parts using precision imported bearings to ensure processing accuracy and service life.
6,The drill feed on the linear guide rail is driven back and forth by a cylinder, with a buffer at the front end for smooth feed and positioning.
7,The machine is equipped with an operating platform in front of the bed, with electrical control components mounted on the platform. After placing the workpiece on the worktable, the operator simply needs to follow the operation procedures and press the buttons for the machine to complete clamping, cutting, tool return, and release processes.
Detailed Photos


Product Parameters

Input power supply:	380V/50Hz
Input power:	3.0kW
Working air pressure:	0.5~0.8MPa
Number of drill heads:	10
Processing width size:	300×2,000mm
Drilling diameter:	Ф1~7mm
Minimum hole spacing:	22mm
Maximum hole spacing:	380mm
Spindle speed:	1,400rpm
Dimensions:	3,100×1,200×960mm
Weight:	Approximately 750kg
