4CH CCTV Recorder H. 265 720p 1080P SD Card Mini HD Car Mdvr GPS Ai Safety Early Warning System 4channels Mobile DVR 4G WiFi Adas DMS Bsd
| US$180.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
MS-TD301
Interface
BNC\VGA\HDIM
Operating System
Linux
Number of Supported Hard Disk
1
Compression Format
H.265
Certification
FCC, CE
Warranty Time
One Year
Stream Type
Video Flow
Input Channels
4
Interface Display
Four Images
Brand
Mingshang
Transport Package
Carton
Specification
51*41*41
Trademark
MINGSHANG
Origin
China
HS Code
8528591090
Production Capacity
50000PCS/Year
Product Description
Product description

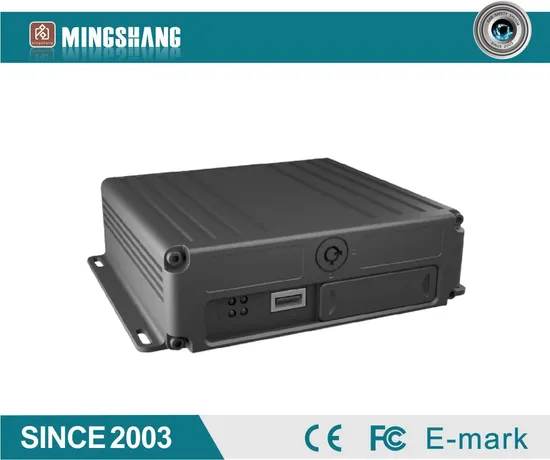

MS-TD301 is a cost-effective, functionally expandable 4Gvehicle-mounted terminal integrating video surveillance, driving record and active safety monitoring. MS-TD301 uses dual SD cards for recording, with 1080P, 720P, D1, HD1, CIF and other resolutions. It uses a high-speed processor and embedded operating system, combined with advanced H.265 video compression/decompression technology, mobile communications, and positioning technology, to achieve video recording, car driving information recording and wireless data upload, central remote monitoring, remote management, vehicle data collection and analysis, driving behavior analysis, sound and light alerts of dangerous driving behaviors, real-time monitoring of the state of vehicles and drivers, avoiding fatigue driving and speeding, reducing accident risks, and ensuring vehicle driving safety.
Product Description
| Accessory name | Specifications | Quantity |
| DVR camera | 1080P/720P/D1 standard interface | 2 |
| IPC camera | 1080/720P RTSP protocol | 1 |
| Audio and video extension cable | Cable length 3m | 1 |
| IPC extension cable | Cable length 0.2m | 1 |
| IPC extension cable | Cable length 3m | 1 |
| Video output cable | Cable length 0.2m | 1 |
| LCD display | Seven inches, resolution 800 x 480, standard interface | 1 |
| Temperature Sensor | ET-TS101 | 1 |
| Panic button | alarm switch, 3m extension cable | 1 |
| Basic functions | GPS function | Real-time positioning | Provide real-time location, speed and other positioning information |
| Sleep function | 4 minutes after ACC OFF, it goes to sleep, and restarts at 2 hour intervals | ||
| 4G function | SMS function | Send and receive SMS normally, use SMS to configure and query various parameters | |
| DNS | After the domain name is logged on to the platform, it will automatically resolve the domain name, and automatically use the resolved IP to connect to the platform if the domain name is unavailable. | ||
| Audio and video | Audio and video access | Support 4-channel audio and video access, support MIC | |
| Video output | Support 1 CVBS output | ||
| Video | Support dual stream recording and upload | ||
| Server connection | Positioning report | Support SMS and platform to modify the reporting interval | |
| Server roll call | Report the current location point information quickly after naming | ||
| BSD re-transmission | Support saving location information when there is no communication, and retransmit to the server when communication is restored | ||
| Multi-packet data upload | Support image upload and driving data upload | ||
| Audio and video | (1) Support video real-time preview (2) Support recording video download and playback (3) Support main stream and sub stream | ||
| Mileage statistics | Report the mileage of vehicles | ||
| RTC clock | Timing function | In the case of GPS not positioning, the 24-hour timing error is less than 10 seconds | |
| Time adjustment function | GPS will perform system time calibration for the first time positioning | ||
| Alarm function | Emergency alarm | Press the emergency alarm button to trigger an emergency alarm | |
| Speeding alarm | The speed limit value and duration can be configured by SMS and platform | ||
| Fatigue driving alarm and early warning | The fatigue driving duration and rest time can be configured by SMS and the platform | ||
| Positioning module antenna open and short circuit alarm | The module automatically detects that the antenna is open or disconnected, and the terminal will also send an alarm message to the user and the server | ||
| Main power supply low voltage alarm | Support 24V 21.5V low voltage alarm and 12V 10.8V low voltage alarm | ||
| Main power failure alarm | 10 seconds to detect terminal power failure alarm | ||
| In and out of the area | Support up to 32 areas and up to 16-side polygons | ||
| Route and deviation alarm | Support 32 routes, each route supports up to 20 turning points | ||
| Peripheral interface | Vehicle signal collection | Support 4 channel signal acquisition | |
| 1 expansion port | Standard RS232 interface | Adaptive | |
| LED indicator | Work status indication | 4 indicator lights | |
| Intercom/TTS speaker | Intercom and speaker interface, alarm and various text and voice announcements | ||
| Video interface | Video/audio interface | Aviation head interface | 4-channel AHD video input interface; video 1/video 2 can be used as DSM and ADAS input |
| Extension ports | USB interface | Front USB interface | |
| IPC/LAN interface | Use adaptor to connect to aviation head socket | ||
| Video output interface | CVBS output, use adaptor to connect to aviation head socket | ||
| Storage function | Parameter class | System parameter storage | Storage of device working parameters |
| BSD data | Blind zone data stored in primary and secondary links | Can store 10,000 pieces of BSD data | |
| Maintenance function | SMS configuration function | Installation configuration information | Support configuration of terminal parameters via SMS |
| Remote upgrade | Central server upgrade | Support to upgrade the terminal program through the server | |
| Installation calibration | Active safety calibration | Support general calibration for DSM, ADAS and parameter configuration | |
