High-Performance Electric and Hybrid Boom Lifts for Efficient Work Jibplus®

High-Performance Electric and Hybrid Boom Lifts for Efficient Work Jibplus®

US$29,800.00-60,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
JLG E400A E400AJP
Carrying Capacity
227kg
Moves
Moving
Driven Type
Rack&Pinion
Running Mode
Moving
Feature
Explosion-Proof, Insulating
Certification
GS, CE, RoHS, ISO 9001
Collection Height
1.97 M
Wheelbase
2.01 M
Climbing Degree (4-Wheel Drive)
30% of The Total
Platform Dimensions
0.76 X 1.22 M
Drive Motor
Dual Electric Traction AC Motors
Transport Package
Nude Packing
Specification
18M
Trademark
JLG E400A E400AJP
Origin
China
HS Code
8704224000
Production Capacity
10000 Pieces Per Month

Product Description


Pay Attention please!
Our company mainly sells used sanitation trucks! Different prices for different years! Please contact us for details!
Product Description

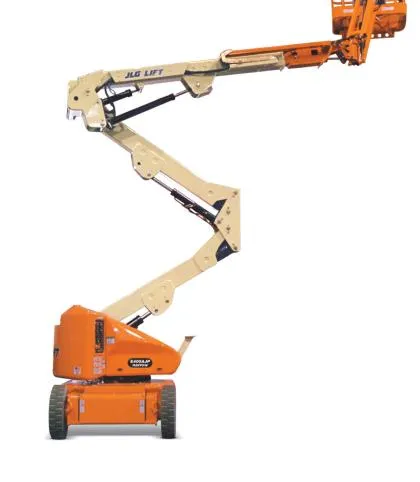

High-Performance Electric and Hybrid Boom Lifts for Efficient Work JibPLUS®
All-weather high performance
The E400 Series offers industry-leading performance while being environmentally friendly. It gives you the reach you need and the versatility to maneuver efficiently in tight spaces.
Main features
Wider range of indoor/outdoor uses
With the automatic traction control system, the two drive wheels work independently, improving traction on uneven ground.
Exceedingly high
Exclusive JibPLUS® small arm option for edge-to-edge horizontal movement over a 180° range.
Free access to confined areas
Narrow models are equipped with a compact chassis with a width of only 1.5 meters, making it easier to get in and out of confined work areas.

E400 Series Specifications
E400A Narrow E400AJP Narrow
Platform height 12.19 meters 12.19 meters
Horizontal reach 6.45 meters 6.83 meters
Spanning height 6.55 meters 6.55 meters
Turntable rotation 360° non-continuous 360° non-continuous
Platform Load - Unrestricted Load 227 kg 227 kg
Platform Slewing 180° Hydraulic 180° Hydraulic
Small arm (bending range) - 144° (+84, -60) Vertical
(JibPLUS®) - 180° Horizontal
A. Platform Dimensions 0.76 x 1.22 meters 0.76 x 1.22 meters
B. Overall Width 1.5 meters 1.5 meters
C. Swing 10 cm 10 cm
D. Collection Height 1.97 meters 1.97 meters
E. Collection Length 5.51 meters 6.71 meters
F. Wheelbase 2.01 meters 2.01 meters
G. Ground Clearance 13 centimeters 13 centimeters
Weight* 5,942 kg 6,759 kg
Ground Load Capacity** 6.6 kg/cm² 13.0 kg/cm²
Travel speed (2-wheel drive) 7.2 km/h 7.2 km/h
Climbing speed (2-wheel drive) 30% 30%
Maximum Allowable Tilt Angle
Turning radius (inside) 86 cm 86 cm
Turning radius (outside) 3.15 meters 3.15 meters
Tire size/type (front) 22 x 6 x 17.75 non-marking tires 22 x 6 x 17.75 non-marking tires
Tire size/type (rear) 25 x 7 x 12 non-marking tires 25 x 7 x 12 non-marking tires
Electrical system 48 Vdc 48 Vdc
Battery 8 x 6V, 370Ah 8 x 6V, 370Ah
Drive Motor Dual electric traction AC motors Dual electric traction AC motors
Brake Spring Pressurized Multi-Disc Spring Pressurized Multi-Disc
Hydraulic pump/motor Permanent magnet motor/gear pump Permanent magnet motor/gear pump
Hydraulic oil tank 15.14 liters 15.14 Liters 15.14 Liters

*Some options or national standards may result in an increase in overall vehicle weight.
**Ground load capacity applies to standard tires.
When optional equipment is added, the relevant specifications may be changed to comply with the relevant national standards.
SIZES
Working Distance Diagram

FAQ
1. Q: How about the quality of your trucks?
A: Wuhan Ring Valley Environment mainly sells medium and high-end sanitation trucks, no matter the chassis, engine and so on are all belong to the top equipment. Our trucks get ISO 9001: 2008 and CCC, B&V and other related certificates.
2. Q: Is there any advantages of your price?
A: We don't only have new truck but a large selection of used trucks. Different products in different years are available at different prices. We'll be sure to help you find the best vehicle in suitable price.
3. Price term: FOB, CIF.
4. Payment: 30% deposit after order confirmation, 70% balance should be paid before delivery. All are by T/T, L/C.
5. Delivery time: 7-20 working days after payment is received.
6. Standard Steering: Left-hand drive, if you need Right-hand drives, please inform us, we will make special order for you.
If you have any other questions, please feel free to contact us at any time.
