Intelligent High Efficiency Drilling & Tapping Machine Zs-40dps

Product Description

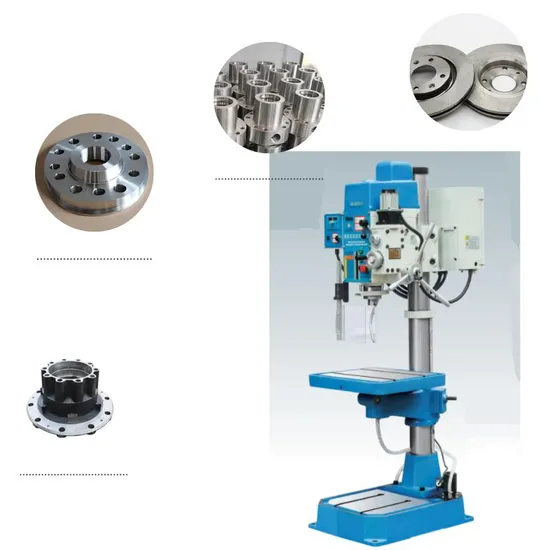

Intelligent High Efficiency Drilling & Tapping Machine ZS-40DPS
Characters:
Spindle system:the spindle head is driven by oil pressure,whichhelps to smooth the feeding.The current control valve, which isvery easy to handle,may help to adjust the feeding rate. Variousspindle heads and tapping heads are available uponrequest.
Oil hydraulic sysem:due to the vane pump with wariable capacity.it is of low noise and low heat, and runs smoothly.
The high current electro magnetic valve ensures its stable andsmooth running.Electruc control system: the main electric elem-ents are Telemecanique(a French brand)elements. Made per int-ernational uniform standard, its compatibility and exch angea-bility are very high. The PLC is applied to the multi-spindlesystem, with which, it is of low failure, easy maintenance andchangeabilty.
Various drilling heads and tapping heads are available uponrequest.
Various air clamps, oil pressureclamps, air cylinders and oil-cylinders are available upon request.
The spindle speed is adjustable and specific designs for airand oil pressure clamps are available upon actual request.
Specification:

Model No.	ZS-40DPS
Item No.
Moving
Max.drilling capacity	40 mm
Max.tapping capacity	M32
Diameter of column	115 mm
Spindle
Max.spindle travel	110 mm
Distance spindle axis to column surface	261.5 mm
Max,distance spindle nose to worktable	745 mm
Max,distance spindle nose to base	1245 mm
Spindle taper	MT4
Spindle speed	50~250, Empty gear,250~2000 r/min
Feed speed rate	20~203 mm/min
Dimension of worktable	540x470 mm
Dimension of base	635x460 mm
Other
Overall height	1810 mm
Packing dimension	720x740x1910 mm
Standard accessories	Special accessories
Drill chuck ф 16mm	Milling chuck
M30 Tap Chuck	Angle vice
Taper sleeve	Safety guard
Arbor	Stand
Drift
Wrench
Drawbar

Specification:
FAQ
1.How can I choose the most suitable machines?
Please advice your technical requirements, or workpiece information or just send drawing, we can provide most suitable machine model information to you.
2.What's your main products of your company?
We specialized in all kinds of metal-working machines, such as CNC Lathe Machine, CNC Milling Machine, Vertical Machining Center, Lathe Machines, Drilling Machine, Radial Drilling Machine, Sawing Machine, Shaper machine, laser and so on.
3.Where is your factory located?
Production bases are in Canton, Jiangsu and Shandong.
4.What is your trade terms?
FOB , CFR and CIF all acceptable.
5.What's the MOQ?
1 SET.
6.Are you a manufacturer?
By collaborating of more than 10 years with selected manufacturers that possess different product advantages, integrating foreign demands, we have built out full range high quality product line which enjoy better pricing and lead time while we can execute production monitor and quality assurance, and we provide comprehensive high-quality pre-sales and after-sales services.
7.What's the Payment Terms?
T/T, 30% initial payment when order, 70% balance payment before shipment Irrevocable LC at sight.
8.How to get quotation?Place an order? How about the delivery time?
Just send us an inquiry or contact us with online service / WhatsApp advising your technical requirements or workpiece information, we will revert you shortly with our catalogue , quotation and other details you need. For standard models, lead time is around 30-60 days after payment received.
9.What service we can offer?
1). 12 months warranty.
2). Free technical support online service via email, telephone, video meeting etc.
3). On-site commissioning, testing and training service.
4). Spare parts and consumable parts supply and machine repair service.
5). All of the questions will be replied within 24 hours.
