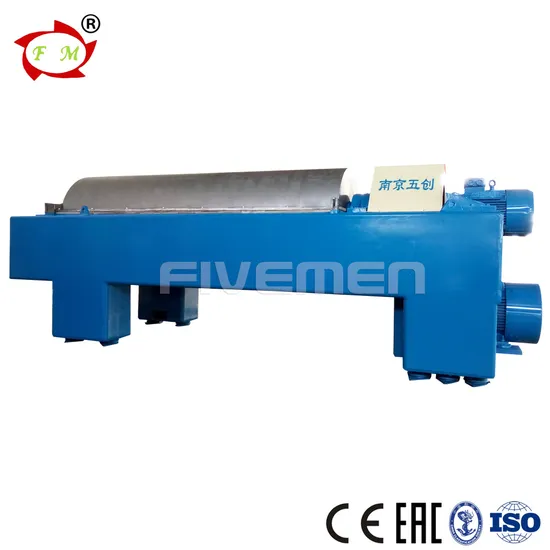

Lws 3 Phase Decanter Separator Waste Oil Automatic Centrifuge

Product Description

Description :
In our three phase decanter centrifuges, the light and heavy liquids are discharged via the force of
gravity and the centrifugal force, which effectively prevents the phases mixture and incomplete separation. Ordinary three phase decanter centrifuges often generate incomplete separation because
of unstable light / heavy phase liquid compositions, while in our centrifuges, the interface of light / heavyphase liquids can be regulated with constantly changing material compositions
in the machine working, thus optimal separation effect is achieved. Currently, our three-phase decanter centrifuges are used in the separation of oils, water and slags / dregs in the coal tar industry, the petrochemical industry, the fish powder industry, the swill oil industry, the electrolytic copper industry, and the waste scraps in the slaughter houses.

Material: high quality stainless steel
Bearing: SKF brand. A special selection and arrangement of bearings provides for long life and exceptional reliability
Wear protection: carbide sheets of spiral feeder and replaceable alloy sleeves of drum outlet and spiral feeder outlet

3 phase Decanter Centrifuge:

Parameters :
2 phase Decanter Centrifuge:

Type	Bowl diameter(mm)	Bowl length/ Bowl diameter	Bowl speed (r/min)	Main Power(Kw)
LW180	180	2.5-720	6000	3-5.5
LW260	260	3.0-4	5000	7.5-11
LW355	355	2-4.5	4000	11-30
LW420	420	3-4.1	3600	18.5-37
LW450	450	2-4.4	3600	18.5-37
LW480	480	2-4.2	3200	18.5-45
LW500	500	2-4.2	3200	18.5-55
LW530	530	2-4	3200	22-55
LW580	580	2-4	2800	30-55
LW620	620	2-4	2800	37-110
LW760	760	2-3.5	2500	55-132
Note: In case of differences between the table and the user manual, the latter shall prevail.

3 phase Decanter Centrifuge:

Type	Bowl diameter(mm)	Bowl length/ Bowl diameter	Bowl speed (r/min)	Main Power(KW)
LWS355	355	3.3-4.5	4000	15-18.5
LWS420	420	4.1	3600	22
LWS500	500	4.2	3000	30
LWS530	500	4.2	3000	30
LWS580	580	4.1	2800	45
LWS620	620	4	2800	45
Note: In case of differences between the table and the user manual, the latter shall prevail.

Feature:
The decanter centrifuge can be adjusted to suit individual requirements by varying:
1.Differential with high precision, compact structure, smooth operation.
2.Main bearing of imported bearings, to ensure the accuracy of the operation.
3.The part contacting with material is made of stainless steel.
4.The machine is equipped with a variety of safety overload protection devices, to make sure safety in production.
5.The machine system has two types, regular and explosion proof, to meet the different requirement.
6.Large length to diameter ratio, high speed, many angels of drum cone structure
7.Spiral pusher surface adopts hard alloy materials, against abrasion powerfully
8.According to the customer's desire, the frame can develop to low center of gravity, high bracket and move.
9.Spiral structure with BD board is used for the concentration dehydration of activated sludge and difficult separate materials
10.PLC control box
Application:
1.Environmental protection city life of dirt, power plants, petrochemical refinery sludge sludge, coking, industrial sludge concentration, sludge dewatering.
2.Food and drink fruit juice slag, slag of animal oil, plant oil, soy protein isolates of dehydration, concentration of fish protein, wheat starch B dehydration.
3.Chemical * barium dehydration, kaolin industry classification and grade of graphite and PPT, classification of drilling mud.
4.Coal tar, coal tar dehydration and slag, adapted to the different viscosity and water (emulsion) of coal tar separation, after the separation of reach national standard tar.
5, oil separation, vegetable oil, like avocado oil, olive oil, sesame oil, soy oil and so on.
animal oil, pork oil, fish oil, chiecken oil, beef oil ect.
waste oil like the waste heavy oil, fuel oil, other waste oil.
