Three Axies 250CNC Efficient Grinding Machine Tool with Enhanced Performance

Product Description

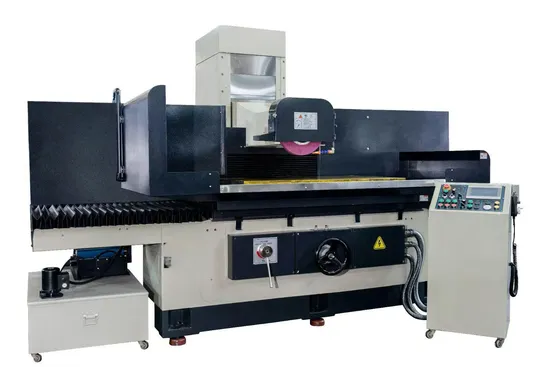

250/2550CNC Surface Grinding MachineThree Axies 250CNC Multifunction Grinding Machine Tool
At Cheng Yu Machinery Technology Co., Ltd., we pride ourselves on a robust policy of relentless innovation and enhancement across our entire product line. We reserve the right to update any specifications, mechanics, or designs with no prior notice, ensuring our offerings remain at the forefront of technological advancement.

	parameter	unit	CNC-250	CNC-2550
general picture	Table size (x*y)	mm	200×500	250*500
	X axis travel	mm	580	580
	Y axis travel	mm	230	280
	Max center of wheel to table	mm	380	380
	Maximum load	kg	200	200
Table	Table T cell specification	mm×N	14×1	14×1
	Table speed	m/min	0-25	0-25
Y axis	Minimum feed	mm	0.001	0.001
	Single feed		0.1~10	0.1~10
	Fast moving speed	mm/min	0~1200	0~1200
Z axis	Minimum feed	mm	0.001/0.01	0.001/0.01
	Fast moving speed	mm/min	0~800	0~800
grinding	grinding wheel size max	mm	Φ200×Φ31.75×19
	grinding wheel speed	R.P.M	0~3600	0~3600
motor	spindle motor	HXP	2×2	2×2
	the Z axis motor	W	750	750
	the Y axis motor	W	750	750
	the X axis motor	W	1500	1500
	cooling motor	W	90	90
Size	height of machine	mm	2000	2000
	floor space	mm	2000×1350	2000×1450
	weight(about)	kg	1450	1550

Cheng Yu Machinery Technology Co., Ltd., headquartered in Dongguan City, Guangdong Province, draws from three decades of Taiwanese expertise in grinding machine manufacturing, bringing together a team of highly skilled technical professionals. In the ever-evolving domain of CNC machine tools, the future is paved with high-speed, precision, and composite intelligence. Emphasizing openness, parallel drive systems, networking capabilities, and eco-friendly solutions, we align ourselves with these transformative trends shaping the industry. Dongguan Chengyu Machinery Technology Co., Ltd. stands as a beacon of excellence in the manufacture and processing of machine tools and accessories. Our guiding principles of 'technology, innovation, reliable' illuminate our path, while our 'meticulous' quality policy ensures the delivery of superior products and services. By deeply understanding our customers' processes, technological needs, production types, and quality demands, we harness design and production technologies to expand product applicability and drive industry growth. Our commitment to automation, precision, and quality is unwavering, supported by a robust quality management system, state-of-the-art equipment, and unparalleled expertise. To meet the burgeoning market demands, Chengyu Machinery is at the forefront of designing and manufacturing a diverse range of high-precision CNC surface grinding machines, including CNC forming machines, four-axis punch grinders, vertical slider grinders, and gantry rail grinders. Our prowess extends to the innovative design and production of industrial robots, automated production lines, and integrated applications. Below, we present a concise overview of our distinguished CNC grinding machine series: I. HS Series Models: 618 / 250 / 3060 / 4080 / 40100 (Available in both Servo and Hydraulic Types) Processing Capabilities: Masterfully executed Surface Grinding and Grooving Featuring our Exclusive Patented Hydraulic Control System (Hydraulic Type) Functions: Designed with Comprehensive Grinding Programs for Flat Surface and Groove Cutting. Versatile Feed Modes: Choose from Front, Back, Left, or Right Directions, with each grinding program capable of memory feed mode. Advanced Safety: Automatic Shutdown upon Grinding Wheel Overload. II. Expanded Models (Available in both Servo and Hydraulic Types) Extended Processing Capacity: Surface Grinding, Grooving, and Combined Scheduling for enhanced functionality. Featuring our Exclusive Patented Hydraulic Control System (Hydraulic Type) Advanced Functions: Equipped with Diverse Grinding Programs including Surface Grinding, Groove Cutting, Sole Grinding, Side Grinding, and Unequal Distance and Depth Displacement Grinding. Efficient Grinding Wheel Dressing: Bottom Plane Dressing based on set rough/fine grinding times and amounts, with automatic dressing and compensation integrated within the grinding cycle. Versatile Feed Modes: Choose from Front, Back, Left, or Right Directions, with each grinding program capable of memory feed mode. Specialized Grooving: Capable of Equidistant and Non-equidistant Grooving with Unequal Depths. 3. Four-Axis CNC Grinding Machines: Available in Horizontal and Vertical Configurations Diverse Processing Types: Facilitates Arbitrary Equal Division and Skipping Tooth Processing for maximum versatility. Precision Waist Circle Processing: Enter AB Size for accurate results. Innovative Triangle Fillet Applications: Enter Inscribed Circle Size B and Fillet Size R for precision engineering. Quadrilateral Fillet Expertise: Input Side Length A, Side Length B, and Fillet Size R to achieve impeccable accuracy. Eccentric Circle Mastery: Input Eccentricity and Starting/Ending Diameters for precise execution. Perfect Circle Craftsmanship: Input Starting and Ending Diameters for flawless circular grinding. Arc, input the desired arc size along with the precise rotation angle to master the art of precision engineering. Step difference, rotation profile, and more: fine-tune your projects with unmatched precision and customization. Easily save your processing schedule as a processing file, allowing for effortless retrieval and seamless workflow continuity.
