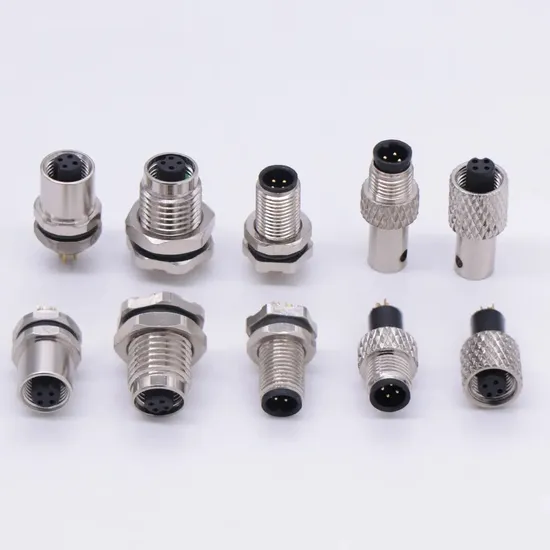

M12 Wasterproof Connector, DIP, PCB Front Lock Style
| US$0.50 | 500 Pieces (MOQ) |
Basic Info.
Model NO.
WD-MC-051
Gender
Male & Female
Certification
RoHS, CE, ISO9001
Application
Waterproof
Contact Resistance
3.8mΩ
Contact Material
Copper
Surface Treatment
Nickel Plating
Housing
Copper Alloy
Connector Type
a, B, D, I
Water Resistance Level
IP67, IP68
Pin Number
2, 4, 8, 12, 16pin
Transport Package
PE Bag
Specification
M6, M8, M12, M8, M16, M23
Trademark
Weidan Electronics
Origin
Ningbo
HS Code
8544421100
Production Capacity
50000PCS/Month
Product Description
High quality M6, M8, M12, M16 Circular Waterproof ConnectorWidely used in: the Aerospace, militar, automotive, eletric power, mechanical, auto mations,
Our these range of connectors have two series: 1, for Moulding style, 2, for DIP PCB mount style.
Prodcuts Characteristics:
*Durability: >3000 Mate/unmate Cycles
*pull Force: 1.5-3.8KGS
*Withstand Volage: 300V AC/60s
*insulation Resistance: >1000Mohm
*Rated temperarure: -40~85 degree
*IP grade; IP67/IP68
Material:
*Insulation Cores: PA66 Black
* PIN: Phosphor Copper + Gold plated
*Out Shell; Brass+ Nickel plated
*Hexagonal Nut; Brass+ Nickel plated
*O-ring: Rubber
Connector Spec: M8, M12, M16 (Type A, Type B, Type , Type D, Type I )
Pure Copper Made with Nickel plated. PIN with Gold Plated. ,
PACKAGE
| Approval | CE, ROHS, REACH, |
