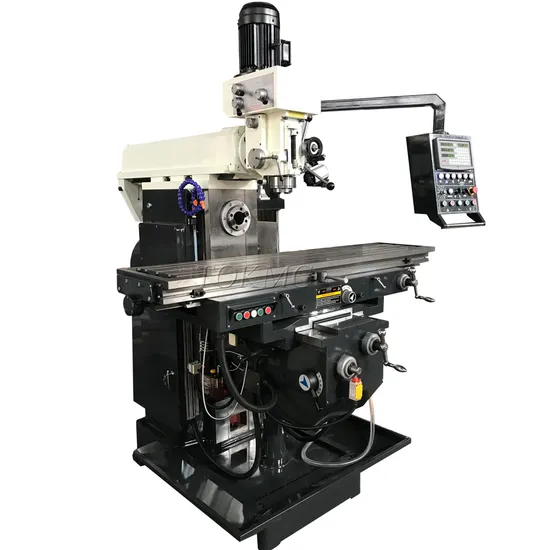

2000X400mm Vertical Horizontal Milling Drilling Machine
| US$14,000.00-21,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
ZXS1668
Structure
Rocker
Milling Cutter Type
Angle Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
Artificial
Automatic Grade
Manual
Precision
High Precision
Certification
CE
Condition
New
Function
Milling ,Drilling Machine
Table Size
1700X400mm
Transport Package
2245X2100X2000 mm
Specification
3000KGS
Trademark
TOKMC
Origin
Shandong
HS Code
8459290
Production Capacity
100 Sets/Year
Packaging & Delivery
Package Size
230.00cm * 230.00cm * 225.00cm
Package Gross Weight
3200.000kg
Product Description
2000x400mm Vertical horizontal milling machineSwivel head 45 degree
Servo motor
Common lead screw
| Drilling Milling Machine | ZXS1668 |
| Spindle taper | ISO40 |
| Spindle motor | 2.2 kw |
| Spindle speed | 90-2000 (Vertical) rpm 60-1850 (H) |
| Spindle head tilting | ±45 degree |
| Worktable size | 1700X400mm |
| Worktable swivel angle | ±45° |
| The max.weight on worktable | 1000 kgs |
| T-slots Number-table Width -Distance | 4-18mm-100mm |
| Table travel Longitudinal/Cross/Vertical | 1300mm/420mm/600mm |
| X.Y.axes feeding | 8steps25-800mm/min Rapid feeding 800mm/min |
| Z axes feeding | 8 steps 8-267mm/min Fast forward 267mm/min |
| Distance from spindle hole center to worktable surface main horizontal spindle | 0-440mm |
| milling head horizontal (low position) | 150-590mm |
| milling head horizontal(side position) | 340-780mm |
| milling head horizontal (high position) | 530-970mm |
| Distance from spindle nose to worktable surface | 50-650mm(Vertical) |
| Distance from Vertical spindle center to guideway surface | 0-1000mm(Vertical milling spindle head) |
| vertical swivel angle of milling head | 360° |
| Main motor | Vertical Milling 7.5KW (Vertical) Horizontal Milling 5.5KW (Horizontal) |
| Feeding motor (Servo motor) | 2.36KW 15N.M |
| Coolant pump motor | 90W |
| Coolant pump flux | 25 Litres/minute |
| Overall dimensions | 2300X2300X2270mm |
| G.W | about 3200kg |
Company Info
FAQ
-When do you delivery?
Depending on your community we delivery ,10-30 days
-Is machine tested ?
The accuracy , noisy will be tested.
Machine will be running one hour before despatch
-How do I pay? Do you accept cash or L/C?
We accept Interac e-transfers .cash, and T/T ,L/C
-How is the warranty ?
12 months
- If i have a problem, Will you be available by email to assist with solving the problem.
Video techanical support, online service ,We can answer it in 24 hours.
