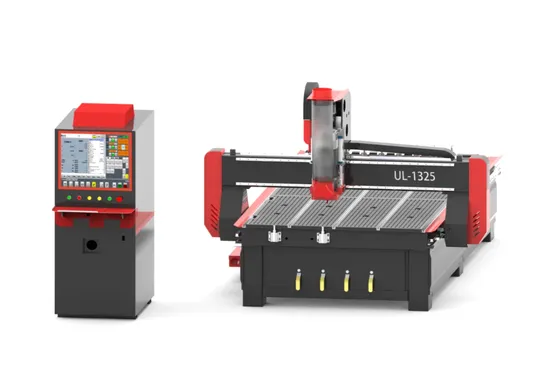

Heavy Duty 1325 Atc CNC Router Machine for Wood & Acrylic Sheet Servo Motor Single Spindle Richauto Control System New Condition

Product Description

Wood Carving Machine 1530 atc Cnc Router Woodworking for Door Making
Product Description

Wood Carving Machine 1530 atc Cnc Router Woodworking for Door Making.it added 8pcs tool magazines Behind the machine bed to make the machine more efficient. 1530 atc Cnc Router Machine Equipped with absolute value private server clicks, no need to return to the origin, simple operation, easy to make money. Our Advantages

1. UL-1530 with 9kw ATC spindle and carousel tool changing magazine, the machine can change tools automatically during the work. 2. Except the spindle, we use high quality components on this machine like servo motors and servo drivers, Taiwan linear rails and ball screw,Leadshine control system and so on
3. Machine base is produced by CNC machine, and machine base's five sides are produced at one same procession to make sure the machine body geometry tolerance is standard. The frame is a welded heavy steel tubular construction that supports all the other parts of the machine.4.With built-in memory function, no need toworry about tool breakage or power failure,bus absolute value, no need to return to the origin.
5.One-button tool setting, twice as accurateand twice as fast as manual tool setting.
Product Parameters

Model	UL-1530
X-Y-Z axis working area	1500*3000*200mm
Machine size	4000*2200*2200mm
Repositioning resolution	0.02mm
X-Y movement	Rack and pinion, gear drive/Taiwan
Z movement	Ball screw drive
Guide	Linear square/Taiwan
Spindle power	9KW air cooling ATC
Spindle speed	24000rpm
Inverter power	11KW inverter
Tool magazine	Auto 8pcs Linear tools changer
Drive motors	Leadshine Servo Motor
Working voltage	AC380V/50-60Hz, 3-phase
Command code	G code
Computer interface	USB 2.0
Software	Artcam , Alphacam copy
Controls	Leadshine
Table	Vacuum table
Standard equipment included	Tool Box
	Dust hood
	Oil lubrication system
	Tool shanks
	Positioning pins
	Tool sensor
Optional	Vacuum cleaner
	5.5 kW Becker vacuum pump
	Dust free system
	1300*1300mm working size
	SYNTEC controller

Detailed Photos

9kw ATC air cooling spindle
9kw high-power tool change spindle, effi-cient, high-quality cutting and milling. Spindle Speed 24000rpm

Linear type tool change
8-tool magazine in line, suitable for com-plex processes,can process cabinet doorsand bodies.


Vacuum table
The vacuum table with high qulity PVC Strong sealing
The vacuum table is a diamond-shaped area, and the adsorption effect is better6-partition design, vacuum adsorption, large andsmall boards will fix well, high adsorption
Oil lubrication system
A central oiler sufficient to keep your machine lubricated. When the oil tank needs filling, top up with a good quality SAE 30 weight oil.


Frame
The frame is made of a pentahedral machining center, which has undergone tempering treatment and vibration aging treatment; the core components are made of 16mm steel plate, and the other components are 8-10mm.
Control system
With built-in memory function, no need toworry about tool breakage or power failure,bus absolute value, no need to return tothe origin.

Sample show

wooden door and furniture, windows, tables and chairs,cabinets and panels, 3D wave plate,MDF,computer desk,musical instruments,etc
1.Woodworking:
billboard, logo,sign,3D characters cutting,acrylic cutting,LED/neon channel,literal-hole cut,lightbox mold,stamp,mould
2.Advertising:

copper sculpture,aluminum engrave,metal molds,plastic sheeting,PVC ,etc.
3.Die industry:

acrylic,density board,artificial stone,organic glass,soft metals like aluminum,copper, etc.
4.Decoration:
5.Cylindrical object
