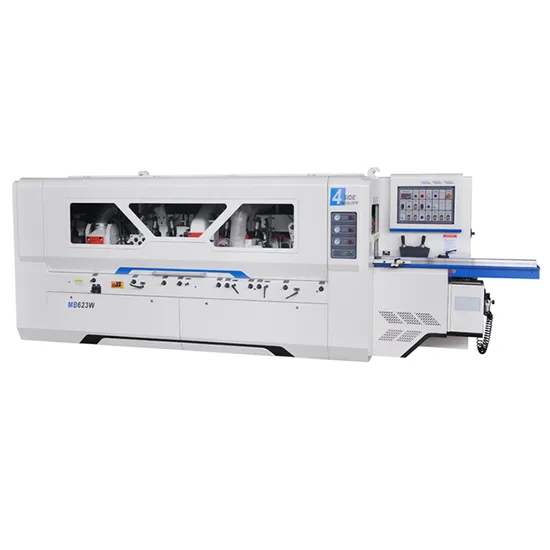

Hicas MB623W Universal Woodworking Automatic Spindle 4 Sided Planer Moulder Machine

Product Description

Hicas MB623W Universal Spindle 4 Sided Planer Moulder Product Description
MB623W universal spindle 4 sided planer moulder1. This machine adopts an integral casting body, which has stable performance and precision and good rigidity.
2. Fully enclosed safety cover and power-off protection when opening the door, low working noise, safety and environmental protection.
3. The main spindles adopts precision processing, dynamic balance processing, and precise assembly, which runs smoothly and with high accuracy.
4. The working table is made of special materials and special heat treatment, and is hard-chrome plated, which is wear-resistant.
5. Feeding system adopts front middle and rear three-stage pressing the material, the pressure is stable and the adjustment is convenient.
6. Multiple sets of bottom driving rollers are used in front middle and rear of the working table to ensure smooth feeding and strong force.
7. Lubrication of working table and dovetail board are controlled by manual pump, convenient and quick.
8. The first flat planer has a trimming sipe, and the front and rear mouth plates are fitted with diamond plates, which is accurate in planing and wear-resistant.
9. The 1st bottom cutter has a planing function, which can do manual feeding and planing processing when raise the first and second feeding wheels.
10. All electrical components and transmission parts use excellent brands and components with stable performance.
11. The feeding speed is controlled by frequency conversion, and the feeding speed reaches 5 ~ 36m/min.
12. Universal shaft can be 360 ° rotation.
13. Humanized centralized operation panel, easy to operate.
Product Parameters

Model	MB523W	MB623W	MB723W
Working width	20-230mm	230	230
Working thickness	8-160mm	160	160
Universal spindle quantity	1pc	1pc	1pc
Normal spindle quantity	4pc	5pc	6pc
Spindle speed	6800RPM	6800RPM	6800RPM
Feeding speed	6~36m/min	6~36m/min	6~36m/min
Spindle diameter	40mm	40mm	40mm
1st bottom spindle cutter diameter	125mm	125mm	125mm
Scoring cutter diameter	152mm	152mm	152mm
Right spindle cutter diameter	108-200mm	108-200mm	108-200mm
Left spindle cutter diameter	108-200mm	108-200mm	108-200mm
1st top spindle cutter diameter	108-170mm	108-170mm	108-170mm
2nd top spindle cutter diameter	/	/	108-170mm
2nd bottom spindle cutter diameter	/	108-200mm	108-200mm
Universal spindle cutter diameter	108-160mm	108-160mm	108-160mm
1st Bottom spindle power	5.5kw	5.5kw	5.5kw
2nd Bottom spindle power	/	7.5kw	7.5kw
Left spindle power	7.5kw	7.5kw	7.5kw
Right spindle power	5.5kw	5.5kw	5.5kw
1st Upper spindle power	7.5kw	7.5kw	7.5kw
2nd upper spindle power	/	/	7.5kw
Universal spindle power	7.5kw	7.5kw	7.5kw
Feeding power power	5.5kw	5.5kw	5.5kw
Lifting power power	0.75kw	0.75kw	0.75kw
Total power	38.25kw	47.75kw	54.75kw
Universal spindle rotation direction	360°	360°	360°
Pressing wheel size	140*35*50mm	140*35*50mm	140*35*50mm
Dust collection port size	6*150mm	6*150mm	6*150mm
Machine size	468*186*183cm	519*186*183cm	583*186*183cm
Machine weight	5500kg	6000kg	6800kg

Detailed Photos

1. ENTIRE CAST IRON	2. PROFESSIONAL ELECTRICAL APPLIANCES
Extra heavy one-piece, cast iron or steel weldment machine frame is specially heat treated for maximum stability and rigidity by standard configuration.	Siemens and schneider electrical products and appliances insure the whole machine run well with a stable performance.

3.AIRTAC CYLINDER	4.SAFETY ENCLOSURE
Pneumatic pressure of the feed rollers can be easily set to provide an outstanding feeding effect.	The full heavy gauge steel sound insulated safety enclosure serves as a chip guard and helps to reduce noise and has strobe free lighting.

5. HIGH PRECISION SPINDLES	6. HEAVY DUTY GEARBOXES
All spindles are precision constructed and specially heat treated to provide maximum cutting stability and permanent accuracy.	The feed rollers are driven through a combination of Extra heavy universal shafts and gearboxes, ensuring no loss of power transmission. A smooth feeding effect is assured.

7.OUTSTANDING FEEDING PERFORMANCE	8. HARD-CHROMED FEED TABLE
There are more top and bottom powered rollers than in most competitor's models, and this is an important reason for outstanding feeding performance.	The entire cast iron-chromed. In-feed table is normalization heat treated for maximum stability. In-feed table fence&adjustment is quickly accomplished by means of a quick-setting levers.

Final Product
Company Profile
About Us:
1.15 years experience in chinese woodworking machinery market.
2. 8 years exportation experience, have customers in more than 40 countries.
3.Engineer team with +20 years experience.
4.Diamond supplier in made-in-china.
5.Our products are widely sold in made-in-china.
6.Guarantee and After-sale service:
a. 12 months warranty for the whole machine
b. Technical support by phone, email or WhatsApp/Skype around the clock.
c. Friendly English version manual and operation video CD disk
d. Engineer available to service machinery overseas.
7. Customer feedbacks
8.Our company and products have been verified onsite by SGS Group
FAQ
1. Do you offer installation?
Our machines are almost assembled before loading in container. It is very easy for installation in your workshop. Video guidance and English manual can be provided freely. Engineers can be sent to service in site if the buyer request. all cost in buyer's account (the machine quotation does not include this cost), including all transportation cost between China and buyer factory (two way), visa and Insurance cost, hotel and eating in buyer country is responsible by buyer, extra labor salary USD200/day.
2. Where can we get replacement parts?
Most of the spare parts are ready in stock. They will be sent to the buyer directly from our warehouse with original prices.
3. How long can we get replacement parts?
Common spare parts can be delivered by express within one week. Some parts can be purchased locally.
4. What technical support do you offer?
1. Technical support by phone, email or WhatsApp/Skype around the clock.
2. Friendly English version manual and operation video.
3. Engineer available to service machinery overseas.
5. Do you have any machines in our country?
Our machines have been sold to more than 20 countries all over the world, like Russia, Singapore, Uzbekistan, The USA,Malaysia,Peru, Colombia, Vietnam, Slovakia, etc.
6. Can you customized the machine?
Our machines can be customized made according to buyers' request.
7. What other machine do you offer?
We provide one-stop shop service of woodworking machines for the buyers. Other kinds of woodworking machines, like sanding machine, CNC router, drilling machine, saw machine can be provided as well.
8. Can you set the system to our language?
Our system supports common languages like Chinese, English, Russian, Spanish, French, German Contact Us
