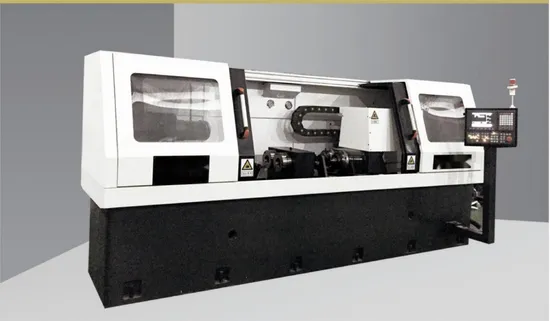

Heads Steel Gantry Movable Deep Hole Gun Drill Machine
Basic Info.
Model NO.
Z1500
Structure
Mill Drilling Machine
Layout
Vertical
Controlling Mode
CNC
Number of Shaft
6
Hole Diameter
50-100mm
Automatic Grade
Automatic
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Machining Aperture Range
4-30mm
Maximum Drilling Depth
1500mm
The Maximum Length of Workpiece
1600mm
Transport Package
Plywood Case
Specification
5000*2600*2000mm
Trademark
Ubright
Origin
China
HS Code
8459210000
Production Capacity
60 Sets/Month
Product Description
This machine is designed and developed for processing bar shaft products. Uniaxial, biaxial, four axis are optional according to user' S demand. Three jaw chunk or self drive cone disc are adopted , to provide the most appropriate solutions to users .CNC Deephole drilling machine suited for drilling 3-D or 2-D hole system. It is adopting chip moved outer, with high efficiency, high accuracy , drill small-holes by "gun-drilling "method. It can instead of drilling,counting,reaming by one drilling process obtain sourcing accuracy. Bord accuracy is IT7-IT10, roughness Ra3.2-0.04µm, linearity<=0.05mm in 100mm length. It is used widely in plastic and rubber industry, hydraulic mechanism, automobile and tractor, generator and aviation industry for machining deephole porforation; such as cooling hole, elecheating hole, valve distributor, pump steering sharft, spindleheat-exchanger, plate, etc.
Product Parameters
| ltems | Z500 | Z1000 | Z1500 | |
| Processing Capacity | Machining aperture range | 4~30mm | 4~30mm | 4~30mm |
| Maximum drilling depth | 500mm | 1000mm | 1500mm | |
| The maximum length of workpiece | 600mm | 1100mm | 1600mm | |
| Spindle | Qty, of spindle | 1(Or2~3) | 1(Or2~3) | 1 |
| Spindle centerline spacing | 200mm | 200mm | 200mm | |
| Maximum Speed of spindle | 4500rpm | 4500rpm | 4500rpm | |
| Spindle feed speed | 100mm/min | 100mm/min | 100mm/min | |
| Spindle fast moving speed | 1000mm/min | 1000mm/min | 1000mm/min | |
| Power | Spindle Motor | 7.5kw | 7.5kw | 7.5kw |
| Total Power | 18kw | 18kw | 18kw | |
| Cooling System | Pressure range of cooling liquid | 2~10MPa | 2~10MPa | 2~10MPa |
| Flux range of cooling liquid | 0~200L/min | 0~200L/min | 0~200L/min | |
| Machine Tool | Floor Area of Machine Tool(Length*Width) | 4300×2700×1900mm | 4800×2800×1900mm | 5000×2600×2000mm |
| Weight | 5ton | 7ton | 10ton | |
