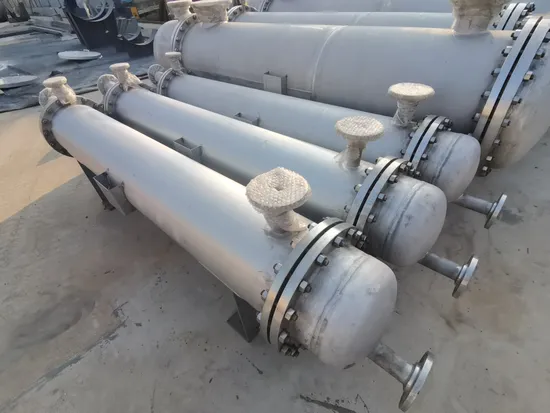

ASME Premium Stainless Steel Chemical Tower Tank Liquid Cooler

ASME Premium Stainless Steel Chemical Tower Tank Liquid Cooler

US$2,000.00-10,000.00 1 Piece (MOQ)

Basic Info.

Function
Storage Pressure Vessel
Application
Liquefied Gas
Material
Stainless Steel
Pressure
0.1MPa≤p<1.6MPa
Storage Medium
Moncombustible/Nontoxic
Pressure Level
Low Pressure (0.1MPa≤p<1.6MPa)
Condition
New
Working Medium
Liquid/Gas
Volume
Customized on Request
Maximum Pressure Limit
Customized on Request
Shell Material
Stainless Steel
Certificate
ISO ASME
Transport Package
Customized on Request
Specification
Customized on Request
Trademark
Customized on Request
Origin
Yangzhou
Production Capacity
1000 Pieces/Year

Product Description

Product Description
The main function of the tower kettle liquid cooler is to cool down the liquid substances in the reaction kettle for the convenience of subsequent process flow. During the cooling process, the cold medium enters the cooler through a pipeline and exchanges heat with the kettle liquid, thereby reducing the temperature of the kettle liquid to the required range.
According to the cooling method, it can be divided into the following categories:
1. Direct cooler: Cooling is achieved by directly injecting the cold medium into the kettle liquid, suitable for high temperature kettle liquid.
2. Indirect cooler: By exchanging heat between the cold medium and the kettle liquid through a heat exchanger, the cooling effect is achieved. It is suitable for kettle liquid with lower temperatures.
According to its structural form, it can be divided into the following categories:
1. Vertical cooler: Inject the cold medium from top to bottom, suitable for thicker kettle liquid.
2. Horizontal cooler: Passing the cold medium from one side to the other, suitable for clearer kettle liquid.
SCOPE OF WORK
Mechanical and Fabrication guarantee
Design including strength calculation (including erection condition) stress analysis and detail design based on applicable Codes, Local Regulation, Project Specifications and Standards
Thermal Design (Thermal Rating)
All technical certifications required for design work as per local regulations
Stability check (during transport, lifting and hydrostatic test) and loading data for base design
Structural analysis for main body and its support for operation load
Material procurement
Material Test and Certificates as per applicable Code and Specifications
Manufacturing
Post weld heat treatment as per code and specification
PMI (Positive Material Identification)
All NDEs as per Project Specification
Welding procedure qualification test
WPS & PQR
Welder performance test
Hydrostatic test at BlDDER shop as per Code & Local Regulations, Specifications.
Installation work for vessel internals supplied by Bidder
External surface preparation and painting as per Specification
Packing and marking as per project specificationsPreservation during transportation and storage (Including Seaworthy packing for oversea manufacturer)
Internal protection from moisture: N2 Charge
All activities to meet requirements of Data Sheets, Specifications, Codes and Standards, Local Regulations
1. Q:Are you a manufacturer or trading company?
A:We are a manufacturer with over thirty years of experience in China.
2.Q:Can we visit your factory before placing orders?
A: Sure, warmly welcome to our factory!
3.Q:What's the information needed if I send one inquiry ?
A : Please tell us the working conditions, mediums,temperature ,pressure, equipment ' s material,size,quantity, and other special requests.
4.Q:How does your factory do quality control?
A: Quality is priority ,we make relevant strict testing before delivery.
Our factory has already obtained ASME, GOST, ISO9001 quality and ISO 14001 Environmental management system certificate.
