CNC Turret Lathes Ck6136A-2 Machinery Tool 3 Jaw Chuck CNC Lathes
Basic Info.
Model NO.
CK6136A
Guide Rail
Horizontal Guide Rail
Tool Holder
4/6/8 Positon Tool Turret
Power Source
Electric
Controlling Mode
CNC
Automatic Grade
Automatic
Setting Mode
Table
Precision
High Precision
Certification
GS, CE, ISO 9001
Condition
New
Name
CNC Lathe
Material
Cast Iron Bed
Max. Diameter
360mm
Max. Length
500/750/1000mm
Spindle Bore
60mm
Power
380V or Others
Width of The Bed
330mm
Spindle Speed
150-2500rpm
Max. Size of Tool Post
20*20mm
Warranty
Two Years
Transport Package
Wooden Package
Specification
CE, SGS, ISO
Trademark
Crystal
Origin
Shandong, China
HS Code
8458110090
Production Capacity
35 PCS/ Mounth
Product Description
CNC Turret Lathes Ck6136A-2 Machinery Tool 3 Jaw Chuck CNC Lathes Machine can automatically process the inside and outside cylinder surface, cone surface, circular arc surface, end face, such as processing, and also can process the single and multiple threads in metric, inch and other standards.
Main Features:
1.Frequency conversion stepless speed regulation
2.Higher working efficiency
3.Higher rigidity cast iron
4.Fully enclosed-safety

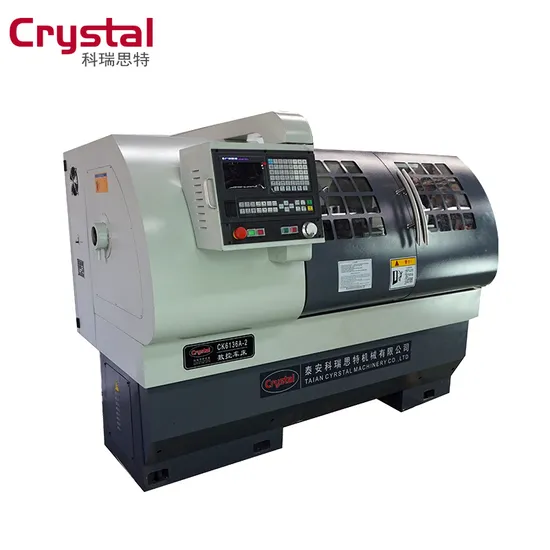

Product Display
CK6132A Specifications:
cnc lathe machine | CK6136A-1 |
Max. swim over bed | Φ360mm |
Max. swim over carriage | Φ190mm |
Max. length of work piece | 500/750/1000mm |
Width of the machine | 330mm |
Size of three-jaw chuck | 200mm |
Range of spindle speed | 150-2500rpm |
Spindle bore | Φ60mm |
Taper of spindle bore | MT4 |
Stations of tool carrier | 4/6/8 station tool turret |
Max size of tool post | 20x20mm or 25x25mm |
Min. setting unit of motor | (Z) long 0.001mm,(X) cross 0.001mm |
Moving speed of post | (Z) long 8m/min,(X) cross 4m/min |
Taper of tailstock quill | MT4 |
Max. range of tailstock quill | 120mm |
Motor power | 5.5KW |
Packing size(length ×width × height) | 1850/2120/2370 mm×1400 mm×1700mm |
Net weight | 1500/1650/1750kg |
Standard configurations:
1. Single spindle
2. Frequency conversion stepless speed regulation
3. CNC system: GSK928TD-L, servo motor for XZ axis, servo driven
4. Manual 3-jaw chuck, manual tailstock
5. 4-position electrical tool post
7. Automatic electronic pump lubrication, Lighting system, Cooling system
Optional configurations:
1.Fanuc Siemens KND cnc controller
2.Hydraulic chuck or Pneumatic chuck
3.Hydraulic tailstock, Pneumatic tailstock
4.Soft jaws/ 4 jaw chuck
5.6/8-station electric tool turret
6.Automatic bar feeding
7.Automatic chip conveyor
8.Overall cast iron bed Design Advantages
