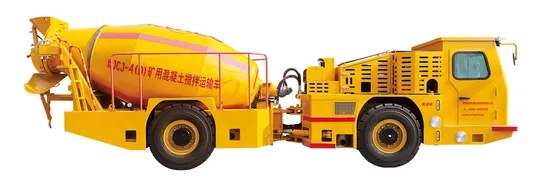

4 Cbm Articulated Underground Concrete Mixing Truck Tunnel Concrete Mixer Truck
| US$140,000.00-150,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
KJCJ-4
Type
Concrete Mixing Truck
Shotcrete Type
Wet
Structure
Rotor Type
Feeding Height
1400mm
Vibrating Amplitude
None
Certification
ISO9001: 2000
Condition
New
Color
Orange
Transport Package
Bulk
Specification
8560x2000x2500mm
Trademark
Jarlo
Origin
China
HS Code
8705400000
Production Capacity
1000 Sets/Year
Product Description
KJCJ-4 Mining Concrete Mixing TruckOverall Size and Structure
Performance characteristics
| Specification | ||
| Transportation Size(Lx WxH) | 8807 x 2100 x 2670mm | |
| Wheel base | 3640mm | |
| Axle track | 1660mm | |
| Min. Ground clearance | 320mm | |
| Unladen vehicle weight | 12.5t | |
| Stirring system parameters | ||
| Concrete tank capacity | 5.5m³ | |
| Loading capacity | 4m³ | |
| Max.discharge height | 1529mm | |
| Driving System Parameters | ||
| Maximum driving speed in horizontal tunnels | Gear I | 3.6km/h |
| Gear II | 8.2km/h | |
| Gear III | 17km/h | |
| Turning radius(Inner/Outer) | 4080/ 6470mm | |
| Steering angle | ±40° | |
| Steering Model | Center articulation, hydraulic cylinder power steering | |
| Engine model | Cummins | |
| Engine power | 133Kw/2200rpm | |
| Service brake | Double-axle independent hydraulic-assisted dual-circuit oil-immersed multi-disc brake | |
| Parking brake | Spring brake, hydraulically released safety brake | |
| Optional | ||
| Automatic lubrication system, automatic fire extinguishing system or hand-held fire extinguisher | ||
Main technical parameters and configurations 1.It adopts wet multi-disc brakes and Italian SAFIM dual-circuit braking system to meet the safety requirements of mines.
2.The closed cab adopts ergonomic design, meets FOPS/ROPS (anti-smash/anti-rollover) standards, and is equipped with heating and cooling air conditioning and a reversing camera system, which improves driving comfort-ability.
3.The sealed mixing tank is equipped with a water tank and an air tank for easy cleaning.
4.The frame adopts post-weld annealing and shot blasting to eliminate welding stress and ensure the quality of the complete machine.
5.Use Cummins engine, which can provide excellent climbing ability and power performance.
