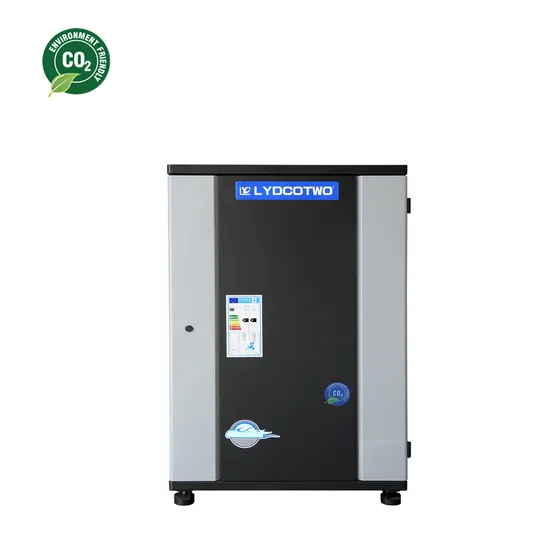

ERP a++ 8kw 14kw DC Inverter Air to Water CO2 Heat Pump

Product Description

1. This is real CO2 heat pump water heater, with Inverter technology.
2. CO2 is next generantion refrigerant, non-flammable, non-toxic,natural
3. CO2 heat pump can work on -25ºC , and its COP is high , system no need the Aux-heater even in low temp area
4. Our system can make water outcome in 85ºC , suitable for special requirements of hot water ,EVI or any existing heat pump can not do this.
5. Our system is INVETER units, compressor and motors are INVERTER, which can save more energy
The advantages of CO2 as a refrigerant
Climate-neutral environmentally friendly refrigerant R744 (CO2) Without environmentally hazardous decomposition products No additional contribution to the greenhouse effect (GWP = 1) Does not contribute to the ozone depletion (ODP = 0) No disposal and recycling requirements No availability constraints Low security requirements - Safety Group A1 Non-toxic, non-flammable, thermally stable, compatible with other materials higher EER in low ambient ,in -15C even have 1.55EER

INVERTER CO2(R744) heat pump specification
Model		LYD	7ZW(40L-260L)	8ZW	14ZW	25ZW	40ZW	50ZW	75ZW	120ZW
Standard temperature condition	Heating Capacity	kW	6.8	7.8	13.6	24	40	51	75.5	125.4
	Hot water capacity	L/H	129.9	149	259.8	458	764	974	1442	2396
	Heating power input	kW	1.51	1.7	3	5.3	9	11.3	16.7	26.6
	COP	W/W	4.5	4.58	4.6	4.5	4.4	4.5	4.5	4.7
Low temperature condition	Heating Capacity	kW	5.8	7	12.1	20	35	45.6	64	95
	Hot water capacity	L/H	97.7	118	203.9	337	590	768	1079	1602
	Heating power input	kW	1.47	1.7	3	5	9.4	12	16.8	24.3
	COP	W/W	3.9	4.1	4.1	4	3.7	3.8	3.8	3.9
Ultra-Low temperature condition	Heating Capacity	kW	5.3	6.5	11.2	14	28	35.7	49.1	78
	Hot water capacity	L/H	89.3	109	188.8	236	472	601	826	1315
	Heating power input	kW	1.46	1.71	2.9	4.8	10.1	12.3	16.8	26
	COP	W/W	3.62	3.8	3.9	2.9	2.8	2.9	2.9	3
Power supply	V/Ph/Hz
Heating type			Direct
Rated output water temperature		ºC	45
Maximum output water temperature		ºC	95
Work ambient temperature		ºC	(-)25-43
Compressor	Type		Panasonic				Torin(Italy)
Defrosting type			Bypass
Water connection pipe size		mm	DN15	DN20						DN25
Water side heat exchanger	Type		Tube-Tube type
Air side heat exchanger	Type		High efficiency copper tube(Interior Screw) nested in aluminium fin
Refrigerant	Type		R744/CO2
Dimensions	Length	mm	520	910	910	1280	1803	1803	2046	2468
	Width	mm	520	430	430	800	830	830	1106	1368
	Height	mm	1700	1000	1000	1500	2100	2100	2300	2413
Unit noise level		dB(A)	40	42	45	46	49	50	54	65
Net weight		kg	132	130	181	380	525	650	980	1350
Inverter			DC				AC
Note:
1.Standard temperature condition:Ambient temperature 20ºC,Water temperature: inlet 15ºC,outlet 60ºC
2.Low temperature condition:Ambient temperature 7ºC,Water temperature: inlet 9ºC,outlet 60ºC
3.Ultra-Low temperature condition: Ambient temperature -7ºC,Water temperature: inlet 9ºC,outlet 60ºC
