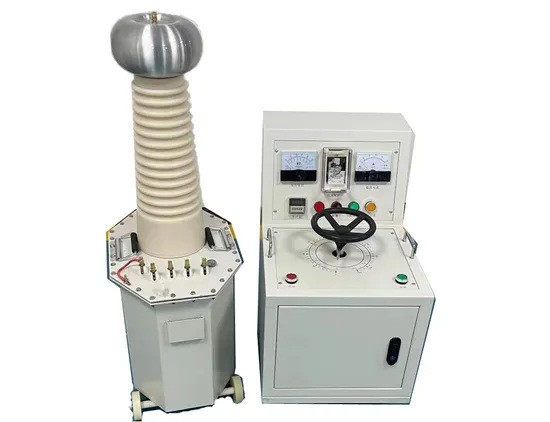

30kV 50kV 100kV AC/DC Hipot Tester Oil Immersed Type Transformer Withstanding Voltage Test Set
| US$860.00-2,780.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
VS-SYB series
Display Type
Analogue and Digital
Customized
Customized
Output Frequency
30 ~ 300 Hz
Output Voltage
0 ~ 1000 Kv
Voltage Waveform
Pure Sine Wave
Certificates
CE; EMC; LVD; ISO; IEC;
PT and CT
10 ~500 Kv
Current Range
60 Ma ~ 250 Ma
Capacitance Range
3 kVA ~ 50 kVA
Transport Package
Carton Box Wooden Case
Specification
230*170*100mm
Trademark
Weisheng
Origin
Baoding, China
HS Code
9030332000
Production Capacity
1000PCS/Month
Product Description
Product Description:This series of transformers, using advanced production equipment, adopts the new technology of epoxy vacuum casting for coil windings and CD-type iron cores. Compared with oil-immersed transformers of similar products, the weight and volume are significantly reduced, and the quality of insulation is improved. Strength and moisture resistance, and effectively weaken the magnetic flux leakage and greatly enhance the transformer's ability to withstand the impact of the test short-circuit current.
| Product name | 20kv-200kv Hv Test Transforme | ||
| Current method | AC/DC | ||
| Voltage Booster type | Oil-immersed, ultra-light, dry, inflatable | ||
| Outout current: | 60mA-250mA | Outout voltage: | 50kv~200kv |
| Capacity Range: | 1.5KVA---50KVA | Coil Structure: | TOROIDAL |
| Matching: | control box/console | Advantages: | lightweight and convenient |
