Elmendorf Method Paper Tearing Strength Tester HY-4250D
Product Description

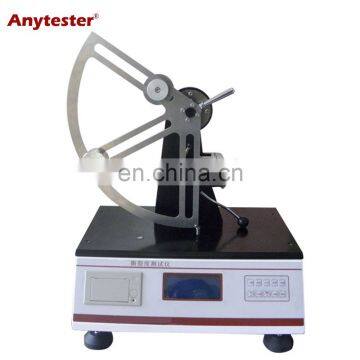

Product DescriptionProduct DescriptionHY4250D Series Elmendorf Tearing Tester is used to determine the tearing resistance of film, sheet, flexible PVC, PVDC, waterproof roll, weaving material, polyolefin, polyester, paper, board, textile, non-woven fabrics and other material. It conforms to, ISO 1974, , TAPPI T414, etc.Standard ISO 6383, 1974ASTM D1922, D1424, D689GB 11999, 455.1, 455.2 Note: For more standards, please contact usFeatures1. Microcomputer control, adopt automatic and digital test mode2. With standard RS232 port3. Can perform the test on main machine or with computer control4. It has professional software to communicate with computer, supports data output of several test units, more testing items display on software, such as tearing index, tearing angle etc.5.Equipped with different weights to meet different testing range6.Electric drive, easy to operate and more safe Specification ModelHY4250D-IHY4250D-IITest range(10~1000)mN0~200gf0~400gf0~800gf0~1600gf0~3200gf0~6400gf(Selectable)Clamp typeManualPneumaticResolution 1mN1gfArm of force 104±1mmTearing initial angle27.5 ±0.5°Tearing distance43 ±0.5mmSampling area25*15mmBody materialAluminum alloyWeight materialStainless steelPower supply AC220V, 50HzDimension470mm×340mm×530mmWeight27Kg
