Product Description

Product Description

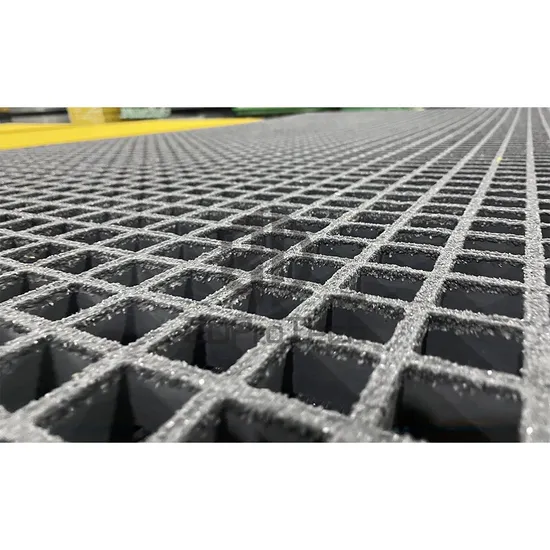

FRP/GRP Grating (Fiberglass Reinforced Plastic) is also known as glass-reinforced plastic grating or fiberglass grating. One of the main advantages FRP Grating has over steel is that FRP simply WILL NOT RUST. That's why you frequently see FRP used around saltwater for walkways, docks, and handrails.
Work with our fiberglass grating service to ensure your flooring, handrails, walls, and decks both indoors and out are fully protected against a wide range of uses and environments.
FRP Grating looks so much like steel, so you may have seen FRP at a marina and not even know it.
The price for FRP Grating is also often lower than steel or aluminum prices required to provide the same protection because FRP can perform at a much lower weight requirement.
Application Scenario
Product Parameters
Datasheet

Mesh size (mm)	Thickness (mm)	Bar thickness (Top/ Bottom mm)	Panel size available (mm)	Weight (kg/m2)	Open Rate (%)
38*38	13	6.0/5.0	1220*3660,1220*4000,1220*2440, 915*3050, 1268*4010	6	78%
	14	6.0/5.0	1220*3660,1220*4000,1220*2440, 915*3050, 1268*4010	6.5	78%
	20	6.0/5.0	1220*3660,1220*4000,915*3050	9.8	65%
	25	6.3/4.8,6.5/5.0	1220*3660,1220*4000,915*3050	12,12.3	68%
	30	6.5/5.0	1220*3660,1220*2440,915*3050	14.6	68%
	38	7.0/5.0	1220*3660,1220*2440,915*3050	21.5	68%
	50	8.0/6.0,11.0/9.0	1220*3660,1220*2440,915*3050	30,42	56%
	60	10.5/9.0	1220*3660,1220*4000,915*3050	50.4	54%
	70	11.5/9.0	1230*4010	58.8	49%
40*40	25	5.0/3.8,6.0/4.0, 7.0/5.0	1220*3660,1220*4025,1000*4040	9.5,11.5,12.3	67%
	30	6.0/4.0,7.0/5.0	1220*3660,1220*4025,1000*4000	15,14.6	67%
	38	6.0/4.0,7.0/5.0	1220*3660,1000*4000,1220*4025,1220*2440	20,19.2	67%
	40	7.0/5.0	1220*3660,1000*4000,1220*4025,1220*2440	19.5	67%
43*43	25	5.0/3.8	1220*4000,1220*4054,1220*3660, 1003*4054	9
50*50	15	6.0/5.0	1220*3660,1220*2440,1220*4000	5.9	82%
	25	7.0/6.0	1220*3660,1220*2440,915*3050	11.5	80%
	40	6.8/5.0	1778*4531,1225*4531	18.2	78%
	50	8.0/6.0	1220*3660,1220*2440,915*3050	23	78%
	63	8.3/6.0	1220*3660,1220*2440,1220*4000, 915*3050	28.8	78%
52*52	50	5.0/5.0	1220*4000	21
79*79	23	6.5/5.0	405*3569	5.7	80%
83*83	25	7.0/5.0	1007*4007,1007*3007	5.8	84%
	38	7.0/5.0	1007*4007,1007*3007	9.5	84%
	40	7.0/5.0	1007*4007,1007*3007	10.7	84%

Mesh size (mm)	Thickness (mm)	Bar thickness (Top/ Bottom mm)	Panel size available (mm)	Weight (kg/m2)	Open Rate (%)
13*13/ 40*40	25	6.5/4.5/5.0	1247*4047,1007*3007,1007*4047	17.8	30%
	30	6.5/4.5/5.0	1247*4047,1007*3007,1007*4047, 1527*4047	18.8	30%
	30	7.5/4.5/6.0	1220*3660,1220*2440,915*3050	22	30%
	38	7.0/5.0	1247*4047,1007*3007,1007*4047, 1527*4047	23.8	30%
19*19/ 38*38	25	6.0/4.0,6.5/5.0	1220*3660,1220*2440,1220*4000, 915*3050	13,16.8	30%
	30	6.0/4.0,6.5/5.0	1220*3660,1220*2440,1220*4000, 915*3050	17,19.1	30%
	38	6.5/5.0,7.0/5.0	1220*3660,1220*2440,1220*4000, 915*3050	24	30%
20*20/ 40*40	14	6.5/5.0	1247*4047,1007*3007	5.9	82%
	22	6.5/5.0	1247*4047,1007*3007,1527*4047	11.5	80%
	25	6.5/5.0	1247*4047	18.2	78%
	30	7.0/5.0	1007*4047,1007*3007,1247*4047	23	78%
	40	7.0/5.0	1007*4047,1007*3007,1247*4047	28.8	78%
25*25/ 50*50	25	6.0/4.0	1220*3660,1220*2440	13
	30	6.0/4.0	1220*3660,1220*2440	17
	50	8.0/6.0	1530*4020	28.5	55%
26*26/ 52*52	30	7.0/6.0	1530*4000	15.3	60%
	38	6.0/5.0	1150*4011	19.5	60%

Mesh size (mm)	Thickness (mm)	Bar thickness (Top/ Bottom mm)	Panel size available (mm)	Weight (kg/m2)	Open Rate (%)
25*50	38	11.9/9.0 heavy duty	1220*3660	30.7	48%
	50	12.0/9.0 heavy duty	1220*3660,1220*1835	41.8	48%
25*152	38	8.0/6.5	1220*3660,1220*2440,915*3050	22.5	63%
35*100	38	8.0/6.5	1507*4300,2400*3000	2	63%
60*220	40	6.3/5.0	1788*2238	8.8	67%
25*152	38 stair treads	7.0/5.0	565*3050	23.1	62%
38*152	38 stair treads	7.0/5.0	580*3660,610*3660	17	65%
25*100	25	7.0/5.5	1007*3007,1007*4007	13	67%
	25	7.0/5.0	1220*3660,915*3050	13.83	67%
	25	9.5/8.0	1220*3660,1220*2440,915*3050	19.5	52%
	30	7.0/5.5	1007*3007	15.6	67%
	38	8.0/6.0	1220*3660	22.5	62%
	38	15.0/5.0	1220*3660	21	62%
38*100	38	8.0/6.0	1220*3660,1220*2440,915*3050	16.4	65%
	50	8.0/5.0	1220*3660	15.3	62%
38*152	38	8.0/6.0	1220*3660,1220*2440,915*3050	15.92	67%
	38	15.0/8.0	585*3660,585*4100	18.6	62%

Concentrated line load-deflection in mm
38*38*25

Span\Deflection	KG/M²						Load limit
	75	150	300	450	600	750
450	0.559	1.146	2.15	3.073	4.115	4.75	3910
600	0.864	1.702	3.505	5.156	6.706	8.179	2924
900	2.896	5.918	12.116	18.44	---	---	1948
1200	5.715	11.63	---	---	---	---	1461

38*38*30

Span\Deflection	KG/M²						Load limit
	75	150	300	450	750	1500
300	<0.254	<0.254	0.254	0.508	0.762	1.524	9923.4
450	0.254	0.508	1.016	1.524	2.54	---	4827.6
600	0.508	1.27	2.286	3.556	5.842	---	4112.4
750	1.27	2.54	4.826	7.366	12.446	---	3173.7
900	1.778	3.81	7.62	11.43	---	---	2637.3

38*38*38

Span\Deflection	KG/M²						Load limit
	75	150	300	450	600	750
300	0.279	0.356	0.483	0.61	0.76	0.889	17116
600	0.356	0.66	1.245	1.85	2.46	3.073	8718
900	0.864	1.803	3.368	5.563	7.41	9.29	5817
1200	2.261	4.749	9.677	14.63	19.58	---	3755

50*50*50

Span\Deflection	KG/M²						Load limit
	75	150	300	450	600	750
300	0.279	0.305	0.406	0.483	0.635	1.041	21727
600	0.356	0.508	0.813	1.128	1.735	3.327	11713
900	0.508	1.118	2.235	3.2	5.156	10.058	7780
1200	0.914	1.93	3.937	5.918	9.957	---	5834

For more dimensions, Please contact us. Certifications
