10% off E-Glass Fiberglass Direct Roving for Winding or Pultrusion Fiberglass Winding Filament Roving or Pultrusion Roving

Product Description

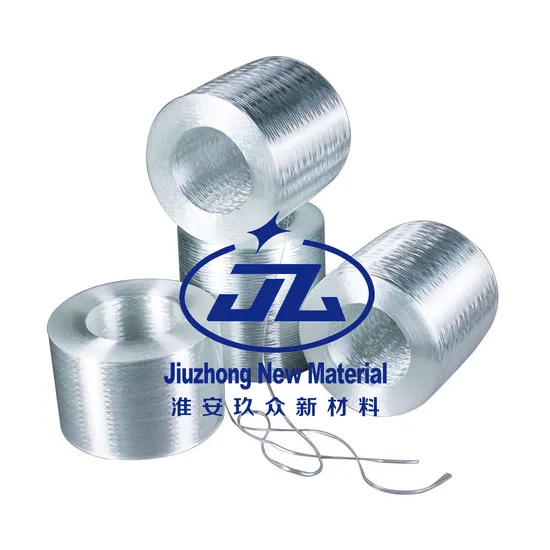

E-glass Fiberglass Direct Roving for Winding or Pultrusion / Fiberglass Winding Filament Roving or pultrusion Roving
Product Description
Which is coated with a silane-based sizing and compatible with unsaturated resin, vinyl resin, and epoxy resin. It used to produce gratings, various rods and profiles. Main uses include manufacture of FRP pipes of various diameters, high-pressure pipes for petroleum transitions, pressure vessels, storage tanks, and, insulation materials such as utility rods and insulation tube.
It's also called Single-end roving is the primary reinforcement for filament winding and pultrusion applications and is the input fiber used to produce woven roving and knitted fabrics.
Single-end continuous rovings are produced by pulling glass fibers directly from the furnace bushing, applying sizing to the cooling fibers, and winding them into a roving package or doff. Because of its excellent dry tensile strength, single-end rovings are ideal for high glass content applications like pultrusion and filament winding. Because the fiber is used as input for woven roving and knitted fabrics, single-end rovings are also widely use in open mold and infusion applications when configured into fabrics. Properties:
Excellent process Low fuzzLow frequency in machine clean-upLow sizing migration and good roller compacted performanceSuitable for high speed processVarious resins compatible
Detailed Photos


Product Parameters
Roving For Filament Winding

Code	Linear Density Tolerance%	Moisture content%	LoI%	Tensile Strength N/TEX	Filament Diameter μm	Compatiable Resin
ECR22-2000D-601	±5	≤0.10	0.40-0.70	≥0.40	22	UP,VE,EP
ECR17-2400D-601	±5	≤0.10	0.40-0.70	≥0.40	17
ECR24-2400D-601	±5	≤0.10	0.40-0.70	≥0.40	24
ECR24-4800D-601	±5	≤0.10	0.40-0.70	≥0.40	24
ECR24-9600D-601	±5	≤0.10	0.40-0.70	≥0.40	24

Direct Roving For High Pressure Pipe

Code	Linear Density Tolerance%	Moisture content%	LoI%	Tensile Strength N/TEX	Filament Diameter μm	Compatiable Resin
ECR13-2400A-603	±5	≤0.10	0.40-0.70	≥0.40	13	EP
ECR17-1200D-603	±5	≤0.10	0.40-0.70	≥0.40	17
ECR17-2000D-603	±5	≤0.10	0.40-0.70	≥0.40	17
ECR17-2400D-603	±5	≤0.10	0.40-0.70	≥0.40	17

Roving For Pultrusion

Code	Linear Density Tolerance%	Moisture content%	LoI%	Tensile Strength N/TEX	Filament Diameter μm	Compatiable Resin
ECR17-2400D-601	±5	≤0.10	0.40-0.70	≥0.40	17	UP,VE,PF
ECR24-2400D-601	±5	≤0.10	0.40-0.70	≥0.40	24
ECR24-4800D-601	±5	≤0.10	0.40-0.70	≥0.40	24
ECR24-9600D-601	±5	≤0.10	0.40-0.70	≥0.40	24

Direct Roving For Insulation Composite

Code	Linear Density Tolerance%	Moisture content%	LoI%	Tensile Strength N/TEX	Filament Diameter μm	Compatiable Resin
ECR16-2400A-611	±5	≤0.10	0.40-0.70	≥0.40	16	EP
ECR16-4800A-611	±5	≤0.10	0.40-0.70	≥0.40	16
ECR16-9600A-611	±5	≤0.10	0.40-0.70	≥0.40	16
ECR16-19200A-611	±5	≤0.10	0.40-0.70	≥0.40	16

Roving For Optical Cable Reinforced Core

Code	Linear Density Tolerance%	Moisture content%	LoI%	Tensile Strength N/TEX	Filament Diameter μm	Compatiable Resin
ECR13-300D-602	±3	≤0.05	0.45-0.65	≥0.40	13	VE
ECR15-600D-602	±3	≤0.05	0.45-0.65	≥0.48	15
ECR17-1200D-602	±3	≤0.05	0.45-0.65	≥0.48	17

Roving For Spray-up

Code	Linear Density Tolerance%	Moisture content%	LoI%	Tensile Strength N/TEX	Filament Diameter μm	Compatiable Resin
ECR13-2400A-823	±5	≤0.10	1.05-1.40	≥0.40	13	UP
ECR13-3200A-823	±5	≤0.10	1.05-1.40	≥0.40	13
ECR13-4800D-823	±5	≤0.10	1.05-1.40	≥0.40	13
ECR13-2400A-823P	±5	≤0.10	1.05-1.40	≥0.40	13

Roving For SMC

Code	Linear Density Tolerance%	Moisture content%	LoI%	Tensile Strength N/TEX	Filament Diameter μm	Compatiable Resin
ECR13-4800A-822	±5	≤0.10	1.15-1.40	≥0.40	13	UP,VE
ECR13-2400A-822	±5	≤0.10	1.15-1.40	≥0.40	13
ECR13-2400A-829	±5	≤0.10	1.15-1.40	≥0.40	13

Roving For Panel

Code	Linear Density Tolerance%	Moisture content%	LoI%	Tensile Strength N/TEX	Filament Diameter μm	Compatiable Resin
ECR13-2400A-812	±5	≤0.10	0.45-0.70	≥0.40	13	UP

Roving For Chopped Strand Mat

Code	Linear Density Tolerance%	Moisture content%	LoI%	Tensile Strength N/TEX	Filament Diameter μm	Compatiable Resin
ECR13-2400A-810	±5	≤0.10	0.40-0.60	≥0.30	13	UP,VE
ECR13-3600D-816	±5	≤0.10	0.40-0.60	≥0.30	13
ECR13-4800D-835	±5	≤0.10	0.40-0.60	≥0.40	13

Chop Roving For Pipe

Code	Linear Density Tolerance%	Moisture content%	LoI%	Tensile Strength N/TEX	Filament Diameter μm	Compatiable Resin
ECR13-2400D-826	±5	≤0.10	0.40-0.60	≥0.30	13	UP,EP

Roving For Automotive Headliner

Code	Linear Density Tolerance%	Moisture content%	LoI%	Tensile Strength N/TEX	Filament Diameter μm	Compatiable Resin
ECR13-2400A-525	±5	≤0.10	1.20-1.50	≥0.40	13	UP,VE,PU
ECR13-4800D-525	±5	≤0.10	1.20-1.50	≥0.40	13

Roving For Prepreg

Code	Linear Density Tolerance%	Moisture content%	LoI%	Tensile Strength N/TEX	Filament Diameter μm	Compatiable Resin
ECR13-600D-612	±5	≤0.10	0.40-0.70	≥0.40	13	UP,EP,ETC
ECR16-1200D-612	±5	≤0.10	0.40-0.70	≥0.40	16
ECR16-2400D-612	±5	≤0.10	0.40-0.70	≥0.40	16

Roving For Fabrics

Code	Linear Density Tolerance%	Moisture content%	LoI%	Tensile Strength N/TEX	Filament Diameter μm	Compatiable Resin
ECR17-1200D-608	±5	≤0.10	0.40-0.70	≥0.40	17	UP,VE,PR
ECR15-600D-608	±5	≤0.10	0.40-0.70	≥0.40	15
ECR13-200D-608	±5	≤0.10	0.40-0.70	≥0.40	13
ECR13-4800D-608	±5	≤0.10	0.40-0.70	≥0.40	13

Yarn For Weaving

Code	Linear Density Tolerance%	Moisture content%	LoI%	Tensile Strength N/TEX	Filament Diameter μm
ECR11-136x1S28-368	±5	≤0.50	0.40-0.70	≥0.45	11
ECR11-136x1S28-366	±5	≤0.50	0.40-0.70	≥0.45	11
ECR11-100x1S28-365	±5	≤0.50	0.40-0.70	≥0.45	11
ECR11-200x1S28-365	±5	≤0.50	0.40-0.80	≥0.45	11
ECR11-270x1S28-365	±5	≤0.50	0.40-0.80	≥0.45	11
ECR11-270x1S28-365	±5	≤0.50	0.40-0.80	≥0.45	11
ECR11-410x1S28-365	±5	≤0.50	0.40-0.80	≥0.45	11

ECR Glass Fiber Roving For PU Pultrusion

Code	Linear Density Tolerance%	Moisture content%	LoI%	Tensile Strength N/TEX	Filament Diameter μm	Compatiable Resin
ECR17-1200D-681	±5	≤0.10	0.40-0.70	≥0.40	17	UP
ECR17-1700D-681	±5	≤0.10	0.40-0.70	≥0.40	17

Packaging & Shipping
Pallets Characteristics

Product	Levels Per Pallet	Roving per Pallet	Rovings per Level	Pallet Dimensions L X W X H(mm)	Net Weight Approx.(Kg)
Fiberglass Direct Roving	3	48	16	1140x1140x940	912
Fiberglass Direct Roving	4	64	16	1140x1140x1230	1216

Storage
Fiberglass Direct Roving should be stored away from heat and moisture, and in their original packaging. The best conditions are: temperatures between 15 and 35 ºC; humidity between 35 and 65 %.
If the product is not stored under these specifications, it is advisable to condition it in theworkshop for at least 24 hours before use, to prevent condensation. The pallets can be stored in 2 levels (1/1).
Huai An Jiuzhong New Material CO., LTD. recommends that the material be used according to FIFO (first in, first out) method.
It is recommended the use of a spacer plate (10mm) between the pallets.
Our Services: 1. Provide the high quality and low price product
2. Offer the safest package and transportation
3. Offer the most satisfying service
4. Provide the best after-sales service FAQ
Question 1: Are you a factory or a grade company?
Answer: We are a factory and have our top sales for the trade service.
Question 2: Can I try to get a SAMPLE before the order?
Answer: Sure. You can ask for the samples. Usually they're free.
Question 3: Where is your factory located? How can I visit there?
Answer: Our factory is located in Huai An, Jiangsu, China. You can fly to Shanghai or Huai An airport directly. All our clients, from home or abroad, are warmly welcome to visit us!
Question 4: How does your factory do regarding quality control?
Answer: Quality is priority. We always attach great importance to quality controlling from the very beginning to the very end.
Our factory has gained ISO9001 authentication.
Question 5: How about the lead time?
Answer: Within10-15 days after getting the prepayment.
Question 6: How can we pay?
Answer: For small sample shipping cost, you can pay either by paypal or by T/T. And by LC at sight for large amount of the order.

Question 7: If OEM available?
Answer: Yes, we provide all of our products OEM /ODM servic
