Top1 CCS/BV/ABS/Dnv/Pianc Docking 50kpa/80kpa Yokohama/Floating/Pneumatic/Rubber Fender with Chain Tyre Net

Product Description

Product Description

Package Size	150.00cm * 150.00cm * 150.00cm
Package Gross Weight	2500.000kg
Lead Time	20 days (1 - 10 Pieces)To be negotiated ( > 10 Pieces)

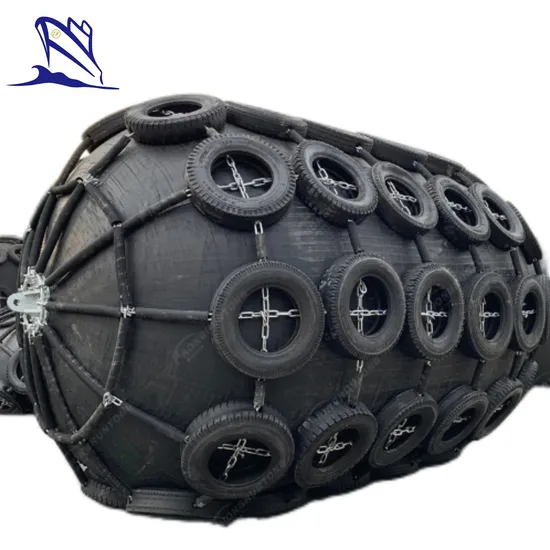

Yokohama Pneumatic Fenders
Pneumatic Fenders are ideal for permanent and semi-permanent port applications and for offshore ship-to-ship transfers. They are manufactured according to ISO17357-1:2014. Fenders are available in diameters ranging from 300 mm to 4,500 mm and lengths ranging from 500 mm to 12,000 mm, as well as special sizes. Features
1. Proportional increase of energy and reaction
2. Low hull pressure
3.Economical solution
4. Easy to deflate and store
5.Built as per ISO 17357-1:2014
Applications
1. In ports with extreme tidal variations
2. Ship-to-ship lightering operations
3.Oil & Gas (Typically FSRU)4.Temporary berthing

Fender Size		Initial Pressure 0.5 kg/ cm2			Initial Pressure 0.8 kg/ cm2
D x L		Reaction Force	Energy Absorption	Hull Absorption	Reaction Force	Energy Absorption	Hull Absorption
[mm]	[mm]	[kN]	[kNm]	[kN/m2]	[kN]	[kNm]	[kN/m2]
500	1000	64	6	132	85	8	174
600	1000	74	8	126	98	11	166
700	1500	137	17	135	180	24	177
1000	1500	182	32	122	239	45	160
1000	2000	257	45	132	338	63	174
1200	2000	297	63	126	390	88	166
1350	2500	427	102	130	561	142	170
1500	3000	579	152	132	731	214	174
1700	3000	639	191	128	840	267	168
2000	3500	875	308	128	1150	430	168
2500	4000	1381	663	137	1815	925	180
2500	5500	2019	943	148	2653	1317	195
3300	4500	1884	1175	130	2476	1640	171
3300	6500	3015	1814	146	3961	2532	191
3300	10600	5121	3090	171	6612	4294	220
4500	7000	4660	3816	186	5866	4945	233
* Other sizes can be customized according to the requirements.

Company Profile
Our Services
Being the Shipyard′s Branch Representative, we, Hangzhou Taihang Technology Import&Export Co., Ltd, have been established with the support of our NINGBO ZHENHE SHIPYARD. Meanwhile we have our own factory with laser cutting machine to provide CKD kits.
Our Service includes:
1. New Vessel Building(Catamaran, Landing Craft, Barge&Tugboat, Supply Vessels. etc)
2. Marine Equipment and Parts Supply (Deck equipment, Shafting, Rudder system, Thruster, Auxiliary equipment, Outfitting Equipment, Electrical Equipment, Mooring equipment, Materials, Lifting and Rigging, and various auxiliary Equipment and spare parts, etc. )
3. Laser Cutting services and One-stop services(1. Provide all material and fittings ---pre-cut steel, welding material, steel pipes, outfittings, equipment, everything you need. 2. Focusing on providing CKD service for over years, such as Ferry, Passenger Boat, Floating Dry Dock, Landing Craft, Deck Barge, Bouy Laying Vessel, Catamaran and so on. )
4. Professional Technical Support from Pre-sale to After-sale. (Additional we have our own teams with technicals and designers who have worked in marine for over 15years)
5. Inspection Capacity for ship′s condition, factories, products. (Commissioned by our clients, our chief engineer have been inspected several ships condition, inspected the machines, inspected the factories to make sure all those are good. )
We insist on doing everything seriously, and continuously improve and enhance our team′s capabilities and services. In order to meet your needs, our team ready to go all out!
ONCE YOU SELECTED, WE WANT TO BE YOUR PARTNER FOREVER!
Our Advantages
1.Our Shipyard:Ningbo Zhenhe shipyard, and now Taihang is the branch representative of our yard.2.Our founding team has experience of more than 15 years in ship building and ship repair with our own engineer and designer.3.Equipment quality guarantee: Based on shipyard feedback, we built up manufacturer file to ensure the good quality of the products. Also we can send our engineers to help our clients to install and test these exported equipment.4.We are a second hand ship broker to help you find the satisfied used different kind vessels.5.We are able to provide the CKD kits and one-stop service based on our laser-cutting machine and purchase ability6. We have a very professional design and technical team to work out perfect plan for our clients and help to slove out any matters with pre-sale and after-sale.7.Customer Distribution: Tananzia, Rwanda, India(Mumbai and Kalkatta), Suva, Portugal, Russia, Nertherland, Iceland, Denmark, Malaysia, Mexico.......
