Automatic Steel Cutting Production Line with ISO9001 From China

Product Description

Automatic Steel Cutting Production Line

The slitting machine is also called vertical slitting line which are used to slit cold rolled steel coil,hot rolled steel
coil,galvanized steel coil,silicone steel coil,stainless steel coil,aluminum coils etc into different width according to the
user's production demands and cut as well. The smaller metal strips are recoiled at the end of the slitting machine by which these smaller strips are used necessarily for the next process usage in the professional field of making transformers,motors making industry,tube/pipe welding mill industry,Cold roll forming industry, ceiling drywall industry and other high-precison equipment making and metal strips making industries. According to the material slitting thickness there are thin plate or board slitting machine,media-thickness plate or board slitting machine and thick plate or board slitting machine. According to the metal materials there are copper strips slitting machine,stainless steel slitting machine,cold or hot rolled plate slitting machine,silicone steel slitting machine. Product Parameters
Specification

Model	Thickness	Width	Coil Weight	Finished slit width	Max.Slitting speed
ZJ-1X600	0.2-1mm	100-600mm	Max 8T	Min.20mm	150m/min
ZJ-2X1250	0.3-2mm	300-1250mm	Max 15T	Min.25mm	150m/min
ZJ-3X1300	0.3-3mm	300-1300mm	Max 20T	Min.25mm	150m/min
ZJ-3X1600	0.3-3mm	500-1600mm	Max 20T	Min.25mm	150m/min
ZJ-4X1600	0.4-4mm	500-1600mm	Max 30T	Min.30mm	120m/min
ZJ-5X1500	0.6-5mm	500-1500mm	Max 30T	Min.40mm	100m/min
ZJ-6X1600	1-6mm	600-1600mm	Max 30T	Min.50mm	100m/min
ZJ-8X1800	2-8mm	600-1800mm	Max 35T	Min.50mm	80m/min
ZJ-10X2000	3-10mm	800-2000mm	Max 35T	Min.60mm	70m/min
ZJ-12X1800	3-12mm	600-1800mm	Max 35T	Min.60mm	30m/min
ZJ-16X2000	4-16mm	800-2000mm	Max 40T	Min.100mm	30m/min
ZJ-20X2200	5-20mm	800-2200mm	Max 40T	Min.100mm	20m/min

Company Profile

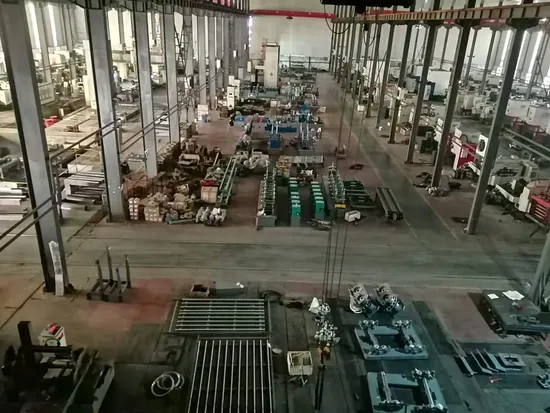

Hebei Tubo Machinery Co.,LTD is a high-tech enterprise registered in Shijiazhuang City. Hebei Province. It specialized in Developing and Manufacturing for the complete set of equipments and related technical service of High Frequency Welded Pipe Production Line and Large-size Square Tube Cold Forming Line . With more than 130 sets all types of CNC machining equipment, Hebei Tubo Machinery Co.,Ltd., manufactures and exported to over 15 countries of welded tube/pipe mill, cold roll forming machine and slitting line, as well as auxiliary equipment for more than 15 years. TUBO Machinery, as a partner of users, provides not only high precision machine products, but also technical support everywhere & anytime.
Product Description

FAQ
1. What information customer should supply before we prepare the Technical Offer? The raw material(Carbon Steel, Stainless Steel or others). The steel thickness range.
The pipe diameter specification list.
2. Do you have after-sales support?
Yes, we are happy to give advice and also have skilled technicians available to maintain the machine if needed.
3. How to visit your company?
We can pick up you from Beijing or Shijiazhuang airport. Or railway station Shijiazhuang.
4. What can you do if the machine is broken?
Our machine's warranty period is 14 months. If the broken parts can's repair, we can send the new parts to replace, but you need to pay the express cost by yourself. If after the warranty period, we can through negotiation for solving the problems, and we supply the technical support for the whole life of the equipment.
5.Can you be responsible for the transport.
Yes, please tell us the destination port or address. We have rich experience in transport.
6. Are you a trading company or factory?
We are a manufacturer.
7. Why your price is higher than others?
As we persist on that each factory should put quality in the first place. We spend time and money on developing how to make machines much more automatic, accurate and high quality. On the higher investment on machine will reduce the future machine maintain cost and time.
8. Do you have overseas engineers?
Yes, we don't only provide overseas engineers but also provide technical training.
9. Do you provide customized?
Sure, we can design the equipment according to the date of the structural section you provide. We are a professional sheet metal forming machine designer and manufacturer.
