Zhongtai Galvanized Wire Fence Panels 72 Inch Height 10 Gauge Plant Creeper Welded Wire Mesh China Wholesalers 4 X 16 Welded Wire Panels

Product Description

ZHONGTAI Galvanized Wire Fence Panels 72 inch Height 10 Gauge Plant Creeper Welded Wire Mesh China Wholesalers 4 X 16 Welded Wire Panels Product Description

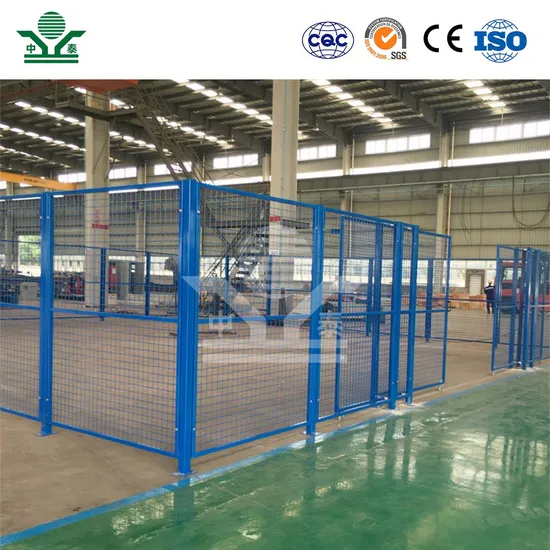

WELDED WIRE MESH FRAME PANEL
WELDED WIRE MESH FRAMED PANELS are made of welded mesh panels and steel pipe. This construction is used as fence panels. It is easy to install.
Welded wire mesh framed panels surface treatment can be hot dip galvanized after welded and powder coated. The coating can protect the mesh well. Anti-rust, and have a long service time.
Powder coated can be different colors, adapting the mesh to different environments.

Product Parameters
WELDED WIRE MESH PANEL WITH FRAME SPECIFICATION:

Production Name	Welded Wire Mesh Panels With Frame
Material	Carbon steel wire, Galvanized wire
Surface treatment	Powder-coated, Galvanized
Wire diameter	3mm, 4mm, 5mm
Hole size	50x50mm, 75x75mm
Panel size	1x2m, 2x3m, 1x3m
Material	Steel pipe, Steel Angle
Frame size	60x40mm, 40x20mm customized
Pipe Thickness	1mm, 1.5mm, 2mm, 2.5mm, 3mm, customized
Certificate	Form A, Form E, CO
OEM & ODM	Accept

Detailed Photos
FAQ WELDED WIRE MESH ELECTRO-GALVANISED AND HOT-DIPPED GALVANISED
Steel wire mesh welded is mainly used in fencing, storage, and construction. For making security fences, mesh cages, rack decking, grids, and poultry fences. Galvanized welded mesh panel with vinyl coating is popularly used in producing various mesh fence and grid wall panels. Most colors are black, white, etc.
MAIN PRODUCTS:
- Square welded mesh;
- Galvanized welded mesh;
- HDG welded mesh, gaw;
- Hot dipped galvanized weldmesh, HDG gbw;
- Galv. PVC-coated wire mesh;
- SS welded wire nets.
Common size to Ethiopian market:
Hot-dipped galvanized wire, welded mesh, quality SAE 1008 according to ASTM a-510, with zinc coating min. 90 gr/m2 according to EN 10244/2, bright finish, with tensile strength min. 540n/mm2.
Opening 50x50mm, framed-panel size 3000x1200mm,
Wire diameter 3.60 mm
Square Welded Wire Mesh Screen
The common size for the Indonesia market
Material: Galvanised or Stainless Steel
Type: Square Welded Wire Mesh
Opening : 2" x 2" ( 50.8 mm x 50.8 mm )
Wire Diameter : BWG 8 ( +- 4mm )
Roll length: 45 m ( 1. 5 rolls)
Width: 1 m ( 1000 mm )
Square Wire Mesh, HDG before Welding
Common size to Hungary market:
HDG BEFORE WELDED WIRE MESH
12,7X12,7X1,4X1000MMX25M 29.5kg
12,7X25,4X1,4X1000MMX25M 11.2kg
16 X 16 X 1,4 X 1000MMX25M 28.5kg
19 X 19 X 1,4 X 500MMX25M 10kg
19 X 19 X 1,4 X1000MMX25M 20kg
25,4X25,4X1,8X1000MMX25M 39.8kg
SQUARE WIRE MESH (HDG BEFORE WELDING)
3X3X0,8X1000MMX15M 50 ROLLS 26kg
4X4X1X1000MMX15M 20 ROLLS 31.5kg
5X5X1X1000MMX15M 50 ROLLS 27kg
6X6X1,2X1000MMX15M 20 ROLLS 32.4kg
8X8X1,2X1000MMX15M 30 ROLLS 33.7kg
10X10X1,6X1000MMX15M 40 ROLLS 38kg
10X10X2X1000MMX15M 30 ROLLS 56kg
12X12X2X1000MMX15M 10 ROLLS 42kg
16X16X2X1000MMX15M 10 ROLLS 40kg
Common Specifications for Welded Square Wire Mesh, Galvanised Before, PVC Coated, Galv. After Welding:

Welded Square Wire Mesh	Mesh x Wire	Panel Size
Welded square wire mesh, galv before welding	50x50x2,0MM	1,5x15M
Welded square wire mesh, galv before welding	50x50x2,0MM	1,5x25M
Welded square wire mesh, galv before welding	50x50x2,0MM	1,8x15M
Welded square wire mesh, galv before welding	50x50x2,0MM	1,8x25M
PVC coated welded square wire mesh	50x50x2,0MM	1,5x15M
PVC coated welded square wire mesh	50x50x2,0MM	1,5x25M
PVC coated welded square wire mesh	50x50x2,0MM	1,8x15M
PVC coated welded square wire mesh	50x50x2,0MM	1,8x25M
Welded square wire mesh, galv before welding	25x25x2,0MM	1,0x5M
Welded square wire mesh, galv before welding	25x25x2,0MM	1,0x10M
Welded square wire mesh, galv before welding	25x50x2,0MM	1,0x5M
Welded square wire mesh, galv before welding	25x50x2,0MM	1,0x10M
Welded square wire mesh, galv after welding	16x16x0,8MM	1,0x5M
Welded square wire mesh, galv after welding	12,7x12,7x0,8MM	1,0x5M
Welded square wire mesh, galv after welding	10,6x10,6x0,8MM	1,0x5M
Welded square wire mesh, galv after welding	6,4x6,4x0,6MM	1,0x5M

GALVANISED WELDED MESH, ELECTRO GALVANISED Galvanized Iron Welded Mesh
Common size to Saudi Arabia
Galvanized welded wire mesh
Size 1.2 m x 15m
Opening 1 '' x 1'' Square
Wire Dia 1.5 mm
Opening 2"x2"
Wire diameter 1/4"
Height: 72"
Pattern: 4" by 4"
Gauge: 10 gauge
Finish: Galvanized
Wire Mesh Galvanised, Welded
Common size to USA market:
Wire mesh, Galvanized, welded, 0.062" diameter wire, 2" x 2" mesh.
Specifications ASTM A185 and ASTM A82 or equivalent
Supplied in 4' x 8' sheets
1"x1"x12 gauge welded wire fabric, galvanized.
1" opening
6' x 150' roll
5' x 150' roll
Welded wire mesh panels
10mm thick wire
88.9mm square opening
Panel size 1.219mm x 3.048mm
Material: Carbon steel and/or galvanized steel material
Welded Mesh Sheets
Size to UK market:

Wire Sizes		Mesh Size Pitch of Wires		Number of Wires		Area per Meter
Main (mm)	Cross (mm)	Main (mm)	Cross (mm)	Long	Cross	Main (mm²/m)	Cross (mm²/m)
10	10	200	200	12	24	393	393
8	8	200	200	12	24	252	252
7	7	200	200	12	24	193	193
6	6	200	200	12	24	142	142
5	5	200	200	12	24	98	98

Galvanised Welded Mesh, Square Hole, and Rectangular Hole
Common sizes for the Indian market:

In Inch	In MM	Wire Gauge
1/4" x 1/4"	6.4mm x 6.4mm	22# - 24#
3/8" x 3/8"	10.6mm x 10.6mm	19# - 22#
1/2" x 1/2"	12.7mm x 12.7mm	16#-23#
5/8" x 5/8"	16mm x 16mm	18#-21#
3/4" x 3/4"	19.1mm x 19.1mm	16#-21#
1" x 1/2"	25.4mm x 12.7mm	16#-20#
1" x 1"	25.4mm x 25.4mm	14#-21#
11/2" x 11/2"	38mm x 38mm	14#-19#
1" x 2"	25.4mm x 50.8mm	14#-16#
2" x 2"	50.8mm x 50.8mm	12#-16#

GI Welded Wire Mesh, Sheets, and Rolls
Common size to Dubai market:
Welded Wire Mesh
Wire diameter 8mm
Size 2x 6 m sheets
Welded Wire Mesh
Wire diameter 6mm
Size 2x 6 m sheets
GI Wire Mesh
Mesh 200mm x 200mm x 8mm diameter
Electro Galvanized Wire Mesh
(Opening ? x ? ) x Gauge BWG 17
Roll: 1.219 x 30.4 M
Electro galvanized steel welded wire mesh
0.9mm x 5mm x 5mm x 0.9m x 30m, green coating available
Welded Mesh, Electro Galvanized after Welding [GAW]
Common size to Brazil market:
Roll size: 1.0 x 25 m
Mesh size: 25mm mesh x 1.24 mm wire thickness
Hole shape: Square mesh
For construction use
