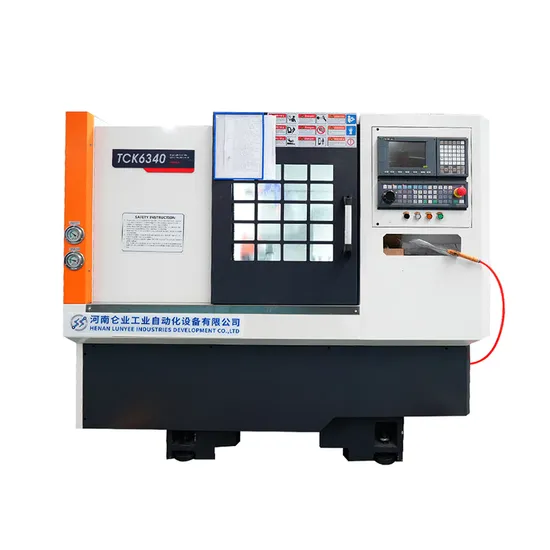

Inclined Bed 45 Degrees High-Precision 50-3500r/Min Taiwan Guide Rail Mini CNC Lathe Machine
Basic Info.
Model NO.
TCK6340
Type
Horizontal Lathe
Processing Accessory
Chuck CNC Lathe
Guide Rail
Horizontal Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
CNC
Automatic Grade
Semiautomatic
Setting Mode
Floor-type
Precision
High Precision
Certification
CE
Condition
New
Max.Swing Dia. Over Bed
400mm
Max.Swing Dia. Over Slide
140mm
Max. Processing Length
180mm
Max. Bar Capacity
39/44mm
Max. Processing Diameter
400mm
Spindle Speed
50-3500r/Min
Spindle Motor Power
5.5kw
Chuck Size
6/8 Lnch
X Axis Rapid Traverse
18m/Min
Z Axis Rapid Traverse
18m/Min
X Axis Servo Motor Torque
6n.M
Z Axis Servo Motor Torque
6n.M
X Axis Travel
400mm
Z Axis Travel
300mm
Machine Dimension
220*153*178cm
Transport Package
Wood Package/Wood Frame
Specification
2300KG
Trademark
Lunyee
Origin
China
Production Capacity
200 Sets/Month
Packaging & Delivery
Package Size
220.00cm * 153.00cm * 178.00cm
Package Gross Weight
2300.000kg
Product Description
Inclined Bed 45 Degrees High-precision Taiwan Guide Rail Mini Lathe Machine Product Description| Specifications | Unit | TCK6340S |
| Max.swing dia. over bed | mm | 400 |
| Max.swing dia. over slide | mm | 140 |
| Max.processing length | mm | 180(cutter row) |
| Max. bar capacity | mm | 39/44 |
| Max, processing diameter (plate) | mm | 400 |
| Spindle nose | GB59001 | A2-5 |
| spindle bore | Ф/mm | 49/56 |
| Spindle speed | r/min | 50-3500 |
| Spindle shift mode | Stepless Speed | |
| Spindle motor power | KW | 5.5 |
| Chuck type | Hydraulic chuck/chuck | |
| Chuck size | Inch | 6/8 |
| X axis rapid traverse | m/min | 18 |
| Z axis rapid traverse | m/min | 18 |
| X axis servo motor torque | N.m | 6 |
| Z axis servo motor torque | N.m | 6 |
| X axis travel | mm | 400 |
| Z axis travel | mm | 300 |
| Guide way type | linear | |
| Tool post type | Knife bank (optional tower) | |
| Tool shank size | mm | 20x20/Ф25 |
| Total rated power | KW | 12 |
| Total rated current | A | 21 |
| Net weight | kg | 2300 |
| Machine dimension(LxWxH) | (mm) | 2200x1530x1780 |
Detailed Photos
Product Parameters
Company Profile
FAQ
Q: Are you trading company or manufacturer?
A: We are the manufacturer for 15 years in China.
Q:How can I choose the most suitable machines?A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model . You can also send us the products drawing ,we will choose the most suitable machines for you.
Q: How to order?
A: send us inquiry → receive our quotation → negotiate details → confirm the sample → sign contract/deposit → mass production→cargo ready → balance/delivery → further cooperation.
Q: Did you test all the goods before they were shipped?
A: Yes, we test every product before delivery, the quality can be fully guaranteed.
Q:Do you accept product customization?A:Yes, we will try our best to meet your requirements.
Q: How to confirm the payment?
A: We accept payment by T/T, PayPal, the other payment ways also could be accepted, Please contact us before you pay by the other payment ways. Also 30-50% deposit is available, the balance money should be paid before shipping.
Q: Is your price competitive?A: Only good quality product we supply. Surely we will give you best factory price based on superior product and service.If you have another question, please feel free to contact us.
