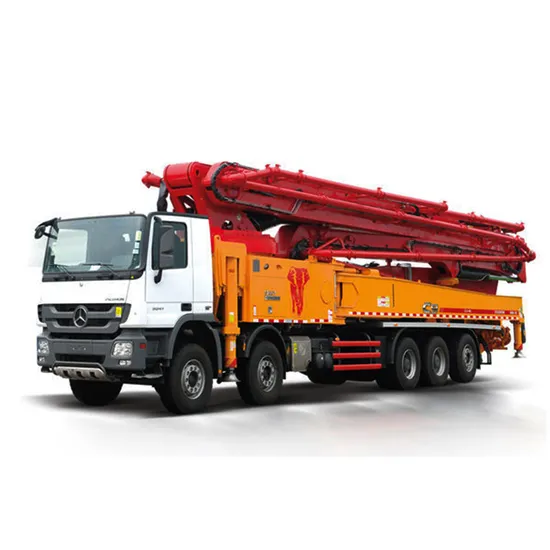

30m Boom Truck-Mounted Concrete Pump

30m Boom Truck-Mounted Concrete Pump

US$125,000.00-135,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
SYM5190THBDZ 30
Type
Concrete Pump
Shotcrete Type
Wet
Machining Process
Hydraulic
Structure
Cylinder Type
Productivity
120m²/h
Feeding Height
1400mm
Vibrating Amplitude
2.0mm
Certification
ISO9001: 2000
Condition
New
Color
Optional
Empty Weight
19000kg
Chassis Model
Zz5207m521gd1
Engine Model
Mc07.24-40
Engine Power
176/2300 Kw/Rpm
Transport Package
Nude Packing
Specification
10650x2500x3700mm
Trademark
S ANY
Origin
China
HS Code
87059091
Production Capacity
20units/ Month

Product Description

Made in China 30m woking aloft truck mounted concrete pump

1. MERCEDES BENZ CHASSIS COMCRETE PUMP TRUCK
2. Vertical reach: 30m

Model Unit
Pump Unit Max. Theor. output m3/h 140/90
Max. Theor. concrete output Pressure MPa 7/11
Rated working pressure MPa 35
Pumping frequency min-1 27/17
Hopper capacity L 550
Filling height mm 1540
Hydraulic system type opened loop
Distribution valve S valve
Oil cylinder dia.×stroke mm φ130×2100
Concrete cylinder dia.×stroke mm φ230×2100
Hydraulic oil cooling Wind cooling
Recommended concrete slump cm 12~23
Max. aggregate dimension mm 40
Boom Section Structure type 43X-5RZ
Placing depth m 43
Max. horizontal distance m 39
Max. placing depth m 30.46
Slewing angle ±270°
Boom number 5
The length of boom section mm 8350/7250/7050/7930/8420
Sections folding angle 90°/180°/180°/240°/200°
Pipe diameter mm 125
End hose length mm 3000
Min. height of opening placing boom mm 9100
Outriggers span (front×rear×side) mm 8220×8800×8900
