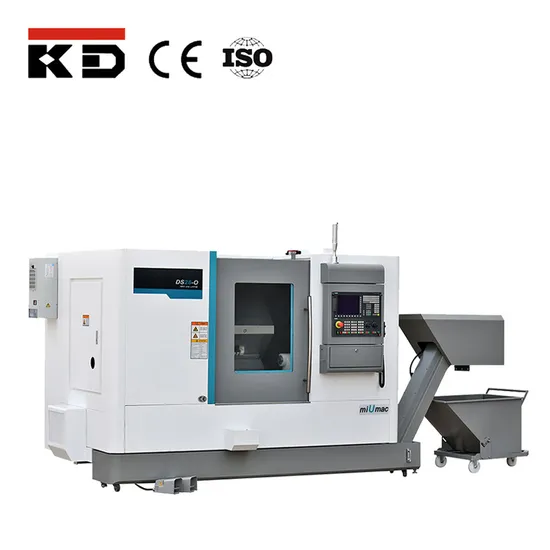

Metal Lathe Machine Tool Torno CNC
| US$33,485.00-37,130.00 | 1 SET (MOQ) |
Basic Info.
Model NO.
KDCL-28
Movement Method
Linear Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Performance Classification
Economical CNC Machine Tools
Certification
CE, ISO 9001
Condition
New
Delivery
45 Days After Order Confirmed
Color
Made to Order
Control System
Fanuc, Simens, GSK
Features
with Mechanical in Head Box
Max Swing
500mm
Spindle Bore
80mm
Tool Holder
32X32mm
Tool Post
12 Way O
Main Power
11kw
Transport Package
Export Wooden Case(Heat Treated)
Specification
CE, ISO9001, SGS
Trademark
KD
Origin
Zhejiang China
HS Code
8458110000
Production Capacity
1100
Product Description
Milling Metal Lathe Machine Tool Torno CNC Product FeaturesProduct Specifications
| MODELS | DS28-O/500 | DS28-O /1000 | DS28-O /1500 |
| CAPACITY | | ||
| Max. swing over bed | Ф520mm | ||
| Max. cutting diameter for disc parts | Ф420mm | Ф420mm | Ф500mm |
| Max. cutting diameter for axle parts | Ф300mm | ||
| Max. cutting length | 500mm | 1000mm | 1500mm |
| TRAVEL | | ||
| X travel | 255mm | 270mm | 270mm |
| Z travel | 600mm | 1050mm | 1550mm |
| FEED | | ||
| Rapid feed speed of X/Z | 30/24m/min | ||
| Linear guide ways width of X/Z | 35/ 45mm | ||
| Ball screw of X | Ø32×10 mm | Ø32×10 mm | Ø32×10 mm |
| Ball screw of Z | Ø40×10 mm | Ø40×10 mm | Ø50×10 mm |
| SPINDLE | | ||
| Max. speed of spindle | 4000rpm | 2500rpm | 2500rpm |
| Spindle nose | A2-6 | A2-8 | A2-8 |
| Diameter of spindle bore | Ф65mm | Ф80mm | Ф80mm |
| Hydraulic chuck | 8″ | 10" | 10" |
| Spindle motor power | 11/15kw | 15/18.5kw | 15/18.5kw |
| TOOL POST | | ||
| Tool number | 12-T hydraulic | ||
| Outside diameter of cutting tool shank | 25×25mm | ||
| Inner dia. of cutting tool shank | Ф40mm | ||
| TAILSTOCK | | ||
| Tailstock sleeve dia. | Ф80mm | ||
| Tailstock sleeve travel | 120mm | ||
| Taper hole of tailstock quill | M.T.No.4 | M.T.No.5 | M.T.No.5 |
| OTHERS | | ||
| Positioning accuracy of X/Z | ≤0.010/0.012mm | ||
| Repeated positioning accuracy | ≤0.003/0.005mm | ||
| Power of coolant pump | 180W | ||
| Capacity of lubrication pump | 2L | ||
| Bed structure | 45° slant bed integrated with stand | ||
| Overall dimensions(L×W×H) | 2880×1850×2000mm | 4800×1850×2000mm | 5300×1850×2000mm |
| Net weight | 4300kg | 5500kg | 6500kg |
