Automatic feeding straw mat machine straw weaving machine wet and dry grass weaving straw curtain machine

Product Description

Product Description
Automatic feeding straw mat machine straw weaving machine wet and dry grass weaving straw curtain machine
Product Description
Feature

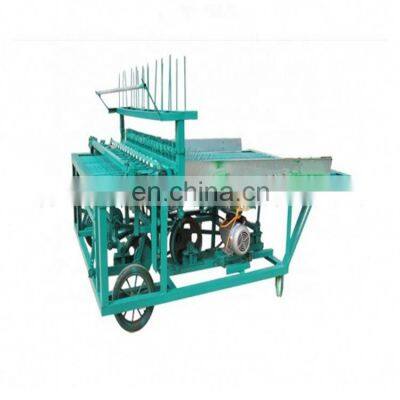

Reed mat knitting machine is a new type of building material and agricultural machine mainly applied to reed mat and mattress. The machine consists of the five parts of knitting device, output mechanism, cutting device, feed system and power supply system etc.
Complete quality guarantee enables the machine the characteristics of reasonable structural design, proper power matching, complete corollary facilities, simple operation, high production efficiency, low costs, high automation and convenient application and maintenance.
Reed mat made by the machine is smooth and clean, pleasant and long lasting (Adjustable thickness from 3 to12 cm, width from 1 to 1.5 m and free length). Suitable for house construction, dam protection and cattle box setting up etc. Of the characteristics of heat preservation, thermal insulation, large intensity and convenient construction etc. It has substituted reed matting originally applied in North China.
Mattress produced is smooth, clean, pleasant and long lasting. Of healthcare function, it’s more and more popular.
Numerical control cutting and automatic stop arrangement can avoid remainders in work. Production can be undertaken as long as raw materials (reed, straw, cattail and haulm etc.), thread and trip-phase electricity (or mini-generator of 8 km are available. Of wide market prospect, it is very much welcomed by market.
Specification

Item			1.2m
External dimension	Total length		12m
	Total width		1.8 m
	Total height		1.5m
Total weight			3.2ton
Capacity			60m/1hour
Power configuration		Host machine	2.2kw
		Cutting	1.5kw
		Winding	0.75kw
Feeding frequency			16—18 times/min
Interval between lines			Adjustable within 65mm
Needle gauge			30mm
Parameters of reed mat		Width	600-1200mm
		Thickness	25-60mm
Quantity of Operators		4 persons are ok, and 5 persons are better.
Installation and Training		2 weeks
Delivery time		30 days after receiving the prepayment

Picture information
Company Information
Our Services
Trade Shows
Certifications
Packaging & Shipping
FAQ
1.Q: Do you have a catalogue? Can you send me the catalogue to have a check of all your products?
A: Yes , We have product catalogue.Please contact us on line or send an Email and we will send the catalogue to you.
2.Q : Can you make customized products and customized packing?
A: Yes.We made a lot of customized products for our customer before.
About customized packing,we can put your Logo or other info on the packing.There is no
problem.Just have to point out that ,it will cause some additional cost.
3.Q:What's your MOQ?
A:We don't have MOQ,we are pleased to receive your order.
4.Q : How to ship my order ? Is it safe?
A: We will send them by Express,by Air or by sea.We will use good packing and ensure
the safety.
5.Q:What's your payment?
A:We usually use payment by Trade Assurance,T/T,L/C,etc.
