High Performance Rubber Intensive Mixer with Factory Low Cost

Product Description

Specifications

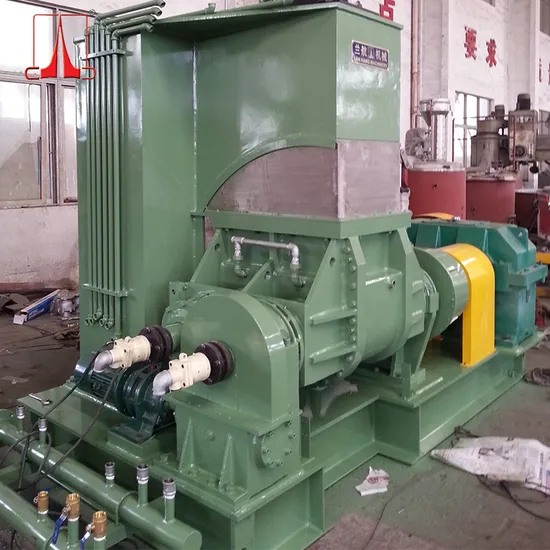

Intensive Mixer
1. Since 1992
2. CE,SGS,lAF,CNAS certified
3. Hydraulic Tilting
4. Tangetial Rotor
Why Choose Intensive Mixer Products from Lanhang
1. We're founded in 1992, with more than 20 ye Hydraulic Dispersion Mixer ars' professional experience
2. Fourtune global 500 companies' supplier, such as Dow Corning, Shin-Etsu...
3. Overseas service center available (in Europe, Japan, Dubai, etc.)
4. International CE, SGS, IAF, CNAS certification
5. National high-tech enterprise / products
6. We own various National Patent for Inventions Letters for rubber & plastic machinery
7. ISO9001:2008 management
Main Parameters of Our Intensive Mixer

Model	X(S)N- 35/30A	X(S)N-55/30	X(S)N-75/30A	X(S)N-75/30B	X(S)N-110/30	X(S)N-150/30
Working Volume (L)	35	55	75	75	110	150
Rotating Speed (r/min)	30	30	30	30	30	30
Speed Ratio	1:1.2	1:1.2	1:1.2	1:1.2	1:1.2	1:1.2
Loading Type	Front Feeding	Back Feeding	Front Feeding	Back Feeding	Back Feeding	Back Feeding
Discharge Type	Hydraulic Tilting or Extrusion
Tilting Angle	110-115°
Main Motor Power (Kw)	55	75	90	110	185	220
Dimension (m)	3.0x1.8x2.7	3.5x2.2x2.8	3.8x2.2x3.2	3.8x2.2x3.2	4.4x2.8x3.8	4.7x3.0x4.2
Weight (Kg)	8000	10000	11000	11000	14000	19500

Application of Hydraulic Intension Kneader
E.V.A. Rubber & TPR, Soles, Rubber Rollers, Hoses,Belts, Sponges, Sports balls, Vibration Insulators, Elastic Cords, Sealing Materials, Tires, Tapes, aster Batches, Pigment, Ink, Automobile & Electric Rubber Parts, Chemical Industry Compounds.
1. Rubber product for Automobile (Oil seal, Body seal, Gasket, Belt, Hose, Tube)
2. Electric wires (Rubber, Plastic, Wire harness)
3. Belt (Power transmission belt, Conveyor belt)
4. Roll (Rubber, Plastic, Printing, Copying machine)
5. Rubber product for Medical (Plug, Cap, Glove, Dental)
6. Sporting goods (Golf ball, Athletic ball)
7. Food (Chewing gum)

Feature of Lanhang Machinery Hydraulic Intensive Mixer
1. An Automatic temperature and time control system to provide 100% mixing effect.
2. Easy to clean chamber and easy color changing.
3. In 6-10 minutes/batch output equivalent to 2/3 units if mixing roller.
4. Pressurized and sealed mixing chamber to provide high mixing performance and prevent environmental pollution.
5. Easy installation, operation and maintenance to lower the running cost.
Our Services
Intensive Mixer
1. One year warranty
2. Engineers available to service machinery overseas (installation, debugging, commissioning and maintenance.)
3. Overseas service center available (in Europe, Japan, Dubai, etc.)
4. Life-long technical support
