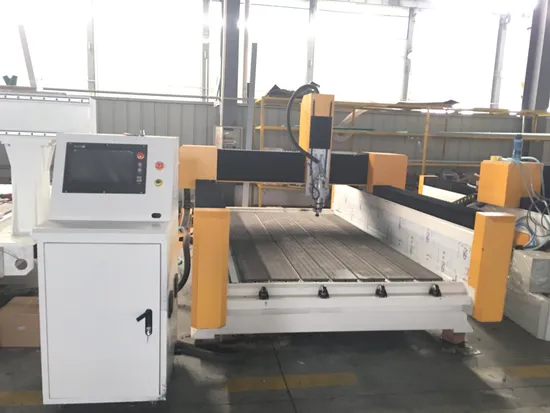

CNC Stone Router Engraving Machine for Marble and Granite China Stone Engraving Machine

Product Description

cnc stone router engraving machine for marble and granite china stone engraving machineCNC stone routers have become increasingly popular for their accuracy, efficiency, and versatility in carving and engraving marble and granite. These machines are highly efficient in speeding up the entire process of creating high-quality stones with intricate designs and patterns.
Chinese manufacturers have been dominating the market with their innovative and high-performance CNC stone routers. These machines are designed to meet the growing demand for precision stone carving and engraving services, and they have proven to be cost-effective and reliable solutions for many businesses.
The CNC stone router engraving machine is a powerful tool that enables users to cut and engrave marble and granite accurately. It features high-precision motors and a robust structure that can withstand heavy-duty tasks. Also, it comes with advanced software that allows users to design 3D models and convert them into files that the router can understand.
Besides, the CNC stone router is suitable for creating complex shapes, textures, and designs with varying depths and densities. It can produce decorative features, such as relief, lettering, and pictorial engraving, that are impossible to achieve through traditional methods of stone cutting and carving.
In conclusion, the CNC stone router engraving machine has revolutionized the stone industry by enabling artisans and manufacturers to produce high-quality and detailed stone works much faster than ever before. With the continued advancement of technology, we can expect to see more innovative and efficient machines from Chinese manufacturers in the future.
Features:
1.Water cooling spindle with high speed,high efficency and little noise.
2.All of the spindles can work together to save you time and costs.
3.The lathe is founded by welded steel that ensures the high stability and longtime use.
4.Taiwan HIWIN square guide rails and Taiwan TBI ball screws with high precision,large load bearing and stable running.
5.High speed driver and Stepper enhance work efficiency.
6.Our controller is DSP,easy to operate
7.Equipped with professional Aluminum with PVC base with the high strength engineering plastics surface in order to ensure can bear large load and longtime working.
8.Adopt high powerful weled steel bed structure.
9.The Ball screw in transtimission improve the work ability.
10.Many parts can change according to your requirement.
Configuration:
Technical parameters:

Model	ZK1325
X,Y,Z axis working area	1300*2500*200mm
Whole structure	Weled steel bed structure
Table surface	Aluminum with PVC
X,Y,Z structure	Taiwan PMI/HIWIN Square linear guide rail
X,Y structure	Rack and pinion transmission, high speed and more stable; Y -double motor drive
Z structure	Imported ball screw, high precision
Max. idling speed	50m/min
Max. working speed	25m/min
Repositioning Accuracy	±0.05mm
X Y Z working Accuracy	< 0.02mm
Spindle	Water cooling spindle
Spindle rotating speed	6000-18000rpm/min
Diameter of tools	Φ3.175 -Φ20
Collect size	ER 25
Operation language	G code (plt, mmg, uoo, bmp)
Driving system	Stepper motor
Operating system	DSP control system(can be optional NK105)
Working voltage	220V/380V
Software	UcancamV8 / Type3 / Artcam software (option)

After sale service:
1 we offer 1 year warranty
2 we offer 24 hourses technical support online
3 Druring the warranty, if there is part broken, we will offer you the same for free.
