Mandrel Steel Pipe Bending Machine Pipe Bender CNC Tube Bending Machine (GM-76CNC)
| US$7,900.00-27,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
GM-SB-76CNC
Warranty
2-year
Condition
New
Certification
ISO 9001:2000, CE
Automation
Automatic
Suitable for
Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel
Type
Pipe and Tube Bending Machine
Applicable Pipe Shape
Round, Rectangle, Square, Oval, Solid Bar, Profile
Technical
Draw Bending/Drawing Bending+Booster/Rolling
Optional Function
Manual Feeding or Manual Rotating
Bending Theory
Cold Bending
Factory Price
as Discussed
Machine Color
Customized
Transport Package
Iron Frame
Specification
CE
Trademark
GMACC
Origin
China
HS Code
8462269000
Production Capacity
5000PCS/Year
Packaging & Delivery
Package Size
480.00cm * 120.00cm * 135.00cm
Package Gross Weight
3500.000kg
Product Description

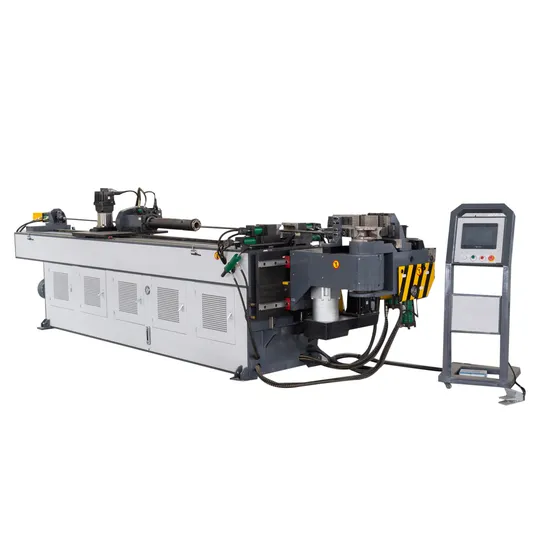

Product Description GM-SB-76CNC Full-Auto Numerical ControlModel:76×2A×1S Machine Characteristics GM-SB-76CNC Series numerical control single-head pipe bending machine is the product from the combination with our technology and advanced Italian technology, integrated with machine, hydraulic, and electricity. This series adopt VDU touch screen operating panel, which can input, store, and display various bending data and order,Y, B, C three coordinates of motions under precision control by industrial computer can realize full-auto mandrel on or mandrel off rapid bending, CNC machine also with advanced functions, such as components bending spring back compensation, errors self diagnose alarm, memory store after power off, automatic lubrication and safety protection. Main Technical Parameter
| Name | Unit | Parameter |
| Mild steel round tube | mm | ¢76*4 |
| Stainless Steel | mm | ¢76*3 |
| Light alloy annealed round tube | mm | ¢76*6 |
| Mild steel square tube | mm | 60*60*3 |
| Mild steel rectangular tube | mm | 65*55*3 |
| Mild steel round solid bar | mm | ¢35 |
| Mild steel square solid bar | mm | 30*30 |
| Min. bending radius | mm | 30 |
| Max. Bending radius(Standard) | mm | 350 |
| Head overhang (on bending centre) | mm | 600 |
| Head height (on bending centre) | mm | 580 |
| Bending centre height (from floor) | mm | 1060 |
| Max. bar passage inside the P.O.B. positionner | mm | 50 |
| Clamping adjustable stroke | mm | 0-136 |
| Shouldering adjustable stroke | mm | 300 |
| Mandrel retraction adjustable stroke | mm | 0-136 |
| Max. Bending Angle | ° | 190° |
| Through Effective Distance | mm | 4000 |
| Bending Speed(Max.) | °/sec | 30 |
| Max. rotation speed (axis Z) | °/sec | 160 |
| Max. feeding speed (axis X.) | mm/sec | 800 |
| Bending angle Precision | ° | ±0.10 |
| Rotation angle Precision - axis Z | ° | ±0.10 |
| Shifting Precision - axis X | mm | ±0.10 |
| Rotation Servo Motor Power | KW | 1.5 |
| Feeding Servo Motor Power | KW | 1.5 |
| System Motor Power | KW | 7.5 |
| Hydraulic Pump Volume | L | 23 |
| Max. Pressure | Mpa | 16 |
| L*W*H (Packaging Dimension) | mm | 5000*1200*1350 |
| Machine Weight | T | ABOUT 3.5 |
| Name | Manufacturer |
| Hydraulic Motor | Germany Siemens(Beide)or Suzhou Jialifan |
| Hydraulic Pump | Wuxi Tuoli |
| Hydraulic Valve | Japan Yuken(Imported) |
| Oil way Board | Taiwan Shanghong (Imported) |
| Cylinder | Shanghai Qifan |
| Touch screen | Taiwan Weinview(Imported) |
| PLC | Japan Mitsubishi(Imported) |
| Servo Motor | Japan Mitsubishi(Imported) |
| Angle controller | Japan Nemicon(Imported) |
| Transformer | Wuxi Xinyu |
| Other Electric Parts | Omron, Taiwan SHILIN(Imported) |
