Customizad Advanced Hpc 1600kN4000mm Series Elector Hydraulic CNC Press Brake Sheet Metal Bending Machine with Da53t/Da58t.

Product Description

Product Description

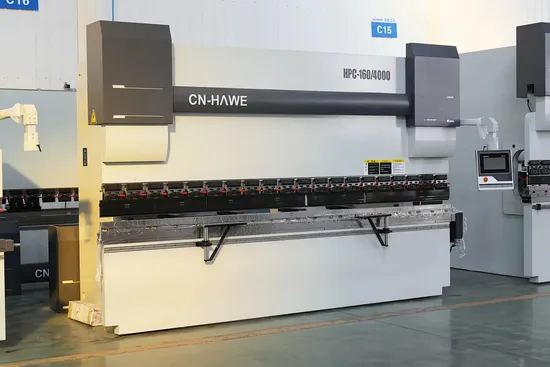

HPC EconomiAc CNC Press Brake
Press brakes stand as the unyielding titans in the realm of sheet metal processing, masterfully sculpting metal sheets into precise configurations with deftly applied pressure. These indispensable giants comprise fundamental components such as a stalwart workbench, a finely crafted mold, and a cutting-edge power system. The workbench provides steadfast support for the metal canvas, while the mold is engineered with exacting precision to align flawlessly with desired designs. Meanwhile, the power system furnishes precise pressure and motion control, ensuring impeccable bending accuracy. The precision and unwavering stability of these press brakes are of critical importance, directly influencing the superior quality of the finished parts. Their design and manufacture are executed with unwavering standards of excellence, ensuring unparalleled performance in every operation.With over a decade of relentless innovation, CNHAWE's electro-hydraulic servo control technology has ascended to unprecedented heights. Its flawless integration with press brakes has ushered in a revolutionary era within the industry, continuously propelling the evolution of the sheet metal fabrication sector to new frontiers.Product Parameters

Model	Bending Force	Bending Length (A)	Oil Tank	Approaching Speed	Progress Rate	Return Speed	Column Distance (B)	Throat Depth (C)	Slider Travel (D)	Open Height (E)	Weight	Dimensions
Unit	KN	mm	L	mm/s	mm/s	mm/s	mm	mm	mm	mm	Ton	L*W*H (mm)
HPC-65/2500	650	2500	200	240	20	240	2150	350	180	450	4.14	2710*1400*2400
HPC-110/3100	1100	3100	230	220	14	180	2600	410	220	490	7	3260*1540*2610
HPC-110/4000	1100	4000	230	220	14	180	3300	410	220	490	8.1	4060*1540*2610
HPC-135/4000	1350	4000	230	220	14	180	3300	410	220	490	8.3	4060*1540*2610
HPC-160/3100	1600	3100	230	200	16	180	2600	410	220	490	8.6	3270*1550*2700
HPC-160/4000	1600	4000	230	200	16	180	3300	410	220	490	9.9	4070*1550*2700
HPC-250/3100	2500	3100	230	140	12	160	2600	410	220	490	11.24	3280*1930*2740
HPC-250/4000	2500	4000	230	140	12	160	3300	410	220	490	12.8	4080*1930*2740

Detailed Photos
CNC Controller
The integration of manual quick clamps in our press brake has revolutionized the process of changing upper punch tools, making it swift and effortlessly manageable. This brilliant innovation not only conserves invaluable time but also significantly amplifies operational efficiency, granting operators an unprecedented level of convenience.Main Servo Motor
At the forefront of industrial automation, servo motors offer unrivaled dynamic performance, amplifying machine productivity while curbing energy consumption. Favored by numerous enterprises, they trim energy usage by up to 35% compared to traditional motors, empowering customers to boost efficiency and drastically cut operating costs, thereby setting a new standard for sustainable production.We also offer high-efficiency Siemens motors from Germany, designed for standard production requirements. These motors surpass conventional benchmarks, significantly enhancing work efficiency through their advanced technological design, ensuring dependable performance in diverse operational environments. Oil Pump
Crafted from high-strength cast iron, CNHAWE's oil pump epitomizes stability and reliability under high pressure and heavy loads. Its distinctive internal configuration maximizes efficiency through meticulous mechanical design and advanced process flow. Notably, this oil pump excels in noise reduction, fostering a quieter working environment, and exhibits low sensitivity to oil pollution, maintaining optimal functionality even in impurity-laden atmospheres, thus significantly prolonging its operational lifespan.Ball Screw & Guide
Our equipment features high-precision ball screws and linear guide rails, ensuring impeccable and reliable performance. Collaborations with esteemed brands from Japan and Taiwan, China, bolster the stability of motion control in our press brake, raising the bar for performance standards.
Servo Hydraulic System
Our CNC press brake boasts a comprehensive servo hydraulic system, comprising vital components such as motor, oil pump, filter elements, valve group, hydraulic cylinders, and oil tank. Partnered with HAWE, a prestigious German manufacturer known for high performance and low failure rates, we lay a formidable foundation for our system. Furthermore, our hydraulic control system integrates an electro-hydraulic servo synchronization design, minimizing intervals between hydraulic cylinders. This design enhances resilience against eccentric loads, ensures precise synchronization, and exhibits outstanding power density ratios, all achieved at a reduced cost, offering unmatched value.FAQ
Q1: How to get an accurate quotation from us?
A1: Please provide us with detailed information on the material, maximum thickness, and maximum width.
Q2: Can you provide OEM service?
A1: Yes, we can. Your design is accepted and your logo can be used on the machine.
Q3: How much is the shipping cost from China to your country?
A3: We can send the machine to your port or door address by sea or air. Please tell us your nearest port or address and zip code. We have reliable shipping agents to ensure safe, convenient, and on-time delivery.
Q4: How to operate this machine?
A4: Video line from our factory or we send you the video directly.
Q5: Do you provide teaching and training?
A5: Training in supplier factory.
