High Speed PVC Mixer

Product Description

High Speed PVC Mixer
1. CE* ISO
2. with drying, coloring function
3. mixing for PVC pipe, profile, wpc

this plastic mixer can be applied to mix all kinds of plastic material and additives.
we have series of various plastic mixer :
1. SRL-Z series mixer unit , SRL-Z 200/500 , SRL-Z 300/600 , SRL-Z 500/1000 , SRL-Z 800/1600 ,
2. SHRseries mixer unit,SHR200A , SHR300A , SHR500A , SHR800A , SHR1000A ,
Application Features: mixer
SRL-Z series plastic mixer is applicable for mixing, colouring and drying of various resin such as poly, PE,PP,PVC polypropylene, poly chloride etc.

The unit combines hot mixer and cooler mixer together .The material will get into cooler mixer for cooling automatically when they finish heating ,exhausts remaining gases and avoids agglomeration. Through setting the time or temperature, the machine can be operated automatically.

This unit is developed by importing and absorbing foreign advanced technology. By adopting PLC control, it features high automatic level, good mixing effect, complete function, compact structure and beautiful appearance. It is the ideal equipment for plastic mixing.

Two layers of sealing is adopted in the pot cover, pot cover of cooling machine adopts arch cover, which can avoic deforming,
It has features of contact construction, good performance

Model	Total capacity	Effective capacity	Motor power(kw)	Spindle speed	Heating method	Discharge method
SRL-Z50/100	50/100	32/75	7/11/5.5	750/1500/180	Self-friction or electric heating	Hand work or pneumatic
SRL-Z100/200	100/200	75/160	14/22/7.5	650/1300/150
SRL-Z200/500	200/500	150/320	30/42/11	475/950/130
SRL-Z300/600	300/600	200/360	40/55/11	475/950/130
SRL-Z300/1000	300/1000	200/640	40/55/11	475/950/50		Pneumatic
SRL-Z500/1000A	500/1000	375/650	47/67/18.5	430/860/60
SRL-Z500/1000B	500/1000	350/640	55/75/15	430/860/50
SRL-Z500/1600B	500/1600	375/1200	55/75/18.5	430/860/60
SRL-Z800/1600A	800/1600	600/1024	75/30	500/50
SRL-Z800/2000B	800/2000	600/1500	83/110/30	370/740

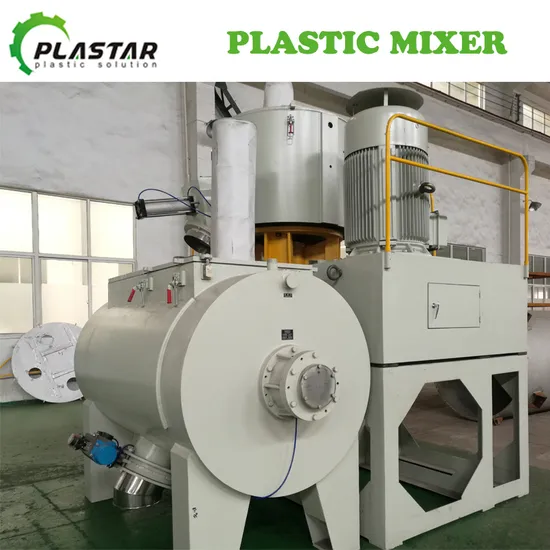

Machine pictures for your reference:
