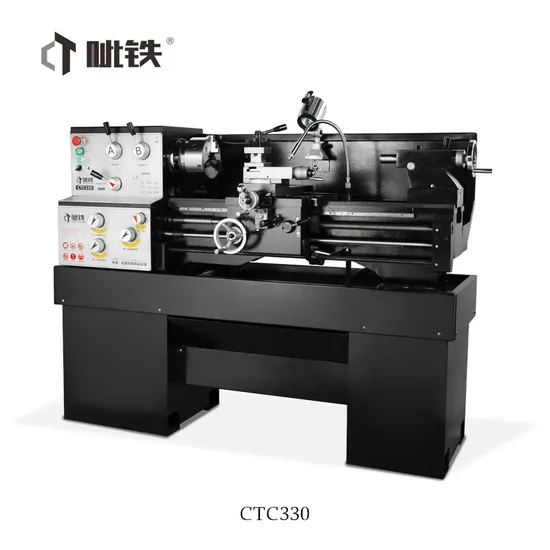

Mini Baby Bench Hobby Metal Manual Lathe Machine Ctc330 with China Low Prices
Basic Info.
Model NO.
Ctc330
Guide Rail
Horizontal Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
Artificial
Automatic Grade
Manual
Setting Mode
Table
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Transport Package
Stnadard Wooden Packing
Specification
1650*700*1300mm
Trademark
CTMACH
Origin
China
HS Code
8458190000
Production Capacity
10000
Product Description
| Max. swing over bed | 330mm |
| Max. swing in gap | 510mm |
| Max. swing over tool post | 210mm |
| Max.machining length | 750mm |
| Spindle taper | MT5 |
| Spindle bore | 38mm |
| Max. travel of tail-stock sleeve | 100mm |
| Taper of tail-stock | MT3 |
| Rail width | 210mm |
| Maximum height of turning tool | 20mm |
| Middle carriage travel | 200mm |
| Small carriage travel | 120mm |
| Metric thread/Grade | 0.45~4mm/17 |
| Inch thread/Grade | 41/2~64T.P.I(24) |
| Transverse feed | 0.015~0.4mm |
| Longitudinal feed | 0.06~1.60mm |
| Modulus thread/Grade | 0.45~4mm/17 |
| Diameter pitch thread/Grade | 15~192DP/20 |
| Spindle speed range/Grade | 65~1600r/min(9) |
| Motor power | 2KW |
| Net weight/Gross weight | 660kg/720kg |
| Overall dimensions | 1650x700x1300mm |
| Packing Size | 1800x800x1400mm |
