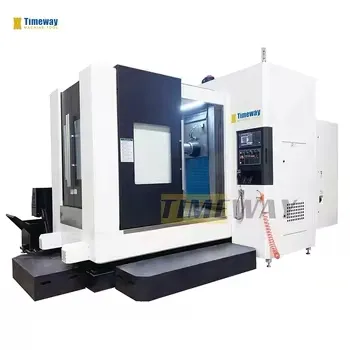

Cross Type CNC Milling Machine Horizontal Machining Center Hmc500s

Product Description

Horizontal Machining Center
Product Description
Standard Accessories: FANUC 0i MF CNC system; X/Y: Linear guide rails, Z: Sliding guide rail; Taiwan BT40 spindle, 8000rpm; Taiwan disc-type ATC with 24tools; Full enclosure; Manual pulse generator (MPG); USB & LAN interface; Work lamp; Pilot lamp; Cooling system; Centralized automatic lubrication system; Spindle air blast; Air gun; Milling arbor & chuck; Heat exchanger for electric cabinet; Tools & tool-box; Leveling wedge & bolts;Operation manual (English)
Optional Accessories:MITSUBISHI/SIEMENS/FAGOR/GSK/HNC/KND; 4th axis; Direct driven spindle (10000, 12000, 15000rpm); Circular coolant nozzle; Coolant through spindle (CTS);Spindle oil cooler; Air conditioner; Chain-type chip conveyor; Water gun; Safety door; Tool measurement system; Workpiece measurement systemHMC500S

Machine structure	-	Cross-type
X-axis travel	mm	800
Y-axis travel	mm	600
Z-axis travel	mm	500
B-axis servo motor torque (FANUC)	-	8
Table size	mm	500×500
Table indexing	°	1°×360
T-slots (No./width/pitch)	-	5-14-80
Table rotation speed	rpm	11.1
Loading capacity	kg	600
Locking force (35kg / cm2)	kg/m	3000
Distance spindle center to table	mm	100-700
Distance spindle nose to table center	mm	140-640
Spindle taper	-	BT-40
Spindle speed	rpm	8000
Main motor power	kw	11
X/Y/Z-axis servo motor (FANUC)	-	Bis12/Bis12/Bis12
X/Y/Z-axis cutting feed speed	mm/min	1-8000
X/Y/Z-axis rapid feed speed	m/min	30/30/30
X/Y/Z-axis rails type	-	Linear
X/Y/Z-axis positioning accuracy	mm	±0.008
X/Y/Z-axis repeat positioning accuracy	mm	±0.005
B-axis positioning accuracy	"	±10"
ATC capacity (style)	tools	24 (Disc)
Tool change time (tool to tool)	sec	2.7
Max. tool weight	kg	8
Max. tool diameter	mm	Φ78/ Φ125
Max. tool length	mm	300
Power supply	Kva	25
Air pressure require	kg/cm2	8
Machine weight	kg	5500
Overall dimension (LxWxH)	mm	3500×2900×23280

Detailed Photos

After Sales Service
1. Free replacing parts available in the warranty period.
Cost price replacing parts available beyond the warranty period.
2. Quick action and reply for the technical questions at any time in the whole life of the
machine.
3. Overseas after service center available in some region.
4. Engineer overseas service available on the requirement of customer
(relative cost born by customer). Company Profile
"TIMEWAY MACHINE" is a registered Chinese business business located in Zhengzhou city, in the center of China, and has been opearting in the machinery industry for many years.

Our factory is the joint-stock enterprise, founded in 1946, has 50 years of machine tool manufacturing history.Occupies more than 500acres, built a foundary, machining, heat treatment, assembly, quality inspection, painting, logistics and other advanced production lines.

Our product mainly cover lathes, Milling, Drilling, Gringding, Sawing, Shaping/Slotting and related accessories&tools, etc.
FAQ

Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
