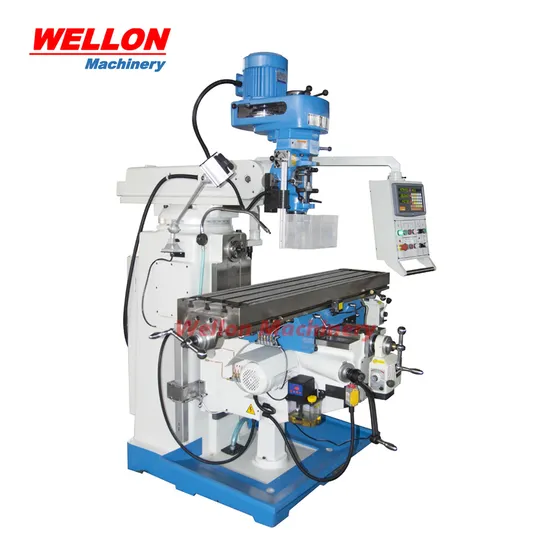

Turret Milling Machine with Horizontal Milling Head (X6325W Universal Milling Machines)
| US$5,000.00-7,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
X6325W
Structure
Desktop
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
Program Control
Automatic Grade
Semiautomatic
Precision
High Precision
Certification
CE, RoHS, ISO 9001
Condition
New
Table Size (mm)
1270*254
Spindle Travel (mm)
127
Transport Package
Wood Case
Specification
CE ISO9001
Trademark
WELLON
Origin
Tengzhou China
HS Code
84595900
Production Capacity
200 PC/Month
Product Description
Products Description:Performence Features: Cast iron with high precision, long service life
Three axis hardening treatment
Equipped with manual lubricating device.
Turret milling head with tilt from Taiwan
With horizontal milling hea
Technical parameter:
| Specification | X6325H |
| Spindle taper | R8 NT30 NT40(vertical) |
| NT40 (horizontal) | |
| Spindle travel (mm) | 127 |
| Spindle speeds range (r.p.m) | 66-4540 (V) 16 steps |
| 40-1300 (H) 12steps | |
| Distance from spindle to column(mm) | 155-635 |
| Spindle nose to table top(mm) | 0-460 |
| Table size (mm) | 1270*254 |
| Max. travel of table (mm) | 700x300x400 |
| T-slot number width distance (mm) | 3/16/65 |
| Work table Max load weigh(kg) | 350 |
| Main motor power (KW) | 2.2 (3HP) (Vertical) |
| 3 (Horizontal) | |
| Head swivel | 90° |
| Head tilting | 45° |
| Packing size(mm) | 1750*1530*2340 |
| N.W/G.W (kg) | 1500/1650 |
With Standard Accessories:
Drill chuck
Collet chuck kits
Working lamp
Coolant system
Reduction Sleeve
Mill arbors
Draw bar
Chip tray
Some tools
Optional accessories :
X axis auto power feed
Y axis auto power feed
Machine vice 160mm
3-Axis Digital readout
Universal Dividing Head F11-125A
Rotary table TSL320
Air draw bar
Variable spindle speed
58 pcs Clamping kits
Slotting head
Spindle protection
New type Aluminum arm support
Z axis motorized lifting
