Durable Rtk 1408 Channels Imu Survey Chc X6 B5 Gnss Chcnav I73-Ibase

Product Description

Product Description The i73 GNSS receiver removes barriers to portability without sacrificing performance. Featuring full GNSS technology, it offers best-in-class GNSS signal tracking even in a harsh environment, enabling GNSS surveying beyond usual constraints. The i73 GNSS incorporates the latest innovations such as an inertial module providing automatic pole-tilt compensation in a very compact design. Connected to a GNSS RTK network via CHCNAV LandStar field software, or combined with the iBase GNSS receiver, the i73 GNSS is a highly productive rover for surveying and stakeout in any topographic, mapping or construction site applications.

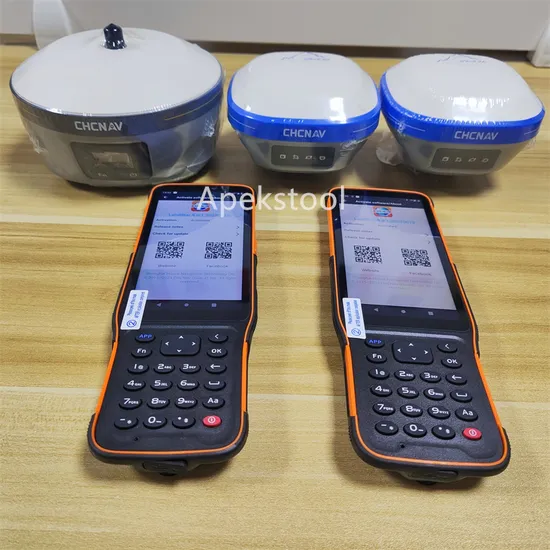

Data Collector HCE600 The HCE600 is a lightweight, compact, professional Android 10 data collector with alphanumeric keypad, specifically designed for surveying and mapping operations in the field. Its 5.5-inch DragonTrail™ display offers extreme durability, long-term performance and incredible sunlight readability. Packed with connectivity modules including Bluetooth 5.0, dual-band 2.4G and 5G Wi-Fi, 4G modem, and more, the HCE600 connects seamlessly and reliably to your favorite GNSS receivers and RTK network correction sources. Ultra-rugged, it withstands a 1.5-meter drop on concrete and meets stringent IP67 and MIL-STD-810H standards. The HCE600 is the optimal handheld controller for working in harsh field environments and making your data collection easier and more efficient.
Software Landstar8 LandStar8
1. Easy to use and learn, with powerful features
2. Simplified project and coordinated system management
3. CAD base map rendering in seconds
4. Cloud integration enables efficient collaboration from field to office
Specifications Chcnav I73 Specification

GNSS Performance	Channels	1408channels
	GPS	L1, L2, L5
	GLONASS	L1, L2
	Galileo	E1, E5a, E5b
	BeiDou	B1, B2, B3
	SBAS	L1
	QZSS	L1, L2, L5
GNSS Accuracies	Real time	Horizontal: 8 mm + 1 ppm RMS
	kinematics (RTK)	Vertical: 15 mm + 1 ppm RMS
		Initialization time: < 10 s
		Initialization reliability: > 99.9%
	Post -processing	Horizontal: 3 mm + 1 ppm RMS
	kinematics (PPK)	Vertical: 5 mm + 1 ppm RMS
	Post - processing static	Horizontal: 3 mm + 0.5 ppm RMS
		Vertical: 5 mm + 0.5 ppm RMS
	Code differential	Horizontal: 0.4 m RMS Vertical: 0.8 m RMS
	Autonomous	Horizontal:1.5 m RMS
		Vertical: 3 m RMS
	Positioning rate	Up to 10 Hz
		Coldstart: < 45 s
	Time to first fix	Hot start: < 10 s
		Signal re-acquisition: < 1 s
	RTK tilt - compensation	Additional horizontal pole-tilt uncertainty
		typically less than 10 mm +0.7 mm/°tilt
Hardware	Size (L x W x H)	119 mm*119 mm * 85mm
	Weight	0.73kg
	Environment	Operating:-40°C to +65°C
		(-40°F to +149°F)
		Storage: -40°C to +75°C
		(-40°F to +167°F)
	Humidity	100% condensation
	Ingress protection	IP67waterproof and dustproof, protected from temporary immersionto depth of 1 m
	Shock	Survive a 2-meter pole drop
	Tilt sensor	E-Bubble leveling
	Front panel	1 satellite light, 1 differential signal light, 1 static data acquisition light, 1 Wi-Fi indicator, 2 power lights
Communication		Integrated4G modem
		LTE(FDD):B1,B2,B3,B4,B5,B7,B8,B20
	Network modem	DC-HSPA+/HSPA+/HSPA/UMTS:
	Wi-Fi	B1, B2, B5, B8
		EDGE/GPRS/GSM
		850/900/1800/1900MHz
		802.11 b/g/n, access point mode
	Ports	1 x 7-pin LEMO port (external power, RS-232)
		1 x USBType-C port (data download, firmware update)
	UHFradio	1 x UHFantenna port (TNCfemale)
		Standard InternalRx/Tx: 410 - 470 MHz
		TransmitPower: 0.5 W to 2 W
		Protocol: CHC, Transparent, TT450,3AS
	Data formats	Link rate: 9600 bps to 19200 bps
		Range:Typical 3 kmto 5 km
		RTCM2.x, RTCM3.x, CMR input / output
		HCN,HRC,RINEX2.11, 3.02 NMEA0183 output
		NTRIPClient,NTRIPCaster
	Data storage	8 GB internal memory
	Power consumption	4.2 W (depending on user settings)
	Li-ion battery capacity	6800mAH
	Operating time on	UHFreceive/transmit (0.5 W): 6 h to 12 h
Electrical	internal battery	Cellularreceive only: up to 12 h,Static: up to 12 h
	External power input	9V DC to 36 V DC
Controller	model	HCE600
	network	4G All Netcom (Mobile Unicom Telecom 2G/3G/4G)
	operating system	Android 10
	CPU	Eight-core 2.0Ghz processor
	LCD screen	5.5'' HD display
	Battery	14 hours of battery life
	Waterproof and dustproof	Full function button
	input method	IP68

Package
Company Profile Shanghai Apekstool was founded and based in Shanghai, specializing in the manufacturing and sales of Surveying equipment. We are dedicated to being a professional provider for survey equipment. Our goal is to provide the best products and excellent service to our customers all over the world.We have been involved in the geographic mapping industry for 10 years. We supply all products with reasonable prices and real-time support upon our own professional experience and high-quality supply chain. Like gnss rtk, total station, theodolite, auto level, rotary laser level, laser level and surveying accessories. We have sold to more than 156 countries and build our stable market.We are proud to guarantee that, with our strong technical background and communication capability, our sales/support engineers are able to answer your most complicated technical questions over the phone in English. That would save so much time for communication. Our business is growing and we invite you to be part of the success.
Customer Case
Multi brand GNSS We focus on Hi target, CHCNAV, EFIX, FOIF, STONEX, SOUTH , KOLIDA ,RUIDE, Unistrong, E-survey GNSS, Geomax , Sunway, Stonex, Hi target and Kolida total station. Including surveying accessories pole , tripod, tribrach, prism and leveling staff.
