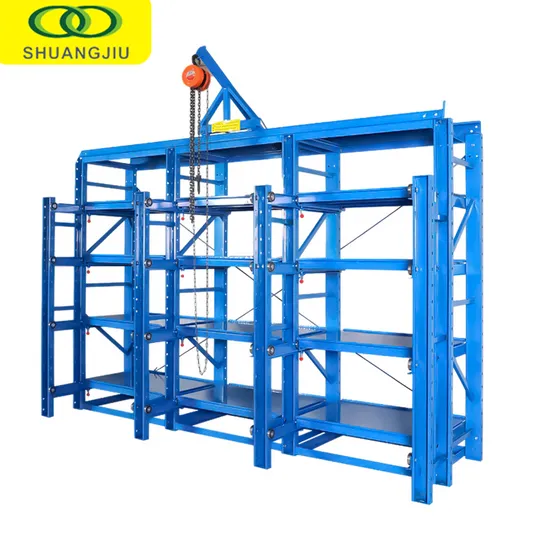

Metal Adjustable Multi-Layer Heavy Duty Mold Shelf

Product Description

Heavy duty drawer type mold rack Heavy duty mold storage rackProduct Description
Shuangjiu factory can produce various shelves, including agv shelves, heavy-duty shelves, smooth bar shelves, mold shelves, warehouse shelves, etc.Different accessories can be matched according to the use scenario of the shelf: steel pallets, stacking racks, workshop guardrails, plastic boxes, workbenches, tool cabinets, etc.

size	2000*3100*600mm
Column	100*50*2.0mmC-type structural column
Laminate	2.0mm patterned plate, both sides of the layer are bent upwards 12mm to prevent slipping
Drawer reinforcement	No. 5 non-standard angle iron, 2 reinforced
Lower connection box	No. 5 non-standard angle iron, connected with M14*25 screws
Top frame	No. 5 non-standard angle iron, connected with M14*25 screws
Slide rail	External slide 3.5mm flat plate bending parts, internal guide rail 3.5mm flat plate bending parts, side U-shaped structure
Bearings	Model 6305, Material: bearing steel
Back Pull	6.5mm iron wire plus M10 turnbuckle
Remark	9 drawers and above equipped with overhead crane and hoist, drawer evenly distributed load 800KG, overhead crane load 500KG

size	2000*3100*600+300mm
Column	100*50*2.0mmC-type structural column
Laminate	2.0mm patterned plate, both sides of the layer are bent upwards 12mm to prevent slipping
Drawer reinforcement	No. 5 non-standard angle iron, 2 reinforced
Lower connection box	No. 5 non-standard angle iron, connected with M14*25 screws
Top frame	No. 5 non-standard angle iron, connected with M14*25 screws
Slide rail	External slide 3.5mm flat plate bending parts, internal guide rail 3.5mm flat plate bending parts, side U-shaped structure
Bearings	Model 6305, Material: bearing steel
Back Pull	6.5mm iron wire plus M10 turnbuckle
Remark	9 drawers and above equipped with overhead crane and hoist, drawer uniform load 1200KG, overhead crane load 500KG

Product Case
Detailed Photos
Certifications
Our service
We are theprofessional manufacturer of warehouse racking in China .
All the rack that we produce is customized , We will be happy to give you a quotation receipt of your detailed requirements.Please inform us the listed questions in your inquiry for quick quotation:
A) The warehouse layout plans
B) The size of racking(length*width*height)
C) How many bays you want
D) How many layers for each bay that you want
E) The loading capacity of each layer
F) Choose steel panel or wooden veneer
G) The RAL color you want
FAQ
1. Q: Are you a factory or trading company?
A:we are a manurfacory
2. Q: Where is your factory located? How can I visit there?
A:Our factory located in SuZhou City JiangSu Province ,China ,You can fly to WuXi airport directly. We will pick you up on WuXi international. All our clients, form home or abroad, are warmly welcome to visit us!
3. Q: What is the term of payment?
A: 1) T/T payment. 2) LC
4. Q: What is the raw material of your products?
A: As general, the raw material of steel code is Q235.
5. Q: Which port will be used as loading port?
A:Shanghai port.
6. Q: What is delivery times?
A: It depends on the order quantity and commodity types
7. Q: Are samples available?
A: Yes. Short sections of samples could be provided, they are free of charge, but international courier costs to be borne by clients.
