Automated Feed Delivery System for Intensive Hog/Poultry/Rabbit Farming with Galvanized Sheet Silo

Product Description

Product Description
Automated Feed Delivery System for Intensive Hog/Poultry/Rabbit Farming with Galvanized Sheet Silo

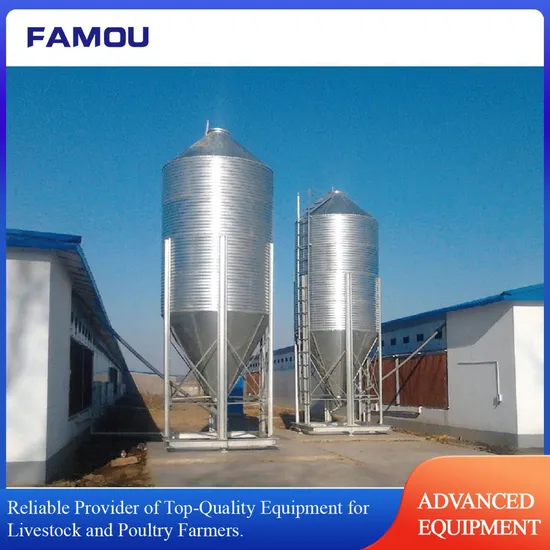

Product Description for Silo:
1.275g per square meters double-sided high zinc layer, corrosion resistant, and long service life
2. The translational flip cover structure ensures that the feed cart can freely feed at 360 degrees
3. The ring and lower cone plate are equipped with observation holes for easy viewing of the feed level in the silo
4. Anti slip design for climbing stairs, safer
Product Parameters

Tonnage(0.65t/m³)	Capacity(m³)	Legs	Layers of Ring Sheet	H	h	A	B
2.9	4.6	4	1	4060	1000	1834	1296
4.4	6.9	4	2	4940	1000	1834	1296
6.0	9.2	4	3	5820	1000	1834	1296
7.4	11.4	6	1	4610	1000	2750	1375
10.8	16.6	6	2	5490	1000	2750	1375
14.1	21.8	6	3	6380	1000	2750	1375
17.5	27	6	4	7320	1000	2750	1375
16.2	24.5	8	1	5790	1000	3668	1403
22.2	33.8	8	2	6670	1000	3668	1403
28.3	43.1	8	3	7550	1000	3668	1403
34.3	52.4	8	4	8430	1000	3668	1403

Chain Disk Feed Line Delivery System: Qingdao Famou is your ultimate destination for top-notch automatic feed line equipment.
Chain Disk Feed Line Delivery System primarily INCLUDES for Piggery:
Automated Feed Delivery Solution for Chicken Farm:
Automated Feed Conveying Scheme for Rabbitry
Company Profile
Qingdao Famou Machinery Co., Ltd., based in China, is a paragon of excellence in providing holistic solutions for husbandry farms. Our diverse product range features cutting-edge automated breeding equipment, including advanced climate control systems, precision feeding systems, robust pen systems, efficient drinking water systems, state-of-the-art Internet of Things systems, and eco-friendly protection systems.
With over 15 years of unwavering dedication in the husbandry sector, the core team at Qingdao Famou is renowned for its superior quality products, competitive pricing, timely deliveries, and stellar service, earning us an impeccable reputation industry-wide.
For any inquiries, please share your specifications, and we will swiftly offer you our most favorable terms.Join us in our journey to achieve COMMON GOALS collaboratively!We eagerly anticipate your inquiries and look forward to welcoming you at any time!
