China Haichen Automatic High Performance 460ton Injection Molding Machine

Product Description

China Haichen automatic high performance 460Ton injection molding machine
Product Description

Haichen Servo energy-saving 460Ton injection molding machine is designed to achieve significant energy savings by utilizing servo motor applications.
Unlike ordinary engines, the flow rate and speed of the oil pump in a servo engine can be adjusted according to the requirements, effectively reducing energy consumption.
In contrast, ordinary injection molding machines run continuously, even when the machine is not in motion, leading to constant motor rotation.
A servo injection molding machine, on the other hand, utilizes power only when necessary for different actions. Consequently, when the machine is not moving, the servo motor completely stops, resulting in energy savings.
Product Parameters

INTERNATIONAL CLASS NO		HCK460
INJECTION UNIT
		A	B	C
Screw diameter	mm	75	80	85
Screw L/D ratio	L/D	23.5	22	20.7
Shot volume(theoretical)	cm3	1833	2086	2355
Injiection weight(ps)	g	1668	1989	2143
	oz	58.8	66.9	75.6
Injection pressure	Bar	1940	1700	1512
Injection rate	cm3/s	457	520	587
Plasticizing capacity	g/s	54	60	71
Screw speed (Max.)	r/min	140
CLAMPING UNIT
Clamping force	kN	4600
Space between tie bars(W×H)	mm	820×770
Platens size	mm	1180×1130
Opening stroke	mm	810
Min.Mold height	mm	300
Max.Mold height	mm	830
Distance between platens(daylight	mm	1640
Ejector stroke	mm	220
Ejector force	kN	120
OTHERS
Systerm pressure	Bar	175
Pump motor	KW	54
Heating power	kW	31
Oiltank cubage	L	600
Machine dimension(L×W×H)	m	8.6×2.0×2.9
Machine weight	t	18

Our Advantages



CLAMPING UNIT
1. Small diameter positioning hole, enhance clamping force of die cavity. 2. T - groove and screw hole are used in the formwork. 3. Green column bolding is enhanced compared to the same tonnage model. 4. European design style wide plate large modulus 5. The bottom of the template is enlarged, and the large-area contact runs smoothly. 6. The mold shifting stroke is increased, which is suitable for deep cavity products.
INJECTION UNIT
1. Double rod injection structure, injection more stable.
2. Injection cylinder and drive shaft integrated to ensure the injection mechanism concentricity and straightnes.
3. Injection adopts high precision linear guide rail to reduce the load of storage stable back pressure.
HYDRAULIC UNIT 1. Adopt imported multi-layer steel wire hose, withstand high pressure 42MPa 2. High pressure hose for oil pipeline adopts H-type interface.

3. Large space servo electric cabinet heat dissipation effect is good. 4. Two groups of convection cooling fan effect is better.

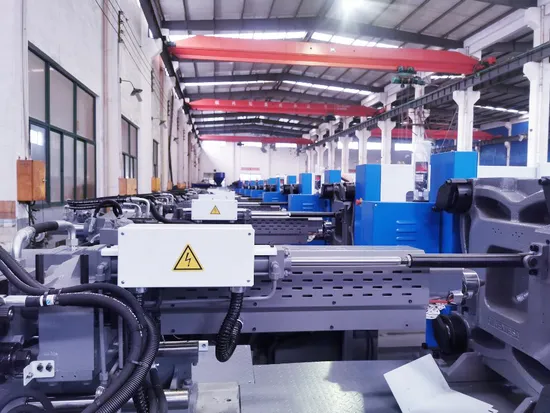

Company Profile

Location: Ningbo,Zhejiang, China
Company type: Manufacturing
Year founded: 2005
Main product: Plastic Injection Mold, Plastic Injection Molding Machine from 50T-3000T The machines have high rigid structure and equipped with imported hydraulic and electrical elements, It also uses mixing metal screw head in order to have excellent plastifying performance and it's suitable for plastic injection molding products. We can provide the following services:

One-stop solution: complete solution from mold design to machine configuration.
Technical Support: Provide online and engineer support to ensure customer's production needs.
Fast delivery: average delivery time is 15 days.
After-sales service: provide comprehensive pre-sales, in-sales and after-sales service.
