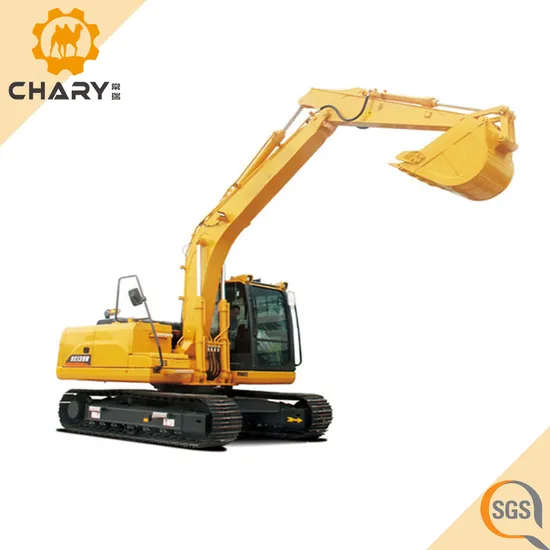

Shantui Official Manufacturer Long Life Se70-97 Ton Crawler Excavator

Product Description

Our company will offer you the high quality products with a low price, quick delivery,and professional after-sale service.

ENGINE	Model	Kubota V3307T
	Type	Water-cooling,turbo charging
	Displacement	3.3 L
	Power output	48.9kW/2200 rpm
	Maximum torque	263.1NM/1400rpm
HYDRAULIC SYSTEM	Pump	Imported
	Type	Variable plunger pump
TRAVEL SYSTEM	Travel motor	Variable axial piston motor
	Travel brakes	Lubricated double-disc
	Gradeability	70%
OIL CAPACITY	Fuel tank	120 L
SWING SYSTEM	Brake	Pressure Release Mechanical Braking
	Swing speed	11 rpm
BUCKET	Bucket capacity	Backhoe bucket 0.32m³(SAE)
	Number of bucket teeth	4
	Bucket width	860 mm
	Arm length	1.65 m
	Maximum digging reach/Maximum digging reach at ground level	6.36m /6.205 m
	Maximum digging depth/height	4.12m / 6.945 m
	Maximum dumping height	4.895m
	Minimum swing radius	2.04 m

ITEM	UNIT	SE60	SE70	SE80	SE130	SE210
Rated power	kW/rpm	35.5/2200	9/440	3/110	31/793	112/1950
Engine		YANMAR 4TNV94L-SFN	B3.3	B3.3	B3.9-C	B5.9-C
Type		4-cylinder inline	4 cylinders inline	4 cylinders inline	4 cylinders inline	6-cylinder inline
Bore×stroke	mm	94 x 110	95×115	95×115	102×120	102 x 120
Displacement	L	3.054	3.3	3.3	3.9	5.9
Cooling		Water-cooled	Water cooled	Water cooled	Water cooled	Water-cooled
Air filter		Dry air filter	Dry air filer	Dry air filer	Dry air filer	Dry air filter
Fuel tank	L	110	170	230	238	360
Throttle control		Manual-/ electronic-controlled	Electric control	Electric control	Electric control	Manual-/ electronic-controlled
Operating weight	kg	5850	7100	7800	12800	20500
Bucket width	mm	769	804	820	980	1189
Dozing capacity	m3	0.22	0.28	0.32	0.55	0.9
MODEL	UNIT	SE220	SE240	SE270	SE330	SE360
Rated power	kW/rpm	112/1950	133/2000	133/2000	186/2200	186/2200
Engine		B5.9-C	B5.9-C	B5.9-C	6C8.3	6C8.3
Type		6-cylinder inline	6-cylinder inline	6-cylinder inline	6-cylinder inline	6-cylinder inline
Bore/stroke	mm	102 x 120	102 x 120	102 x 120	114×134.9	114 x 135
Displacement	L	5.9	5.9	5.9	8.3	8.3
Cooling		Water-cooled	Water-cooled	Water-cooled	Water-cooled	Water-cooled
Air filter		Dry air filter	Dry air filter	Dry air filter	Dry air filter	Dry air filter
Fuel tank	L	360	360	360	600	600
Throttle control		Manual-/electronic controlled
Operating weight	kg	21600	24100	27200	32900	35700
Bucket width	mm	1189	1259	1450	1372	1551
Bucket capacity	m3	1.2	1.2	1.3	1.4	1.6

Technical characteristics
1. Kubota V3307T engine, in line with the national emission standards, energy saving and environmental protection, low noise, strong power, high adaptability of the plateau; aluminum parallel radiator, heat dissipation area, good heat dissipation;
2. World-renowned brand imported hydraulic components, the use of constant power, electricity proportional control of the load-sensitive hydraulic system, according to the load demand to provide pressure and flow, so that the energy loss to a minimum, good coordination of action;
3. Intelligent electronic control system with independent intellectual property rights, embedded GPS module, GPRS module, remote monitoring and two-way transmission of data, real-time capture of the machine running state; throttle control is rapid and accurate; the use of non-linear multi-dimensional optimization of power control, improve work efficiency , Reduce fuel consumption. Preset P (Overload), E (Economy), A (Auto Control), B (Breaker) operation mode, the user can choose the operating mode according to the actual working conditions. Friendly interface, easy to operate;
4. Comfortable operation space, wide field of vision, according to ergonomics cab interior color effective with the manipulation of the rational layout of the device, high-performance shock absorber, vibration isolation, low stiffness, vibration, shock absorption performance , Thus ensuring the user's handling comfort;
5. Lengthen the widening of the track gauge, enhanced work device, the rational layout of the various components, making the machine safe, stable and reliable;
6. Streamlined design, full mold electrophoresis treatment of the cover, high rigidity, good weather resistance.
WHY CHOOSE US?
Experience
10 years experience of production,sales,research and development in the field of special trucks. Specialization
We can produce according to your demand, the material,the size, the color and the logo is optional for you. Good quality
Has solid technology, advanced equipments ;Reliant quality and flexible modes of operation also have strict quality control system and passed the iso9001-2008 and the 3c (china compulsory certification),with SGS,BV certifcate as well. Chassis supply
We have a very good long term cooperation relationship with chassis manufacturer, Such as SINOTRUK, BEIBEN, FAW, FOTON, , SHACMAN, SHANTUI, CIMC, DONGFENG and so on.
OUR SERVICE
(1) More than 300 workers ,large and advanced production;
(2) Have professional engineer,can offer the best solutions;
(3) With keeping good relation with SINOTRUK, FOTON, , DFAC, FOTON, SHACMAN chassis factory.
(4) Build strict QC team to guarantee the quality;
(5) Own good sales team, can offer warm follow-up service.
(6) Spare Parts Supply:
We have our own spear parts departments,have strong production and distribution capability. We can satisfy your demand within 2-7 days. We always do our best to solve the problems, and put our customers' interests in the first place. And We can Supply Spare Parts For Many Brands, Such as SINOTRUK, BEIBEN, FAW, FOTON, , SHACMAN, SHANTUI, CIMC, DONGFENG and so on.
Q1.How to purchase the trailer truck from your company?
You can choose the model from our website, also you can tell our sales manger your specific requirements and we will recommend the suitable model to you. After confirming the model and price, we can sign the contract.
Q2.How to ensure product quality?
Firstly,we passed the international quality system certification. Secondly, Made in China Group has conducted field certification for our factory. Finally,You can entrust third party individuals or organizations to inspect our products before delivery.

Q3.How to visit your factory?
After you arriving at China, you can fly to Qingdao airport. Qingdao airport is located in Qingdao City, Shandong Province. Our driver will meet you at Qingdao airport and take you to our factory by car.
Q4.How can we guarantee quality? Always a pre-production sample before mass production.Always final Inspection before shipment;
Q5.What can you buy from us?
Trucks,Trucks Spare Parts,Construction Machinery.
If you are interested in any of construction machinery for sale,please feel free to contact me. Also, welcome to China and visit our construction machinery factory for construction machinery price or to discuss more detail
