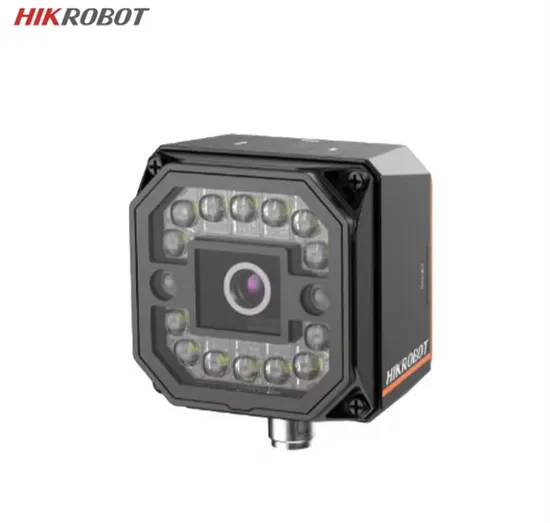

Hikrobot Sc3000 1.6MP 6mm Focal Length Vision Sensor Industrial Smart Camera

Product Description

Key Feature
Adopts embedded hardware platform for high-speed image processing.
Adopts built-in positioning and measurement algorithms to detect object's existence, quantity, location, etc.
Multiple IO interfaces for input and output signals.
Multiple indicators for displaying device status.
Adopts light source to ensure uniform brightness in the illuminated area.
Supports multiple communication protocols, including Serial Port, TCP, UDP, FTP, Profinet, Modbus, etc.
Recommend Products

Model	Model Number	MV-SC3016M-06M-WBN	MV-SC3016C-06M-WBN
	Name	6mm lens 1.6MP SC3000 vision sensor
Tools	Visual tools	Counting: spot count, edge count, pattern count, contour count. Defects: Abnormal detection. Yes No: No circles, no lines, no spots, no edges, no patterns, no contours Positioning: calibration, positioning, position correction. Logic: branch control, conditional judgment, logical judgment, combination judgment, character comparison, variable calculation. Measurement: Line angle, diameter measurement, brightness average, contrast measurement, width measurement, point line measurement, grayscale area, line angle, pitch measurement. Recognition: character recognition, code recognition, registration classification, registration target detection. Deep learning: object detection and classification.
	Solution capability	Support solution import/export, up to 32 solutions and 40 modules can be stored
	Communication protocols	RS-232,TCP,UDP,FTP,PROFINET,Modbus,EtherNet/IP
Camera	Sensor type	CMOS, global shutter
	Image element size	3.45 µm × 3.45 µm
	Target surface size	1/2.9"
	Resolution	1408 × 1024
	Maximum acquisition frame rate	60 fps
	Dynamic range	71.4 dB
	Signal-to-noise ratio	41 dB
	Gain	0~15 dB
	Exposure time	16 μs~1 sec
	Pixel format	Mono 8
	Black and white/color	Mono	Color
Electrical Characteristics	Data interface	Fast Ethernet(100Mbit/s)
	Digital I/O	17-pin M12 interface provides power supply, Ethernet, digital IO, serial functions: 2 input signals (Line0/1), 3 output signals (Line5/6/7), 3 configurable inputs and outputs (Line2/3/4), 1 external button input (BUTTON) NPN or PNP type of output signal can be matched
	Power supply	24 VDC
	Typical power consumption	48 W@24 VDC
Structure	Lens interface	M12-mount, mechanical focus
	Focal length	6 mm
	Lens hood	Transparent lens hood, optional semi-polarized lens hood or fully polarized lens hood
	Light source	14 LEDs: white (default factory) / red / blue / near infrared
	Indicator light	Power indicator PWR, network indicator LNK, status indicator STS, result display indicator OK/NGPower indicator PWR, network indicator LNK, status indicator STS, result display indicator OK/NG
	Dimensions	65.2 mm × 65.2 mm × 47 mm
	Weight	approx 280 g
	IP protection level	IP67 (with properly installed lenses and cables)
	Temperature	working temperature 0~50ºC, storage temperature -30~70ºC
	Humidity	20%~95%RH non-condensing
General Specifications	Software	SCMVS
	Certification	CE, FCC, KC
