High Quality Vacuum Press Machine Thermoforming Machine 3D Laminating Membrane Press PVC Film Machine

Product Description

Equipment parameters

No.	Item and description	Technical parameters
1	Model	HM B3602
2	Heating plate dimension	3,600 mm x1,500 mm
3	lnstalled Power Supply	Approx. 50 kW
4	Chamber Pressure Max	≤0.6 Mpa
5	Vacuum Pressure	≥-0.095 Mpa
6	Pressure Chamber Height	65 mm
7	Operating voltage	380V/50 Hz
8	Upper aluminium heating plate	oil-electric

Products Description

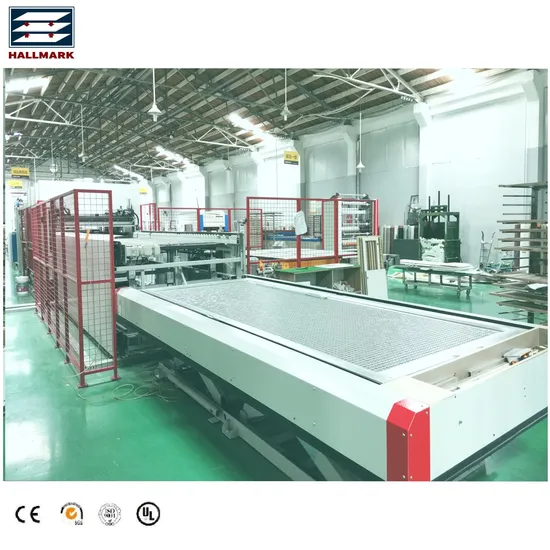

3D Laminating Membrane Press Machine

Equipment Specification
Positive and negative pressure comparison negative pressure machine advantages:
1. The operating temperature of positive and negative pressure is low, and the degree of discoloration of the film skin is small. The negative pressure machine is heated and baked at high temperature, and the film skin discoloration is serious.
2. Positive and negative pressure makes the four corners of the workpiece basically have no drawing angles. It uses a silicone plate to press down with a film, so there is no such thing as a drawing angle. If the temperature of the negative pressure machine, the distance from the ornaments, and the suction speed are too high, it will form a pull angle, which is time-consuming, laborious, troublesome, and prone to waste.


3. The degree of deformation of the workpiece made by positive and negative pressure is small. The positive and negative pressure itself is to press down the workpiece by pressure to make it flat. In addition, the temperature is low, so the probability of deformation is even lower. 4. Positive and negative pressure are 3 kinds of pressure to press the film skin, and the probability of film peeling is very low. The negative pressure machine has only one kind of negative pressure suction film skin, if the temperature is not well polished, it will open the edge. 5. The amount of glue sprayed by positive and negative pressure is much less than that of negative pressure machines. As long as there is a little glue, it can stick.

Packaging and Delivery

Certifications

Exhibition experience

FAQ
1. Rich experience and professional design
We have 15 years experience in flooring industry,also has many years exporting experience. Each equipment
location,passage will be designed reasonably to meet safety production.
2. Competitive price
HallMark has own factory,with the same configuration,the price is competitive.And we are familiar with the
Chinese market,our suppliers provide high-quality cost-effective accessories.
3. Timely after-sale service
We have over 15 skilled technicians offer after-sale service, will be sent to the customer's factory to assist in
the installation and debugging of the flooring production line until it runs well,and asked for quick responses to
customer questions within 8 hours.
4. One-stop solution
HallMark provide one-stop service, including market analysis and professional technical consultation,whole
SPC flooring production line, raw materials ,equipment installation, personnel training,Professional after-sales
service team,Renovation of old equipment,make turnkey projects.
5. Quality control
Strict quality control of equipment in production and before leaving the factory, and a complete quality
management system for purchased parts.Customers are always welcome to make videos or come to the
factory to know the production status.
6. Customized
HallMark's engineer team will design the layout according to customer's factory space and production requirements.
