CNC 1325 Stone 3D Engraving Machine

CNC 1325 Stone 3D Engraving Machine

US$5,560.00
1-2 Set
US$5,410.00
3-4 Set
US$5,260.00
5+ Set

Basic Info.

Model NO.
SSR-1325S
Function
Line Engraving, Lettering, Carving, Engraving
Application Material
Marble, Granite, Concrete Curb,Glass, etc
Automation
Automatic
Control
CNC
Motor Power
High Power
Engraving Head Speed Adjustability
Wide Adjustable Range
Certification
CE
Current
AC
Application
Glass, Ceramics, Decoration, Advertising, Art & Craft, Stela & Gravestone, Stone Industry
Customized
Customized
Machine Model
SSR-1325s
Working Area
1300mm*2500mm*400mm
Table Size
1550mmx2920mm
Machine Structure
Welded Steel
Table Structure
Aluminum T-Slot
Spindle Power
4.5kw, Water Cooling
Transport Package
Woonden Package
Specification
1300mm*2500mm*400mm
Trademark
SSR CNC
Origin
China
HS Code
84649090
Production Capacity
300 Sets/Month

Product Description

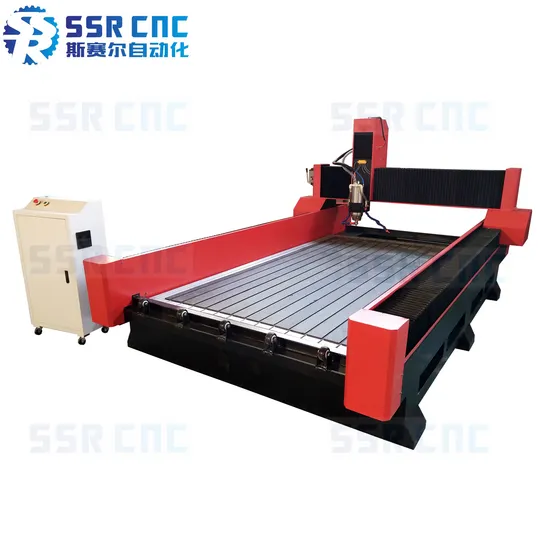

CNC 1325 Stone 3D Engraving Machine SSR-1325S
Features
1.The 1325 stone engraving machine bed is made of a thick steel pipe and processed in a high temperature way avoid deformation, thus the bed has good rigidity and high strength.
2.The 3D marble cnc engraving machine is equipped with imported square linear guides with high accuracy, can withstand a large load and provides a long service life.
3.The stone cnc router table is a water tank with a cooling system. The table surface is coated with an aluminum profile with T- grooves to protective plastic.
4.X Y axis use helical gear rack to increase the traction.
5.The dust-proof cover is installed on the X, Y, Z axis, which prevents stone chips and cooling water falling onto them.
6.High power spindle, long service life, stable operation and strong starting characteristics, high torque, which can provide fast processing and higher efficiency.
7.Good electromechanical design, strictly selected tje electrical parts to minimize machine breakdown.
8.On the machine, all cables use a special highly flexible cable,and reciprocating motion can reach 10 million times.
9.Long warranty time(24 months)
Product Parameters
Machine Model
SSR-1325S CNC Stone Engraving Machine
Working Area(X, Y, Z)
1300mm*2500mm*400mm
Table Size(X, Y)
1550mmx2920mm
Machine Structure
Welded steel
Table Structure
Aluminum T-slot
Guides of X Y Z
Taiwan imported rail guides
Transmission of X ,Y
High precision helical gear rack
Transmission of Z
Ball screw
Spindle Power
5.5KW, water cooling
Collet
ER25 (diameter 3.175mm, 4mm, 6mm, 8mm, 10mm, 12mm, 12.7mm)
Spindle Power
24000R/min
Max. Travelling Speed
25000mm/min
Max. Working Speed
15000mm/min
Control System
NC-STUDIO
Positioning accuracy
≤0.01mm
Processing accuracy
±0.01mm
Motor
Powerful 86 SERIES 450B Stepper Motor
Driver
Powerful LEADSHINE DMA860H Step Driver
Auto Lubrication System
With
Water Pump
With
Work Zero Sensor X, Y, Z axis
With
Cutter Height Sensor
With
Wave Filter
With
Dust-Proof Cover
With
Working Voltage
AC380V,50HZ
Net Weight/Gross Weight
1140KGS/1280KGS
Package Size
3510mm*2280mm*1810mm
Warranty
24 months
Optional
-6.0 kw, 7.5 kw water cooling spindle
-The rotating device (fourth axis) diameter is 100mm, 160mm, 200mm, 250mm, 320mm
-Servo motor and servo driver
-Can be customized according customers' special requirements

Detailed Photos

Working Samples
Applicable Areas:
The machine is multifunctional,can be used in various industry, for example: the production of monuments, fireplaces, souvenirs, sculptures, the manufacture of models for foundry, the manufacture of advertising, models of architectural structures and other products made of stone and other materials of high hardness
Applicable Materials:
Granite, marble, basalt and other types of stones, tiles, glass, ceramic, metals, as well as wood, plastic and many other materials.
Different Models
We have different models optional, you can choose the suitable machine model according to your materials size.
Special order is accepted!
SSR-1015D(1000mm*1500mm*300mm) SSR-1220D(1200mm*2000mm*300mm) SSR-1318S(1300mm*1800mm*380mm)

SSR-1325S(1300mm*2500mm*380mm) SSR-1515-2(Two heads) SSR-1325S ATC(with auto tool changer)

Packaging & Shipping
1. We use international standard exporting plywood package, which is fumigation-free
2. We offer item FOB, CIF, CFR, DDU, EXW by sea:
FOB: Customer need to find shipping forwarder by himself, take machine from China sea ports CIF: We will find shipping find shipping forwarder for customer, arrange sea delivery for customer from China sea port to customer's country sea port, buy sea insurance for customer CFR: Under CFR item, customer need to buy sea insrance by himself, other is sampe as CIF item DDU: Under DDU item, we arrange machine delivery from our factory address to customer receiving address EXW: Customer need to arrange take machine from our factory and arrange all from China sea port to customer's country sea port 3. We can also offer delivery by air for small package machine
