Waste Iron Barrel Drums Plastic Paint Bucket Tyre Wood Aluminum Can Shredder Machine Metal Scrap Recycling Machine

Product Description

Product Description Product Introduction

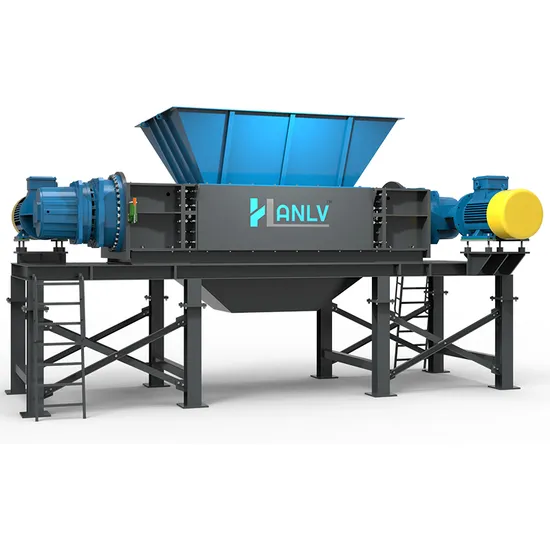

The Double-Shaft Shredder is a widely used industrial shredder with low speed, high torque and high throughput, designed to efficiently process a wide range of materials. It can be equipped with different components or work with other stages of shredders depending on the material and final size, reducing the material to the required size.
The double-shaft shredder is a relatively extensive shredding machine, suitable for the preliminary processing of many materials. Based on the nature of the material and the required output, the power required can be initially estimated. Generally speaking,it is divided into single motor and dual motors.
Single motor is suitable for fragile materials with low power requirements. Dual motors are equipped with dual reducers, and ZSY or planetary reducers can be selected according to needs.
It is characterized by fast discharging and high efficiency, which can meet general crushing needs.
HLV has designed different ranges of double-shaft shredders for common applications with different components (reducers, blade sets, etc.) to guarantee a wide range of material adaptability. At the same time, we have the ability to custom-built machines to suit specific material and input/output requirements.

This article introduces the HLP series double shaft shredder.

Which Materials can be Processed?
--- Plastic Waste: Plastic bottles, plastic jugs, plastic buckets, plastic baskets etc.
--- Electronic Waste: Old hard disk, PCB boards, lithium battery,keyboards, mice, mobile phones, CDs, etc.
--- Metal Waste: Iron filings, cans, paint buckets, thin metal materials, etc.
--- Medical Waste: Syringe waste, pharmaceutical waste, small medical devices, latex material waste, discarded masks
--- Paper Products: cartons, cardboard, newspapers, books, documents, brochures, wrapping paper, etc.
---Kitchen Waste: Fruit and vegetable waste, kitchen waste, farmer's market waste, etc. . . . . . . . .
Discharge Effect
Product Highlights
1.Alloy steel DC53 moving blade. Each blade can be rotated and reused four times;
2.Moving blade V-shaped arrangement. Two edge blades on th both ends of rotating shaft to prevent material side accumulation;
3. microcomputer (PLC) automatic control, set to start, stop, reverse and overload automatic reverse control.
4.Install shock absorbers to make them shred smoothly;
5. The device has a low speed, high torque, low noise, dust features can meet environmental standards.
6.Thickness and number of claw cutter knife can be replaced according to different materials.
Technical Data Technical Parameters

Model	Motor Power (KW)	Crushing Chamber (mm)	Blade Dimension (mm)	Rotation Speed (rpm)	Machine Dimension (mm)
HLP710	30+30	690*1000	φ330*30	13~20	3150*2150*2500
HLP812	45+45	790*1200	φ370*30/60	13~20	4100*2300*2800
HLP912	55+55/75+75	980*1200	φ480*60	10~20	4600*2600*2900
HLP1016	90+90/110+110	1070*1600	φ550*60	6~15	5630*3160*3200
HLP1216	132+132	1200*1600	φ590*60	6~15	5800*3500*3500
HLP1220	200+200	1280*2100	φ650*80	5~12	5800*3500*3500

Product Details

Packaging & Delivery
FAQ
Q:How long is your delivery time?
A:Generally, it will be about 35-40 days after deposit, which also will affected by the actual situation of the project.
Q:What Will We Do If We Have Problems in Machine Working After We Buy the Machine?
A: HANLV has people special for after-sale service,if customers outside China have problems when machine working,just feel free to send us the picture or video to show us,we will give you solutions in 24hours.
Q:Could We Visit Your Factory and Test the Machine?
A: We warmly welcome you to visit our factory anytime,and we are very glad to test our machine with your raw material.
Customer Feedback

Company Profile Company Profile
Hanlv is a new type of enterprise integrating R&D, manufacturing, sales and service of solid waste treatment equipment. In particular, it has extensive experience in metal recycling and plastic&wood &Tire crushing.
Hanlv has many years of experience in the solid waste recycling industry, and its equipment is sold in many countries around the world. Reliable equipment quality is our philosophy.
What do customers need?----This question has always kept us going.
