US$23,500.00 | 1 Piece (MOQ) |

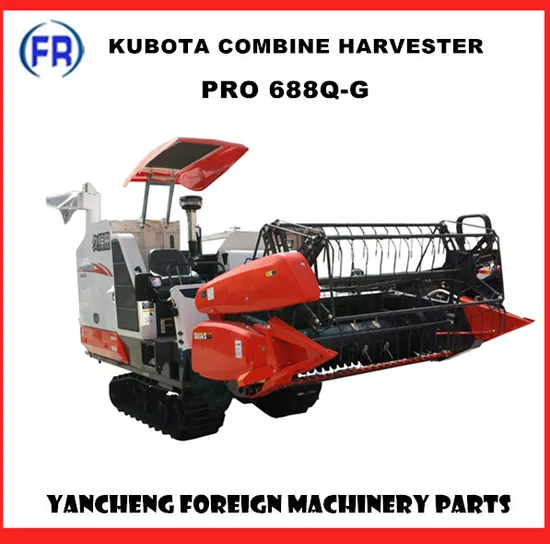

MODEL | 4LZ-2.5(PRO688Q-G) | |
Dimension | Overall length(mm) Overall width(mm) Overall height(mm) | 4860 2295 2765 |
Weight (kg) | 2815 | |
Engine | Model | V2403-M-DI-TE2-CKMS6 |
Pattern | vertical 4 cylinder 4 stroke water-cooled direct injection turbo diesle | |
Cylinder capacity (L[cc]) | 2.434[2434] | |
Rated output/speed(ps[kw]/rpm) | 68[50]/2700 | |
Burnt oil | 0 # diesel | |
Fuel tank capacity(L) | 60 | |
Starting method | starter motor | |
Storage battery(V.Ah) | 12·52 | |
Travel unit | Width*contact length(mm) Centre distance(mm) Average ground pressure(kpa[kgf]/cm2) | 450×1680 1150 18.1 0.19 |
Minimum ground clearance(mm) | 275 | |
Transmission mode | hytrostatic stepless change[HST] | |
Speed grade | stepless vice-speed 3files | |
Running speed (m/s) | low speed:0~0.97; cruising speed:0~1.37;hign speed:0~1.85 | |
Harvest unit | Pull-grain methold Harvesting width(mm) Cutter width(mm) Harvest height(mm) Lodging adaptive(degree) | pull-grain machine 2000 1905 40 (tool nose) < 85 degeree, < 70 degree |
Threshing unit | Threshing system | axial-flow type |
Threshing teeth type Diameter × width(mm) Rotational speed(rpm) | rob teeth Φ620 × 1790 560 | |
Second transmission mode | auger | |
Screening method | vibration sieve.air seperating | |
Concavity net area (4) () | 1.621 | |
Uereal discharge unit | Capacity (L) Cereal ejection port number(piece) | 1000 1 |
Warning lights and equipments | Second screening and vertical transmission Cerealcollection fill up Water temprature Charging of accumulator Engine oil pressure | |
Suitable crops | rice / wheat | |
Operational efficiency (A unit of area/ hour) | 3-8 ( change according to the type of crop) | |
