High Precision And Quality XA7150 Bed Type Milling Machinery

Product Description

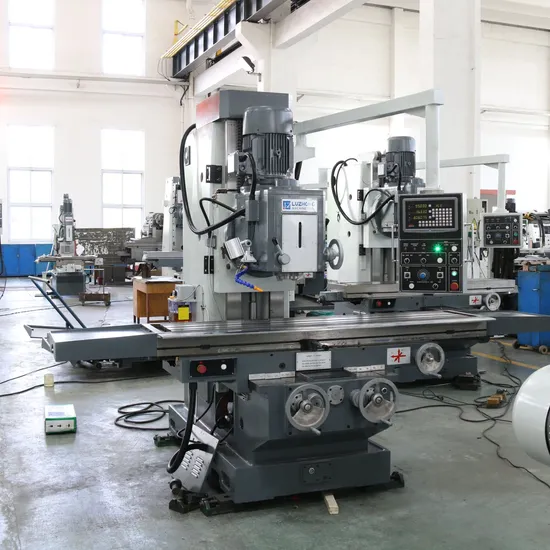

Precision Horizontal Metal XA7150 Universal Manual Bed-type Milling Machine
Product Description
The main performance characteristics:
Using MEEHANITE cast iron,
Using rectangular guide machine is Rigid good,
Work table and guide rail through the ultra audio spark quenching.
Milling head can be rotated 30 degrees,
Hand piece gear transmission, 12 speed change, suitable for high rigidity of the strong cutting.
Application:
This machine is a kind of general metal cutting machine tool.
Spindle taper hole of the machine can be directly or through the attachment installed all cylindrical milling cutter, disc cutter, molding cutter, end milling cutter tool, suitable for processing a variety of small parts of plane, inclined plane, grooves, holes, and other gear. Is a mechanical manufacturing, mold, equipment, instruments, automobiles, motorcycles and other industries of the ideal processing equipment. Product Parameters
Product main technical Specifications:

Specifications	Units	XA7150
Table size	mm	2000x400
Table stroke(X.Y)	mm	1500x500
Vertical travel of headstock	mm	100-650
T-type slot numbers / width /space	mm	3-18-100
Max. load working table	KG	2000
Feed speed	mm/min	20-2000
Rapid feed speed	mm/min	3500
Spindle speed range	rpm	66-1440
Spindle speed step	steps	12
Distance from spindle axis to column guide way	mm	600
Spindle motor power	KW	7.5
Overall dimensions	mm	3000x2285x2340
Machine weight	KG	5000

Detailed Photos
Company Profile
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
