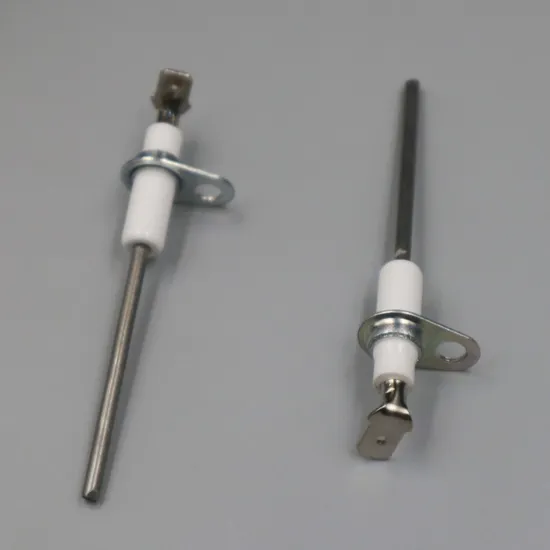

Customized Ceramic Ignition Electrode Ignition Needle for Gas BBQ Grill

Product Description

Product Description
We produce various ignition electrodes, ignition rods, ignition needles, spark plugs, water level electrodes, and flame sensor electrodes according to the client's requests and drawings.Application: Ignition pin for household stove, Hotel commercial ignition stick, Burner ignition stick, Burner ignition stick,Water heater ignition pin, Gas stove ignition pin, Boiler and water heater water level electrode, Various industrial burners and spark plug.Features:A: Ignition electrodes and ionization probes are produced from high-quality materials.The central electrode is generally made of a unique fireproof material, resistant to high temperature and electrochemical corrosion, which can generate multiple points of sparks from the surrounding area, which enhances the ignition ability. The successful one-time ignition will not cause a flameout phenomenon, and the service life is long. The electrode wire can be used at a high temperature of about 1300 degrees. Under normal use, no carbon deposition or high-temperature oxidation will occur, thereby increasing the service life of the product. According to the different needs of customers, the electrode wire can be equipped with: ocr25al5 material, the temperature resistance limit is about 1200 degrees, the use of cr27al7mo2 material will increase the product's life more than 10 times, the temperature resistance limit is about 1350 degrees.K-anthal(1400C). Customers can choose materials according to demand.B:The ceramic part is made of 95% alumina, which is high temperature resistant with a breakdown voltage of 20KV / DC, insulating, high mechanical strength, heat resistance. The ceramic surface is coated with a high temperature glaze. The appearance is exquisite and elegant, and the body is translucent and shiny. The maximum operating temperature is about 1500 degrees.C:The plug connector is made of brass, which has the characteristics of sensitive signal transmission and strong thermal conductivity.D:The assembly and connection method adopts screw-type connection, which has the characteristics of convenient disassembly and assembly, and is firm and reliable.
Product Parameters

Name:	gas ignition oven parts	MOQ	100 PCS
Metal rod diameter	2.6mm,3mm,3.5mm,4mm,5mm	Supply ability	100000PCS / Month
Type	Ignition fittings	Port	Shanghai or Anyport in China
Material	1. Electrode Body-Ceramic,95% Al2O3;Glazing or no glazing 2. Cable-UL1332,UL3573,UL3304,UL3257,UL1911,UL1659, UL10362 and so on. 3. Metal Rod- FeCrAl( Ni80Cr20,cr27al7mo2,0Cr25Al5),withstand 1200-1350C. K-ANTHAL(1400C)	Place of origin	Jiangsu, China (near Shanghai, Yiwu, Ningbo)
Tip	Round or flat	Packing	according to buyer's request with standard export carton/pallet
Holder	With or without; punched or screwed. Stainless Steel Bracket.	Delivery time	30 days upon official order
Temperature Resistance	Ceramic and Rod:≥1200ºC Cable:≤250ºC	Certificate	EU ROHS/REACH/TSCA
Application	Suitable for all kinds of household oven or heat sealing gasket of industrial furnaces and gas BBQ sealing rope	Feature	Eco-friendly
We can design and manufacture as per customers' requirements. Feel free contact us for any specific requirements, also for pictures, drawings and samples of our products. We will try our best to meet your requirements.

Production Flow
Certifications
Company Profile
Jiangsu Fist Special Ceramic Co., Ltd is located in Jiangsu Province, established in 2016. The transportation is very convenient for express, airport and any port in Yangtze River Delta. We near Shanghai, only two hours drive.
Superior geographical location and mature industrial chain of ceramic, we are a manufacturer specialized in developing, producing and selling ceramic materials and products which meet the market demand. We can provide professional OEM & ODM service. Our main products are alumina ceramic, zirconia ceramic, steatite ceramic, cordierite ceramic, mullite ceramic, electronic ceramic, industrial ceramic, daily ceramics, etc. With good quality, reasonable prices and stylish designs, our products are extensively used in machinery, textiles, electronics, automotive, plumbing, seal, humidification, new light source, household appliances, electric heating, solar power and other industries. Good quality and experience service win many customers including domestic and foreign. We warmly welcome new and old customers from all walks of life in the whole world to contact us for future business relationships to achieve mutual success!Contact Us
FAQ
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-30 days if the goods are not in stock or customeriziation, it is according to quantity.
Q: How about the payment terms?
A: T/T or L/C are okay. We can negotiate.
Q: How can you get quotation?
A: Please kindly send me your drawing with technical requirement and demand quantity.
If you don't have the drawing,please kindly courier samples to us.We will quote our best price as soon as possible.
Q: How about the shipping&package?A: The package usually includes bubble wrap, carton, pallent, wooden case, etc. The shipping mode includes express, air and sea transportation. Both we can negotiate and choose the best way.
