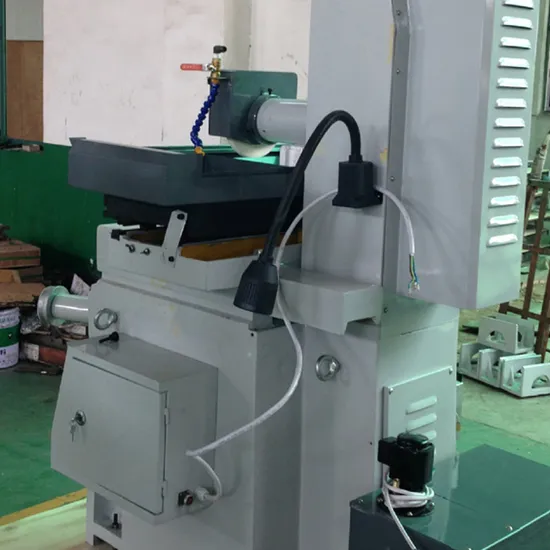

Hot Sale China Manufacturers High Quality Precision Metal Manual Valve Surface Grinder Machine M1022
| US$2,000.00-3,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
M1022
Type
Surface Grinding Machine
Processing Object
Metel
Abrasives
Grinding Wheel
Controlling Mode
Artificial
Automatic Grade
Manual
Cylindrical Grinder Type
Universal Cylindrical Grinder
Precision
Precision
Certification
CE, RoHS, ISO 9001
Condition
New
Table Size
250X540mm
Wheel Size
200X20X31.75mm
Wheel Speed
3360rpm
Surface Roughness
Ra0.32
Motor
1.5kw
Transport Package
Plywood Case
Specification
3490kgs
Trademark
HOYONG-TRD
Origin
Shandong, China
HS Code
8460190000
Production Capacity
10 PCS/Month
Product Description
MANUAL SURFACE GRINDER FEATURES:
1. The machine has reasonable structure, good rigidity, beautiful appearance, convenient operation.
2. Worktable ball track using steel materials for high precision steel balls, abrasion resistance, easily moved and labor saving, and can be greatly improve work efficiency.
3. Former after skidway through careful scraping flower, not only slide smoothly, and wear-resisting, maintain good accuracy, flexible and convenient operation. manual worktable driven by synchronous belt transmission, wear well.
4. The spindle adopts super precision ball bearing P4, after strict selection after the pre pressure measurement, assembled in the greenhouse, and with the labyrinth design completely waterproof, In order to ensure the service life of the bearing and the grinding surface roughness.
5. No vibration, low noise motor spindle.
6. According to the needs of users with a permanent magnet sucker or electromagnetic sucker.
SPECIFICATIONS:
| MODEL | M1022 | |||
| Working table | Table Size (L× W) | mm | 540×250 | |
| Max movement of working table(L× W) | mm | 560×260 | ||
| T -Slot number×width | mm | 1×14 | ||
| Grinding head | Max distance from spindle center to table surface | mm | 420 | |
| Wheel Size(Outer diameter×width×Inner diameter) | mm | φ200×20×Φ31.75 | ||
| Wheel speed | 50HZ | r/min | 2850 | |
| 60HZ | 3360 | |||
| Feed amount | Vertical feed on handwheel | Per revolution | mm | 4.0 |
| Per graduation | mm | 0.02 | ||
| Cross feed on handwheel | Per revolution | mm | 1.25 | |
| Per graduation | mm | 0.01 | ||
| Motor power | Spindle motor | kw | 1.5 | |
| Coolant pump motor | w | 40 | ||
| Working precision | The parallelism of working surface to base level | mm | 300:0.005 | |
| Surface roughness | μm | Ra0.32 | ||
| Weight | Net | kg | 850 | |
| Gross | kg | 950 | ||
| Overall dimension(L×W×H) | mm | 1680x1220x1720 | ||
| Package dimension(L×W×H) | mm | 1200x1400x1940 | ||
