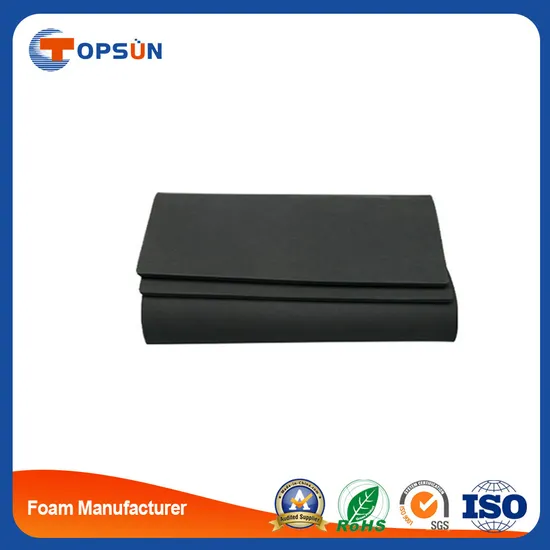

Open Cell EPDM Foam Sheet with One Side Skin for The Automotive

Product Description

Product Description
EPDM Foam(Closed Cell): 110-150kgs/m3
EPDM Foam(Open Cell): 95-100kgs/m3
EPDM Foam or CR Foam Tape with the good glue on it Detailed Photos

Product Parameters
1. OEM service
2. Sample and factory visiting
3. Best quality and price
4. Prompt delivery

Nos	property	Units	Tech requirments	Test Result	Test Method
1	tensile strength	Mpa	/	0.44	GB/T 6344-1996
2	Elongation	%	/	316	GB/T 6344-1996
3	Compression set	%	/	/	GB/T 6669-2001
4	23 Cx72hX25%		/	73.4	/
5	70 CX24hX25%		/	124.1	/
6	Hot air aging (70Cx70h) after		/	/	GB/T3512-2001
7	Tensile Strength rate	%	/	22.7	GB/T 6344-1996
8	Elongation rate of change	%	/	3.5	GB/T 6344-1996
9	Low temperature bend (-40CX24H,180 degree bend sight)		/	No cracks	ASTM-D1050-2008
10	Heat shrinkage (90 degrees feedingx1H) after	%	/	0.8	GB/T 3512-2000
11	Density	G/CM3	/	0.13	GB/T 6343-1995

Application:
Largely Used:
Mechanical seal, Marine and building industry, Container seal, Industrial control box industry;
Providing excellent air tight and waterproof properties, as well as good UV and ageing resistance and a high level of flexibility across a wide temperature spectrum, EPDM foam rubbers can be manufactured a numerous engineering, construction and industrial components such as:
Seals, gaskets, washers and belts for machinery Company Profile
Packaging & Shipping
Topsun, the Professional supplier for the Foams for the large used for Construction/Bluiding,
Marine, Automotive, Insulation, Packing, Shoes and Footwear, Sport/GYM Production.... FAQ
Q: Do you manufacture your own foam?
A: Yes, we do manufacture the foam using our own presses and molds. We have various sizes molds.
Q: Why your price labeled so cheap?
A: We manufacture the foam buns our self, and export directly, no extra fees added.
Q: What is your lead time?
A: Ninety percent of all our orders can be loaded in 15 days.
Q: How much can you fit on a 40 HQ container?
A: Approximately 66m³ for sheets, and 58m³ for rolls.
Q: What is your minimum order?
A: We do not have a minimum order. However, small qty will be waste for the shipping costs.
Q:What are acceptable forms of payment?
A: We accept wire transfers, TT payment, Paypal, Western Union, LC etc.
Q: What densities are available?
A: We stock 60kgs/m³ to 300kgs/m³ densities.
Q: What colors are available?
A: Black mainly; White; Grey; Mint Green; Blue; Yellow; Red; Lavender; Lime Green; and Natural.
Q:Does your material come with skins?
A: Generally no, although some materials are available with skins upon request.
Q: What can be used to cut your foam?
A: Most tools that can be used to cut wood can also be used to cut our foam. These include table saws, band-saws, table routing, water-jet, etc.
Both of them provide excellent protection and shock absorption for packaging applications.
For more info, please feel free to contact us any time, 7 x 24 service !
