3 Pin Singel Row 3.96mm (. 156") Pitch 180° /Vertical SMT Wafer Wire to Board Connector Circuit Board Connectors

Product Description

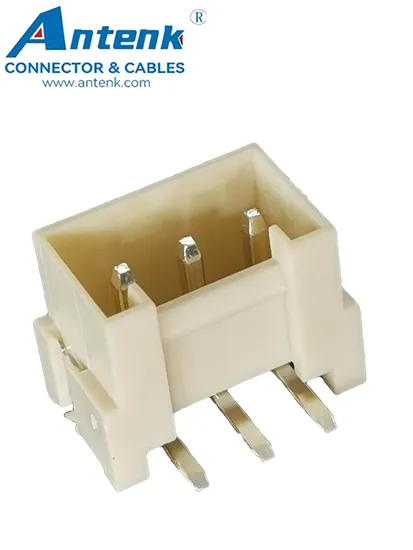

Singel Row 3.96mm (. 156") Pitch 180°/Vertical SMT Wafer Connector
Product Introduction
Antenk's board-to-wire connectors establish the connectivity between wire and a printed circuit board (PCB). They provide robust, modular, compact connector solutions to anticipate and meet the growing demands our customers face.

Product Name	Singel Row 3.96mm (. 156") Pitch 180°/Vertical SMT Wafer Connector 180°SMT Wire To Board Connector Circuit Board Connectors
Connector Type	PCB Connectors /Wire to Board Connectors (Wafer Connector Type) 3.96mm Pitch Wire to Board Connectors, Housing/Wafer/Terminal
	Male
Pitch	3.96mm
Termination Type	SMT
Angle	190° /Straight
Poles	2-40
Material:	Nylon 6T,UL94V-0
Standard Color:	Natural(Beige)
Rated Voltage	300V AC/DC
Rated Current	5.0AMP
Contact Resistance	30mΩ Max
Withstand Voltage	1500V AC/DC
Insulation Resistance	1000mΩ Min
Operation Temperature	-25ºC to +85ºC
Contact Material	Brass/Tin Over Nickel
Solder Tabs	Brass/Gold Over Nickel
Insulator Material	PA6T+30%GF UL94V-0
Scope of application:	used in computer and peripheral equipment, communication products, test instruments, consumer electronics products, automotive industry, medical and electronic products production, aerospace industry in which the device connecting the two active devices, current or signal transmission.

Company Profile ANTENK Electronics Co., Ltd was established in 2004. We specialize in producing precise Board to Board,Automotive Connector, Terminal Block Series ,Battery Connector,Din41612 Connector,Round hole row needle, round hole row mother, IC Socket,Battery Holders Series, Male Pin Headers Series,Female Pin Headers Series, Modular Jack RJ45 Series ,D-Subminiature Connectors Series,Box Header Connector, IDC Socket Connector ,SCSI Connectors Series, Power Signal Connector, Wire to Board Connector, Modular Jack, Terminal Block, Wire Harnesses,Cable Assemblies, I/O Connector. Through 15 years of development, we have grown into a leading manufacturer in Asia. We have passed IATF16949:2016, ISO9001:2008 and ISO1400 Certification as well.
Application Antenk's connector products are widely used in LCD, digital camera, industrial control, mobile storage, household appliances, network communication equipment, motor, automobile and all kinds of precision instruments etc.
