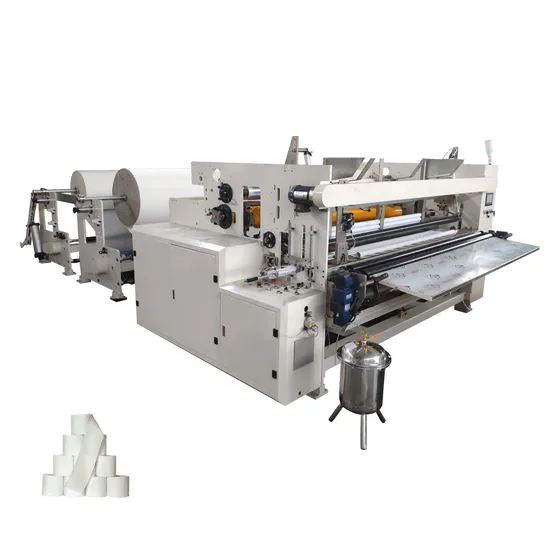

Automatic Toilet Paper Rewinding and Perforating Processing Machine

Product Description

Automatic Toilet Paper Rewinding and Perforating Processing Machine XY-TQ-B Description of the equipment:
The production process is: Unreeling - Embossing - Perforating- Rewinding- Tail-gluing- Edge trimming--- Automatic core loading .
Technical data:

Machine Model	1092	1575	2000	2200	2400	2600	2800
Width of jumbo roll (mm)	1200	1750	1950	2150	2350	2550	2750
Finished Products Diameter	Φ80~280mm (Tightness can be adjustable)
Finished Products Inner Diameter	Φ32~60 mm
Jumbo roll diameter (mm)	Φ1200 (Other sizes please point out)
Jumbo Roll Inner Diameter	76.2 mm (other sizes please point out)
Perforation distance (mm)	4 blade,90~160mm; 2 blade,180~320mm;
Production speed	200-230 m/minute
Parameter set	Touching-screener Multi-menu Man-machine Interface Operation System
Controller	PLC program
Mechanical driving	Driven by stepless regulator to guarantee the precise length of final products.
Air pneumatic system	3 Pa (air-compressor), the minimum pressure 5kg/cm2 pa (prepared by buyer)
Power	4kw-10kw (380V 50Hz)
Overall size (L×W×H)	depend on the model
Weight of equipment	About 4-12T
Chosen items (Should be ordered separately)
Embossment	Single embossment, Double embossment, Edge embossment
Embossment down roller	Paper roller, rubber roller
Jumbo roll stander	1-3 plies
Rewinding unit	Non-core and core unit
Printing unit	Single color heliotype printing unit
Other special request for machine is welcome

Features:
1. This automatic small toilet paper roll making machine
is designed with computer control system, fully automatic in production process, the function is complete and the production speed is high.
2. It can automatically change the core, spray the glue and seals without stopping the machine and also automatically raise and lower speed when exchanging the core.
3. When change the core, the machine will be tight first and loosen later to avoid dropping off the roll core.
4. Equipped with automatic alarm to indicate filling up of core pipe. The machine will be automatically stopped when there is no core pipes.
5. Automatic alarm for breaking off of paper.
6. Equipped separate tension control for each unwinding jumbo roll.
7. It is convenient to change the feature to produce any other core pipe winding.
8. Left paper remind after sealing of product for convenient use.
9. Jumbo roll stand is installed by pneumatic.
Why needs embossing? (Pattern selected by the customer)
Embossing enhances hand feel and absorbency, meaning fewer tissue paper used per hand dry.
Both two-Ply bath tissue rolls are embossed for higher absorbency and comfort.
Packaging & Shipping Tidy the machine and spray the inhibitive oil to protect the machine while shipping
Will be separated into parts and packed in Standard Export Packing Wooden Case.
Company Information Welcome to contact us to get more details !
We can design the machine according to your request.
Fujian Xinyun Machinery Development Co.,Ltd is good at Paper Converting Machinery Manufacture.
Paper Converting Machinery Manufacture.
Professional manufacturer of:
1)Toilet Paper Machine
2)Facial Tissue Machine
3)Napkin Paper machine
4)Hand Towel Paper Machine
5)Pocket Tissue Machine
6)All kinds of Tissue Paper Cutting and Packing Machine and another Household Paper Equipments Production Line.
We will provide good quality of machine with lowest price, if you buy the machine from us.
